MIRROR (AN650AK4 / AK5)

LEVERS - HANDGRIPS (MODEL K3 / K4) FOR SUZUKI BURGMAN 650 2004

LEVERS - HANDGRIPS (MODEL K5)

Item numbers

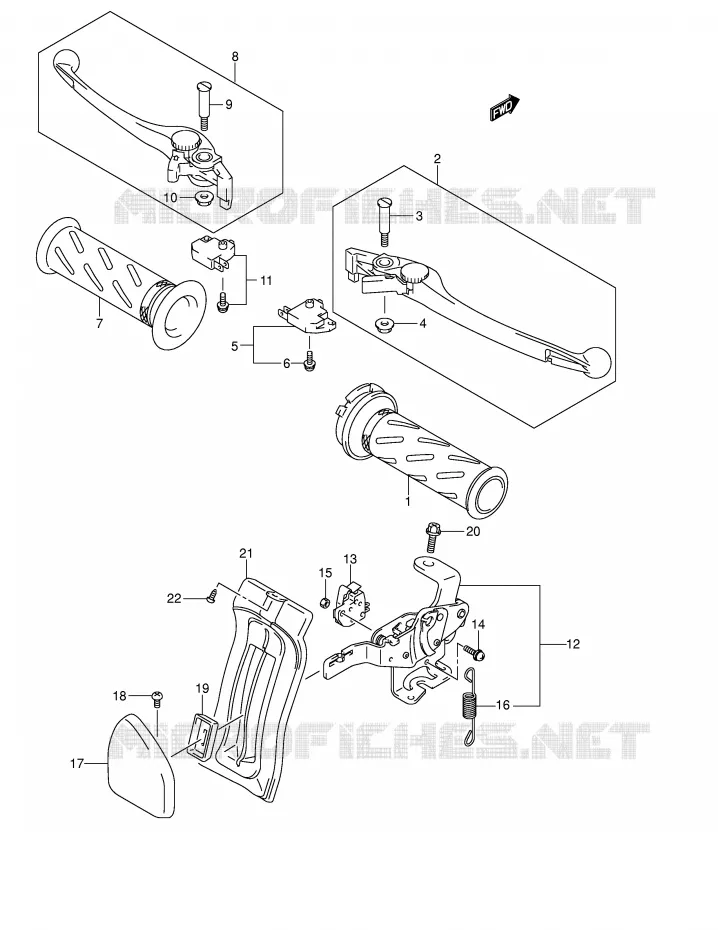

LEVERS - HANDGRIPS (MODEL K3/K4) Suzuki SCOOTER 650 BURGMAN 2004 AN650K4(E2)
1
2
2
3
4
5
5
6
7
8
8
9
10
11
11
12
12
13
13
13
14
15
16
17
18
19
20
21
22
1
GRIP,THROTTLE
GRIP, THROTTLE

57110-46E01-000  

57110-46E02-000
 5711046E01000

Unit Price

2
LEVER ASSY, BRAKE

57300-10G10-000  

57300-10G32-000
 5730010G10000

Unit Price

2
LEVER ASSY,BRAKE<br />LEVER ASSY, FRONT BRAKE
LEVER ASSY, BRAKE
LEVER ASSY, FRONT BRAKE

57300-33E01-000  

5730033E01000
Not available
3
BOLT,LEVER PIVOT<br />BOLT, PIVOT
BOLT, LEVER PIVOT
BOLT, PIVOT

57431-17C00-000   5743117C00000

5743117C00000

Unit Price

4
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

5
SWITCH ASSY, STOP

57460-17C00-000  

57460-14J02-000
 5746017C00000

Unit Price

6
SCREW,WITH WASHER(4X12)<br />SCREW
SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

7
GRIP, L(BLACK)

57211-22D01-000  

57211-22D02-291
 5721122D01000

Unit Price

8
LEVER ASSY, RR BRAKE
LEVER ASSY, REAR BRAKE

57500-10G00-000   5750010G00000

5750010G00000

Unit Price

8
LEVER ASSY, RR BRAKE
LEVER ASSY, REAR BRAKE

57500-10G10-000   5750010G10000

5750010G10000

Unit Price

9
BOLT,LEVER PIVOT<br />BOLT, PIVOT
BOLT, LEVER PIVOT
BOLT, PIVOT

57431-17C00-000   5743117C00000

5743117C00000

Unit Price

10
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

11
SWITCH ASSY, RR BRAKE

57560-14F11-000  

57560-14J02-000
 5756014F11000

Unit Price

11
57560-14J02

57560-14F00-000  

5756014F00000
Not available
12
LEVER ASSY, BRAKE LOCK

57800-10G00-000  

57800-10G01-000
 5780010G00000

Unit Price

13
SWITCH ASSY, STOP

57460-17C00-000  

57460-14J02-000
 5746017C00000

Unit Price

14
SCREW, BRAKE LOCK SWITCH
SCREW

57852-10G00-000   5785210G00000

5785210G00000

Unit Price

15
NUT

57853-10G00-000   5785310G00000

5785310G00000

Unit Price

16
SPRING, RETURN

57804-10G00-000   5780410G00000

5780410G00000

Unit Price

17
KNOB, BRAKE LOCK

57820-10G00-000   5782010G00000

5782010G00000

Unit Price

18
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

19
COVER, BRAKE LOCK KNOB
COVER, KNOB

57831-10G00-000   5783110G00000

5783110G00000

Unit Price

20
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

21
PLATE, LEVER SEAL

57950-10G00-000   5795010G00000

5795010G00000

Unit Price

22
SCREW

03512-05123-000  

03511-0512B-000
 0351205123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEVERS - HANDGRIPS (MODEL K3/K4) of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.
