SPEEDOMETER (A100N)

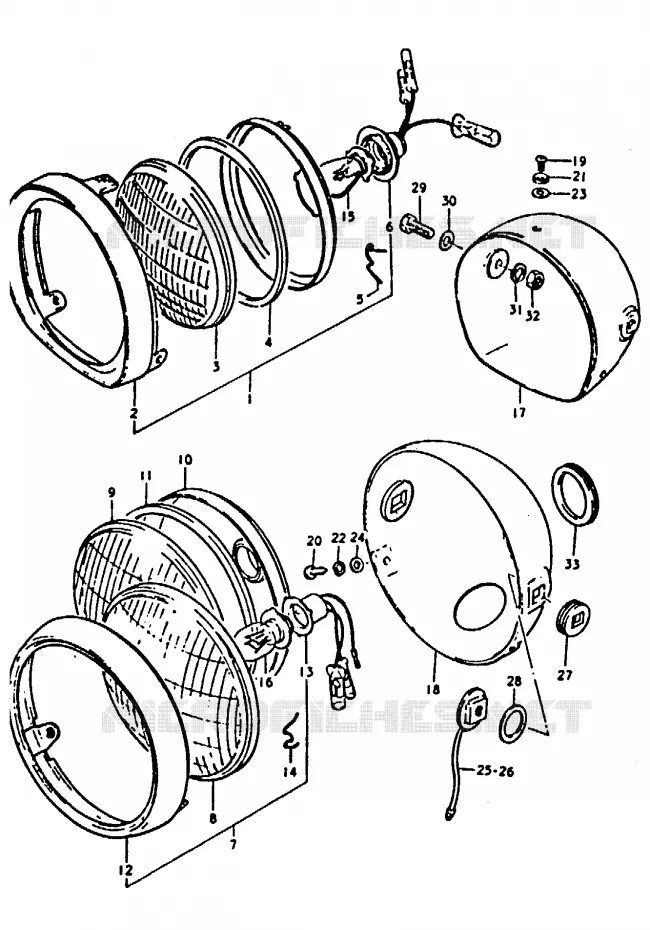

HEADLIGHT (A100-4,K,L) FOR SUZUKI A100 100 1990

HEADLIGHT (A100M,N) SEE NEXT FRAME FOR E2

HEADLAMP ASSY

35100-25220-999 3510025220999

Not available

RIM

35111-25220-000 3511125220000

Not available

LENS

35124-23020-000 3512423020000

Not available

GASKET

35125-23020-000 3512523020000

Not available

DISCONTINUE
SPRING

35128-22020-000 3512822020000

Not available

SOCKET

35171-25220-000 3517125220000

Not available

UNIT

35121-27220-000 3512127220000

Not available

DISCONTINUED

35124-27222-000 3512427222000

Not available

REFLECTOR

35123-25322-000 3512325322000

Not available

GASKET

35125-27222-000 3512527222000

Not available

RIM

35111-27221-000 3511127221000

Not available

SOCKET

35171-28021-000 3517128021000

Not available

SPRING

35128-27221-000 3512827221000

$5,97

Unit Price

BULB(6V1.7W, STANLEY, A61A)
BULB

09471-06029-000 0947106029000

$13,97

Unit Price

BULB(12V1.7W, A71A)

09471-06015-000

09471-06072-000

$13,97

Unit Price

HOUSING, HEADLAMP

51810-12100-138 5181012100138

Not available

HOUSING, HEADLAMP

51810-12100-157 5181012100157

Not available

HOUSING, HEADLAMP

51810-12100-195 5181012100195

Not available

HOUSING, HEADLAMP

51810-26000-138 5181026000138

Not available

HOUSING, HEADLAMP

51810-26000-157 5181026000157

Not available

HOUSING, HEADLAMP

51810-26000-195 5181026000195

Not available

HOUSING, HEADLAMP

51810-26000-798 5181026000798

Not available

SCREW, CHROME

02132-04128-000

02122-04123-000

$3,97

Unit Price

SCREW

02112-04128-000

02112-0412A-000

$2,97

Unit Price

WASHER

09165-04004-000 0916504004000

$3,97

Unit Price

WASHER 4MM

08321-21048-000 0832121048000

Not available

WASHER

09161-04005-000 0916104005000

Not available

LOCK WASHER

08322-21048-000 0832221048000

Not available

DISCONTINUED

51820-36200-000 5182036200000

Not available

DISCONTINUE
SPACER, HOUSING LH

51860-36200-000 5186036200000

Not available

CUSHION, HEADLAMP HOUSING

51827-27302-000

51827-27303-000

$8,97

Unit Price

CUSHION, HOUSING

51827-27301-000 5182727301000

Not available

WASHER

51828-25300-000 5182825300000

Not available

BOLT, CROWN 8X25
BOLT

01204-08257-000 0120408257000

$3,97

Unit Price

BOLT, CROWN 8X20
BOLT

01204-08207-000

Not available

WASHER

08322-11088-000

08322-01087-000

$2,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

NUT

08310-12088-000

08310-00087-000

$2,97

Unit Price

GROMMET, HEADLAMP HOUSING
GROMMET

51845-31031-000 5184531031000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (A100-4,K,L) of your Suzuki of A100. Let us know if you have any questions.
