Finish line

Parts catalogue

Parts diagram

MUFFLER

OIL PUMP FOR SUZUKI A100 100 1992

CLUTCH

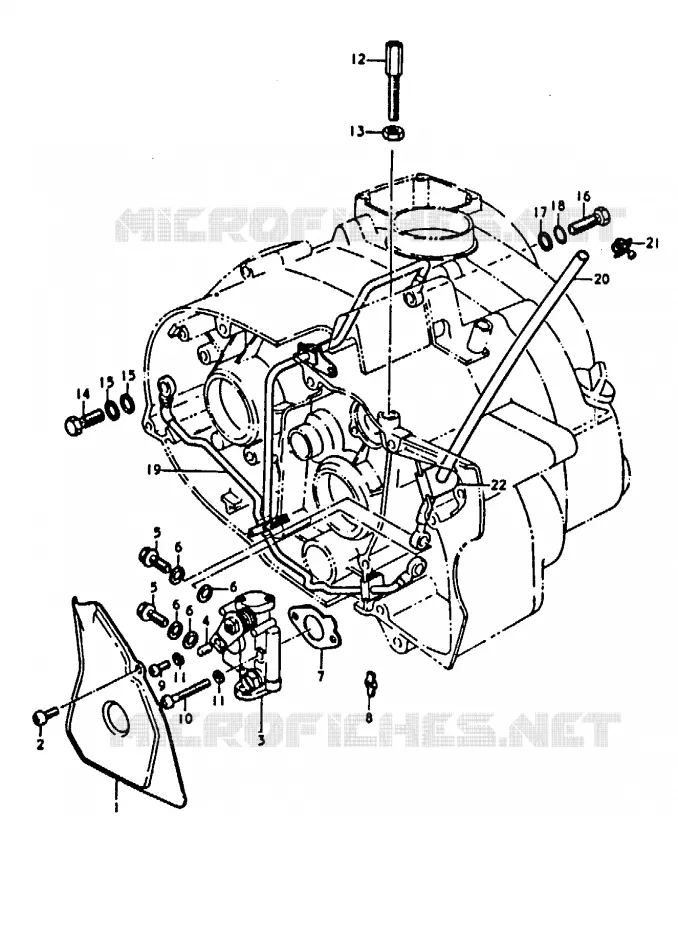

OIL PUMP Suzuki MOTO 100 A100 1992 A100N(K/L/M/N/4)
1
CAP, OIL PUMP INSPECTION

11385-12000-000   1138512000000

1138512000000
Not available
2
SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000   0211206108000

0211206108000
Not available
3
DISCONTINUED

16100-12603-000   1610012603000

1610012603000
Not available
4
DISCONTINUED

16292-03111-000   1629203111000

1629203111000
Not available
5
OIL PUMP UNION BOLT<br />UNION BOLT
OIL PUMP UNION BOLT
UNION BOLT

09360-06003-000   0936006003000

0936006003000

Unit Price

5
UNION BOLT

09360-06005-000   0936006005000

0936006005000
Not available
6
TACH GEAR WASHER

09168-06002-000  

09168-06004-000
 0916806002000

Unit Price

7
GASKET, OIL PUMP
GASKET, OIL PUMP

16731-03101-000   1673103101000

1673103101000

Unit Price

7
DISCONTINUED

16731-03100-000   1673103100000

1673103100000
Not available
8
DISCONTINUED

16391-05030-000   1639105030000

1639105030000
Not available
9
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

10
SCREW

02112-05308-000  

02112-0530A-000
 0211205308000

Unit Price

11
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

12
BOLT<br />BOLT, CABLE ADJUSTER
BOLT
BOLT, CABLE ADJUSTER

09119-08014-000   0911908014000

0911908014000

Unit Price

13
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

14
OIL PUMP UNION BOLT<br />UNION BOLT
OIL PUMP UNION BOLT
UNION BOLT

09360-06003-000   0936006003000

0936006003000

Unit Price

15
TACH GEAR WASHER

09168-06002-000  

09168-06004-000
 0916806002000

Unit Price

16
VALVE, INLET CHECK

16710-11012-000   1671011012000

1671011012000
Not available
17
DISCONTINUE
GASKET

09168-10005-000   0916810005000

0916810005000
Not available
18
O RING(D:1.3,ID:7.6)<br />O RING
O RING(D:1.3, ID:7.6)
O RING

09280-08003-000   0928008003000

0928008003000

Unit Price

19
HOSE
HOSE, OUTLET

16820-12033-000   1682012033000

1682012033000

Unit Price

20
DISCONTINUED

16810-05031-000   1681005031000

1681005031000
Not available
21
CLAMP

09400-10301-000   0940010301000

0940010301000
Not available
22
GROMMET
GROMMET

09309-08002-000   0930908002000

0930908002000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of A100. Let us know if you have any questions.

Genuine parts for Suzuki 100 A100 1992

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 100 A100 1992

Select your Suzuki 1992 model

100 A100 1992 A100N(K/L/M/N/4)

Suzuki A100

Displacement: 100 cc
Year: 1992
Model code A100N(K / L / M / N / 4)
