STEERING STEM

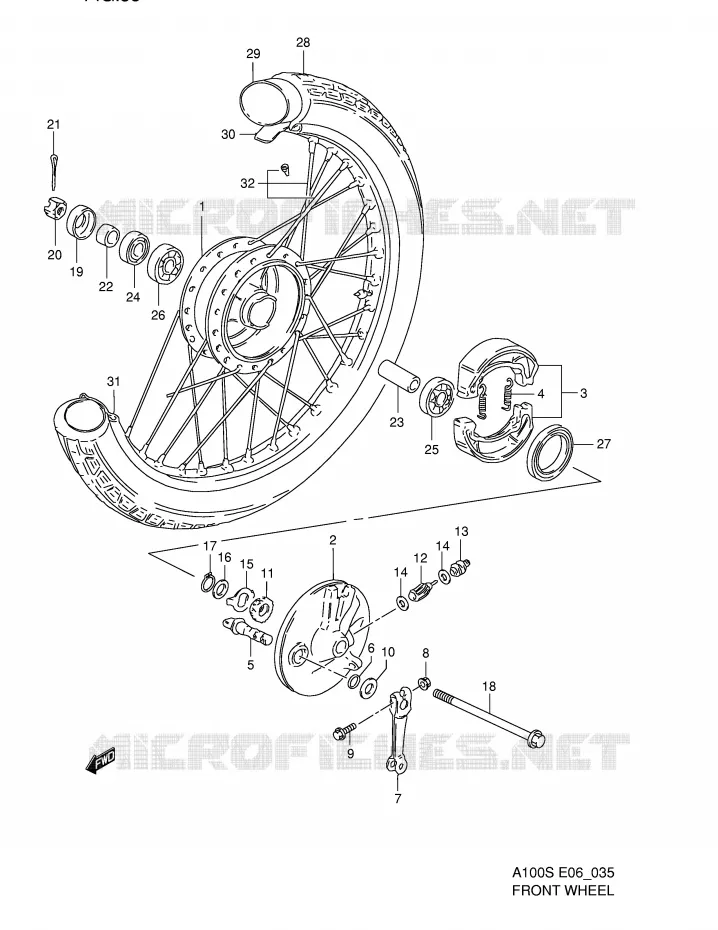

FRONT WHEEL FOR SUZUKI A100 100 1994

HANDLE BAR - CONTROL CABLE

Item numbers

DRUM, FRONT HUB

54110-46002-000 5411046002000

Not available

PANEL, FRONT BRAKE ANCHOR

54210-46104-000 5421046104000

Not available

SHOE & SPRING SET, BRAKE
SHOE SET, BRAKE

54400-35860-000 5440035860000

$55,97

Unit Price

SHOE SET, BRAKE

54401-35880-000 5440135880000

Not available

SPRING

09443-07025-000 0944307025000

Not available

SPRING

09443-07044-000 0944307044000

$5,97

Unit Price

CAM, BRAKE
SHAFT, BRAKE CAM

54441-29305-000 5444129305000

$20,97

Unit Price

O RING, 02.5, ID:13.8
DUST SEAL

09280-14011-000 0928014011000

$7,97

Unit Price

LEVER, FR BRAKE CAM
LEVER, BRAKE CAM

54451-46110-000 5445146110000

$16,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

BOLT

09103-06045-000 0910306045000

Not available

WASHER
WASHER, DUST SEAL

09160-14055-000 0916014055000

$3,97

Unit Price

GEAR, SPEEDOMETER (N:26)

54611-23202-000 5461123202000

Not available

PINION, SPEEDOMETER (NT:10)

54621-23201-000 5462123201000

Not available

BUSH, SPEEDOMETER PINION OUTER
BUSHING, PINION

54632-02201-000 5463202201000

$18,97

Unit Price

WASHER, 5.1X9X0.4

09160-05001-000

09160-05001-A05

$2,97

Unit Price

DRIVER, SPEEDOMETER

54661-03000-000 5466103000000

Not available

THRUST WASHER (16X22X1)

09160-16005-000 0916016005000

Not available

CIRCLIP

08331-31156-000

08331-3115A-000

$3,97

Unit Price

AXLE, FRONT

54711-03602-000 5471103602000

Not available

COVER, HUB DUST SEAL

54892-01000-000 5489201000000

Not available

NUT

09141-10006-000 0914110006000

$5,97

Unit Price

04111-20208-000

04111-2020A-000

$1,97

Unit Price

SPACER, AXLE, RH (10X15X12.4)

09180-10003-000 0918010003000

Not available

SPACER (10X15X13)

54751-22C00-000 5475122C00000

Not available

SPACER
SPACER, HUB (10.1X16X51)

09180-10148-000 0918010148000

$10,97

Unit Price

BEARING OIL SEAL
OIL SEAL (15X31X9.50)

09284-15001-000 0928415001000

$6,97

Unit Price

08143-6300B
BEARING, LH

08143-63007-000 0814363007000

Not available

BALL BEARING

08113-62007-000

08113-62000-000

$20,97

Unit Price

SEAL, OIL(43X58X7)

09285-43001-000

09283-43004-000

$19,97

Unit Price

DISCONTINUE
TIRE, FRONT (2.50-18 40L NF2) (INOUE)

55100-14012-000 5510014012000

Not available

DISCONTINUE
TUBE ASSY, WHEEL INNER

55200-14010-000 5520014010000

Not available

PROTECTOR, INNER TUBE

55261-11010-000

55261-26F10-000

$8,97

Unit Price

RIM, WHEEL (1.40X18)

55311-12120-000 5531112120000

$198,97

Unit Price

SPOKE SET, FRONT WHEEL

55320-21200-000 5532021200000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT WHEEL of your Suzuki of A100. Let us know if you have any questions.
