Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI A100 100 1995

GEAR SHIFTING ASSY

Item numbers

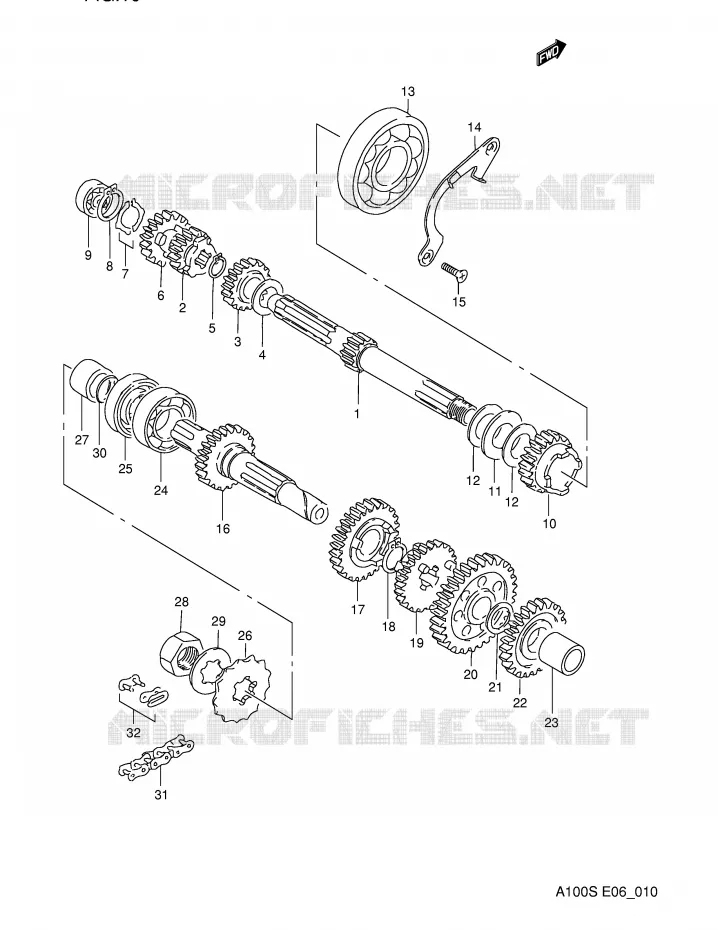

TRANSMISSION Suzuki MOTO 100 A100 1995 A100S(E6)
1
2
2
3
3
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
16
17
17
18
19
19
20
21
22
23
24
25
26
26
26
27
28
29
30
31
31
32
32
1
COUNTERSHAFT (NT:11)

24121-12003-000   2412112003000

2412112003000
Not available
2
GEAR, 2ND DRIVE
GEAR, 2ND DRIVE (NT:15)

24221-23001-000   2422123001000

2422123001000

Unit Price

3
GEAR, 3RD DRIVE (NT:18)

24231-12021-000   2423112021000

2423112021000
Not available
3
GEAR, 3RD/4TH DRIVE

24231-23010-000   2423123010000

2423123010000
Not available
4
WASHER

08211-17241-000   0821117241000

0821117241000

Unit Price

5
THIRD PINION CIRCLIP<br />CIRCLIP
THIRD PINION CIRCLIP
CIRCLIP

09380-17001-000   0938017001000

0938017001000

Unit Price

6
GEAR, 4TH DRIVE (NT:20)

24241-07003-000   2424107003000

2424107003000
Not available
6
GEAR, 4TH DRIVE (NT:20)

24241-12021-000   2424112021000

2424112021000
Not available
7
RING<br />RING, 4TH DRIVE GEAR
RING
RING, 4TH DRIVE GEAR

09399-14001-000   0939914001000

0939914001000

Unit Price

8
RING,SNAP<br />CIRCLIP
RING, SNAP
CIRCLIP

09380-26001-000   0938026001000

0938026001000

Unit Price

9
BALL BEARING<br />BEARING, COUNTERSHAFT LH
BALL BEARING
BEARING, COUNTERSHAFT LH

09262-12001-000   0926212001000

0926212001000

Unit Price

10
DISCONTINUE
GEAR, KICK STARTER DRIVEN

26280-23010-000   2628023010000

2628023010000
Not available
11
BEARING (21X32X2.85)
BEARING (21X32X2.85)

09263-21006-000   0926321006000

0926321006000

Unit Price

12
KK DRN GR BRG WASHER<br />WASHER (21X30X0.8)
KK DRN GR BRG WASHER
WASHER (21X30X0.8)

09160-21007-000   0916021007000

0916021007000

Unit Price

13
BEARING 30X62X10

09262-30003-000   0926230003000

0926230003000

Unit Price

14
PLATE, COUNTERSHAFT BEARING

24741-12010-000   2474112010000

2474112010000
Not available
15
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

16
DRIVESHAFT (NT:22)

24131-12011-000   2413112011000

2413112011000
Not available
16
DRIVESHAFT (NT:22)

24131-12022-000   2413112022000

2413112022000
Not available
17
GEAR, 2ND DRIVEN (NT:27)

24321-12021-000   2432112021000

2432112021000
Not available
17
GEAR, 2ND DRIVEN (NT:28)

24321-23001-000   2432123001000

2432123001000
Not available
18
CIRCLIP
CIRCLIP

09380-20007-000   0938020007000

0938020007000

Unit Price

19
GEAR, 3RD DRIVEN (NT:23)

24331-12021-000   2433112021000

2433112021000
Not available
19
DISCONTINUE
GEAR, 3RD DRIVEN (NT:25)

24331-12031-000   2433112031000

2433112031000
Not available
20
DISCONTINUE
GEAR, 1ST DRIVEN (NT:32)

24310-12021-000   2431012021000

2431012021000
Not available
21
WASHER
WASHER

08211-15301-000   0821115301000

0821115301000
Not available
22
DISCONTINUE
GEAR, KICK STARTER IDLE

26260-23010-000   2626023010000

2626023010000
Not available
23
BUSH
BUSHING, DRIVESHAFT

09303-15004-000   0930315004000

0930315004000

Unit Price

24
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

25
OIL SEAL (25X40X9)

09283-25003-000   0928325003000

0928325003000
Not available
26
SPROCKET, ENGINE(NT:15)
SPROCKET, ENGINE (NT:14)

27511-27100-000   2751127100000

2751127100000

Unit Price

26
DISCONTINUE
SPROCKET, ENGINE (NT:14)

27511-13700-000   2751113700000

2751113700000
26
DISCONTINUE
SPROCKET, ENGINE (NT:13)

27511-24901-000   2751124901000

2751124901000
Not available
27
SPACER (20X25X15.50)

09180-20016-000   0918020016000

0918020016000
Not available
28
DRIVE SPROCKET NUT<br />NUT
DRIVE SPROCKET NUT
NUT

09140-20001-000   0914020001000

0914020001000

Unit Price

29
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

09167-20009-000   0916720009000

0916720009000

Unit Price

30
DR SHAFT BRG O RING
O RING (D:1.0, ID:19.5)

09280-20001-000   0928020001000

0928020001000

Unit Price

31
CHAIN, DRIVE

27600-20910-112  

27600-20911-112
 2760020910112

Unit Price

31
CHAIN, DRIVE

27600-46911-134  

27600-46912-134
 2760046911134

Unit Price

32
JOINT SET(DID428)

27620-20910-000  

27620-20911-000
 2762020910000

Unit Price

32
JOINT (RK)

27620-40220-000   2762040220000

2762040220000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of A100. Let us know if you have any questions.

Genuine parts for Suzuki 100 A100 1995

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 100 A100 1995

Select your Suzuki 1995 model

100 A100 1995 A100S(E6)

Suzuki A100

Displacement: 100 cc
Year: 1995
Model code A100S(E6)
