TRANSMISSION (1)

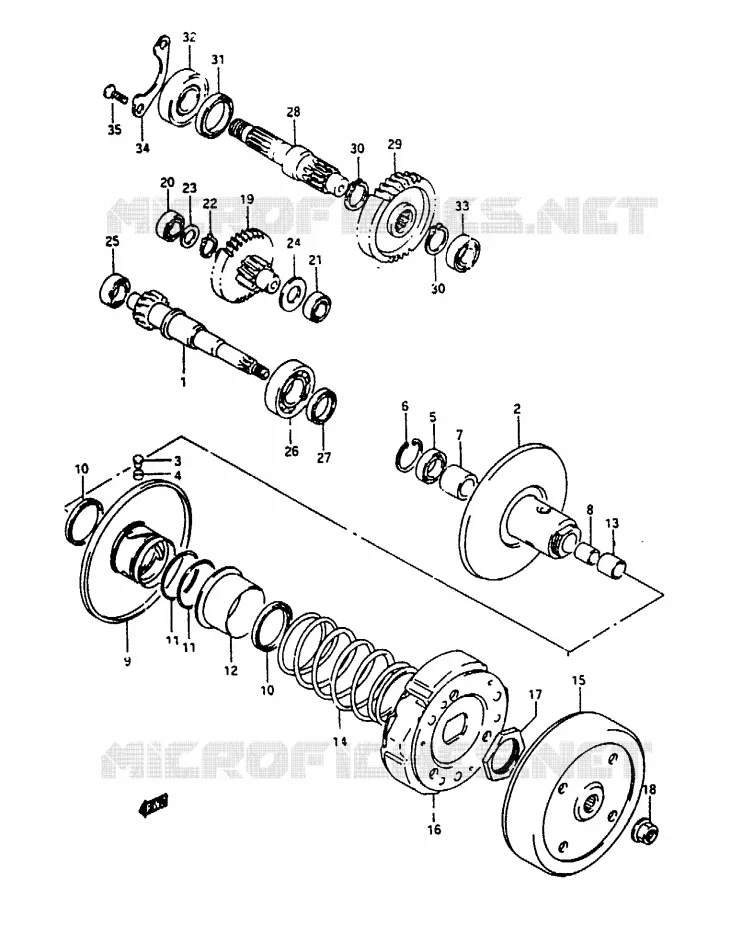

TRANSMISSION (2) FOR SUZUKI ADDRESS 100 1994

KICK STARTER

SHAFT, DRIVE (NT:14)

24131-41D10-000 2413141D10000

Not available

FACE, FIXED DRIVEN

21210-41D11-000

21210-41D12-000

$124,97

Unit Price

09201-05006-000 0920105006000

$4,97

Unit Price

SPACER(5X8.2X3.5)
SPACER (6X8X3.5)

09180-05042-000 0918005042000

$8,97

Unit Price

BEARING (15X28X7)

09262-15028-000 0926215028000

$62,97

Unit Price

CIRCLIP

08331-41286-000

08331-41289-000

$3,97

Unit Price

BEARING
BEARING (17X25X16.7)

09263-17042-000 0926317042000

$40,97

Unit Price

SPACER (12X17X19)

09180-12129-000 0918012129000

Not available

FACE, MOVABLE DRIVEN

21240-41D10-000 2124041D10000

Not available

OIL SEAL (34X41X4)

09284-34002-000 0928434002000

Not available

O RING
O RING (D 4 6, ID41.9)

09280-41005-000 0928041005000

$4,97

Unit Price

SHEET, MOVABLE DRIVEN

21471-03A03-000

21471-03A11-000

$8,97

Unit Price

SPACER, FIXED DRIVEN FACE

21213-41D03-000 2121341D03000

$18,97

Unit Price

SPRING

09440-52007-000 0944052007000

$63,97

Unit Price

HOUSING, CLUTCH

21220-41D01-000

21220-41D02-000

$122,97

Unit Price

CLUTCH ASSY, SHOE (NA)

21501-41D20-000 2150141D20000

Not available

NUT

09140-28004-000 0914028004000

$13,97

Unit Price

NUT

08316-10103-000

08316-1010B-000

$4,97

Unit Price

SHAFT, IDLE (NT:31/10)

24150-41D20-000 2415041D20000

Not available

BEARING

08113-62017-000

08113-6201B-000

$18,97

Unit Price

BEARING (16X22X12)

09263-16012-000 0926316012000

Not available

CIRCLIP

08331-31156-000

08331-3115A-000

$3,97

Unit Price

THRUST WASHER

08211-16301-000 0821116301000

Not available

WASHER

08211-12201-000 0821112201000

Not available

BEARING (15X35X11)

09262-15017-000 0926215017000

Not available

BEARING

09262-20069-000

09262-20121-000

$43,97

Unit Price

OIL SEAL

09283-20052-000

09283-20073-000

$15,97

Unit Price

SHAFT, REAR AXLE

24141-41D00-000 2414141D00000

Not available

GEAR, FINAL DRIVEN (NT:35)

24371-41D00-000 2437141D00000

Not available

CIRCLIP

08331-31226-000

08331-31229-000

$3,97

Unit Price

OIL SEAL, DR SFT
OIL SEAL (27X40X6)

09283-27010-000 0928327010000

$16,97

Unit Price

BEARING

08130-62047-000 0813062047000

$30,97

Unit Price

BALL BEARING
BEARING

08110-62030-000 0811062030000

$22,97

Unit Price

RETAINER, DRIVE SHAHFT BEARING
RETAINER, REAR AXLE SHAFT BEARING

24751-07900-000 2475107900000

$4,97

Unit Price

SCREW

02122-06163-000

02122-0616B-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (2) of your Suzuki of ADDRESS. Let us know if you have any questions.
