FAIRING (MODEL P) REFER TO FIG.29B(E-12) FOR MODEL T/V/X/Y

FAIRING (MODEL T / V / X / Y) FOR SUZUKI ADDRESS 100 1999

LEG SHIELD (MODEL M / P) REFER TO FIG.30A(F-3) FOR MODEL T/V/X/Y

Item numbers

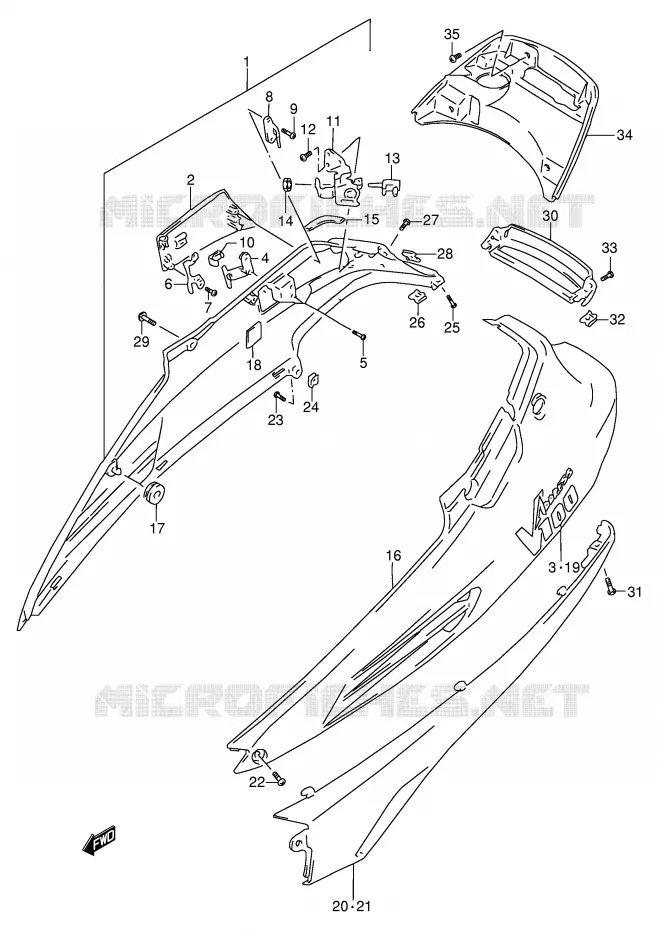

FAIRING (MODEL T/V/X/Y) Suzuki SCOOTER 100 ADDRESS 1999 AG100X(E71)
1
1
1
2
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
18
18
19
19
20
20
20
21
21
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
34
35
1
COVER ASSY, SIDE RH (GRAY)

47100-41D30-17U   4710041D3017U

4710041D3017U
Not available
1
COVER ASSY, SIDE RH (RED)

47100-41D30-19A   4710041D3019A

4710041D3019A
Not available
1
COVER ASSY, SIDE RH (BLACK)

47100-41D30-33J   4710041D3033J

4710041D3033J
Not available
2
LID, FUEL FILLER (GRAY)

47311-40D00-17U   4731140D0017U

4731140D0017U
Not available
2
LID, FUEL FILLER (RED)

47311-40D00-19A   4731140D0019A

4731140D0019A
Not available
2
LID, FUEL FILLER (BLACK)

47311-40D00-33J   4731140D0033J

4731140D0033J
Not available
3
EMBLEM, SIDE COVER RH

68131-41D20-3EF   6813141D203EF

6813141D203EF
Not available
3
EMBLEM, SIDE COVER RH

68131-41D20-D7T   6813141D20D7T

6813141D20D7T
Not available
4
HINGE, FUEL LID

47312-40D10-000   4731240D10000

4731240D10000
Not available
5
SCREW

03541-05123-000  

03541-0512B-000
 0354105123000

Unit Price

6
PLATE, FUEL LID

47313-40D11-000   4731340D11000

4731340D11000
Not available
7
SCREW

03541-04103-000  

03541-0410A-000
 0354104103000

Unit Price

8
HOOK, FUEL LID

47314-40D00-000   4731440D00000

4731440D00000
Not available
9
SCREW

03541-05123-000  

03541-0512B-000
 0354105123000

Unit Price

10
SPRING, FUEL LID RETURN

47315-40D00-000   4731540D00000

4731540D00000
Not available
11
BRACKET, FUEL LID LOCK

47920-40D00-000   4792040D00000

4792040D00000
Not available
12
SCREW

03541-05103-000  

03541-0510A-000
 0354105103000

Unit Price

13
OPENER ASSY, FUEL LID

76520-40D00-000   7652040D00000

7652040D00000
Not available
14
NUT

08310-00103-000  

08310-0010B-000
 0831000103000

Unit Price

15
CUSHION, UNDER COWLING NO.1
CUSHION, FUEL LID TAPE

94476-38C00-000   9447638C00000

9447638C00000

Unit Price

16
COVER, SIDE LH (GRAY)

47211-40D00-17U   4721140D0017U

4721140D0017U
Not available
16
COVER, SIDE LH (RED)

47211-40D00-19A   4721140D0019A

4721140D0019A
Not available
16
COVER, SIDE LH (BLACK)

47211-40D00-33J   4721140D0033J

4721140D0033J
Not available
17
CUSHION

09320-08049-000   0932008049000

0932008049000

Unit Price

18
CUSHION

44281-29C00-000  

63191-25C00-000
 4428129C00000

Unit Price

19
EMBLEM, SIDE COVER LH

68131-41D20-3EF   6813141D203EF

6813141D203EF
Not available
19
EMBLEM, SIDE COVER LH

68131-41D20-D7T   6813141D20D7T

6813141D20D7T
Not available
20
COVER, SIDE LOWER RH (CHARCOAL)

47131-41D00-0LS   4713141D000LS

4713141D000LS
Not available
20
COVER, SIDE LOWER RH (BLACK)

47131-41D00-291   4713141D00291

4713141D00291
Not available
21
COVER, SIDE LOWER LH (CHARCOAL)

47231-41D00-0LS   4723141D000LS

4723141D000LS
Not available
21
COVER, SIDE LOWER LH (BLACK)

47231-41D00-291   4723141D00291

4723141D00291
Not available
22
SCREW

09136-05054-000   0913605054000

0913605054000
Not available
23
SCREW

03242-05163-000  

03241-0516A-000
 0324205163000

Unit Price

24
NUT
NUT

09148-05020-000   0914805020000

0914805020000

Unit Price

25
SCREW

03541-04123-000  

03541-0412A-000
 0354104123000

Unit Price

26
NUT
NUT

09148-04024-000   0914804024000

0914804024000

Unit Price

27
SCREW

03241-15163-000  

03241-1516A-000
 0324115163000

Unit Price

28
NUT INST CENTER

09148-05004-000  

09148-05013-000
 0914805004000

Unit Price

29
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

30
COVER, REAR (CHARCOAL)

47321-40D00-0LS   4732140D000LS

4732140D000LS
Not available
30
COVER, REAR (BLACK)

47321-40D00-291   4732140D00291

4732140D00291
Not available
31
SCREW

03242-05163-000  

03241-0516A-000
 0324205163000

Unit Price

32
NUT
NUT

09148-05020-000   0914805020000

0914805020000

Unit Price

33
SCREW

03242-05123-000  

03241-0512A-000
 0324205123000

Unit Price

34
COVER, UPPER

47341-40D02-000   4734140D02000

4734140D02000
Not available
35
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (MODEL T/V/X/Y) of your Suzuki of ADDRESS. Let us know if you have any questions.
