CLUTCH (MODEL G / R) REFER TO FIG.14A(D-4) FOR MODEL S/V/X/Y

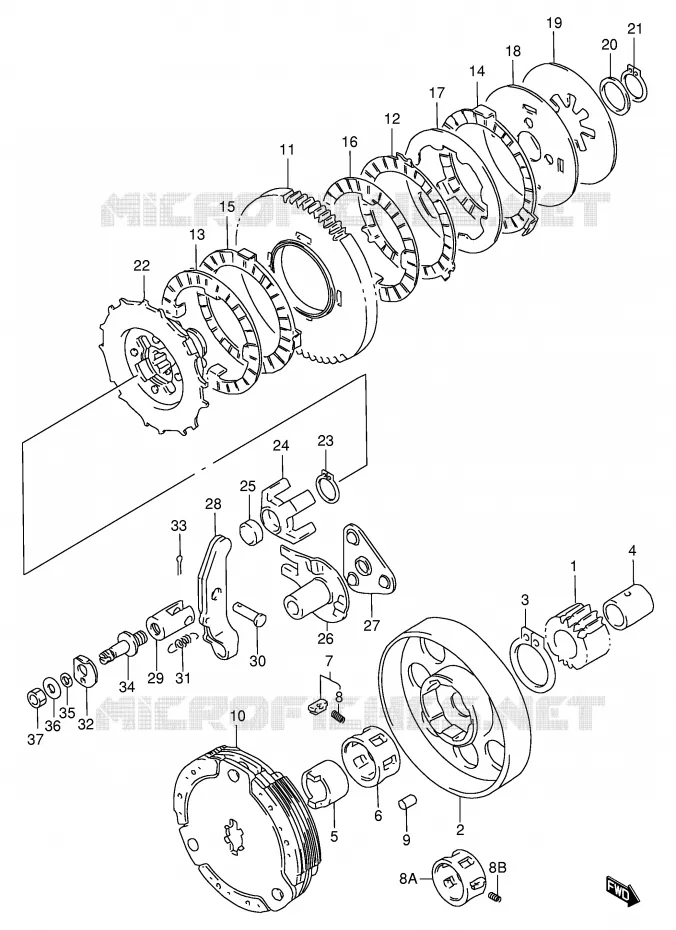

CLUTCH (MODEL S / V / X / Y) FOR SUZUKI FB 100 1986

TRANSMISSION

Item numbers

GEAR, PRIMARY DRIVE (NT:17)

21111-30A00-000 2111130A00000

Not available

HOUSING, CLUTCH

21102-30A10-000 2110230A10000

Not available

CIRCLIP

08331-31346-000 0833131346000

Not available

SPACER (16X21X23)

09180-16035-000 0918016035000

Not available

RACE, ONE WAY CLUTCH
RACE

21631-02A04-000 2163102A04000

$44,97

Unit Price

RETAINER, ONE WAY CLUTCH

21652-30D01-000 2165230D01000

$81,97

Unit Price

SPRING, ONE WAY CLUTCH

21236-30830-000 2123630830000

Not available

SPRING

09440-02003-000 0944002003000

$21,97

Unit Price

RETAINER, ONE WAY CLUTCH

21652-30D01-000 2165230D01000

$81,97

Unit Price

SPRING
SPRING, ONE WAY CLUTCH

09440-02003-000 0944002003000

$21,97

Unit Price

ROLLER(7X10)
ROLLER

09261-07006-000 0926107006000

$3,97

Unit Price

CLUTCH ASSY, SHOE

21501-30A00-000 2150130A00000

Not available

GEAR, PRIMARY DRIVEN (NT:65)

21210-09410-000 2121009410000

Not available

PLATE, CLUTCH DRIVE
PLATE, DRIVE (T:2.6)

21441-09D02-000 2144109D02000

$25,97

Unit Price

PLATE, DRIVE (T:2.1)

21441-30A01-000 2144130A01000

Not available

PLATE, DRIVE (T:2.6)

21441-30A22-000 2144130A22000

Not available

PLATE, DRIVEN (T:2.6)

21451-30A02-000 2145130A02000

Not available

PLATE, DRIVEN (T:2.5)

21451-30A12-000 2145130A12000

Not available

PLATE, DRIVEN (T:1.6)

21451-30A20-000 2145130A20000

Not available

PLATE, CLUTCH PRESSURE
PLATE, PRESSURE

21461-30A00-000 2146130A00000

$14,97

Unit Price

SPRING

09164-22009-000 0916422009000

Not available

SPACER (22X28X4)

09180-22033-000 0918022033000

$7,97

Unit Price

CIRCLIP

08331-31176-000

08331-31179-000

$3,97

Unit Price

HUB, SLEEVE

21410-35502-000 2141035502000

Not available

CIRCLIP

08331-31216-000

08331-31219-000

$2,97

Unit Price

PIECE, CLUTCH

23121-09D00-000 2312109D00000

Not available

BEARING(16X6)
BEARING

09266-16002-000 0926616002000

$25,97

Unit Price

GUIDE, RELEASE BALL OUTER
GUIDE, BALL OUTER

23230-30A01-000 2323030A01000

$20,97

Unit Price

GUIDE, BALL OUTER

23230-30A00-000 2323030A00000

Not available

BALL, CLUTCH RELEASE

23250-35402-000 2325035402000

$20,97

Unit Price

23221-09406
ARM, CLUTCH RELEASE

23221-09405-000 2322109405000

Not available

BOSS, CLUTCH RELEASE ARM
BOSS, RELEASE ARM

23222-09401-000 2322209401000

$19,97

Unit Price

09200-07005-000 0920007005000

$3,97

Unit Price

SPRING

09443-06053-000 0944306053000

$2,97

Unit Price

WASHER

09169-06046-000 0916906046000

$1,97

Unit Price

DISCONTINUE
COTTER PIN

04111-16208-000

Not available

BOLT, CLUTCH RELEASE ADJUST
BOLT, ADJUST

23223-09404-000 2322309404000

$7,97

Unit Price

BOLT, ADJUST

23223-09403-000 2322309403000

Not available

O RING

09280-06005-000 0928006005000

$3,97

Unit Price

WASHER, 6.5X14X2.3

09160-06017-000

09160-06127-000

$2,97

Unit Price

WASHER (6.5X13X3.2)

09160-06123-000 0916006123000

$3,97

Unit Price

NUT

09140-06023-000 0914006023000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH (MODEL S/V/X/Y) of your Suzuki of FB. Let us know if you have any questions.
