Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STAND - FOOTREST

REAR BRAKE FOR SUZUKI FB 100 2000

HANDLEBAR

Item numbers

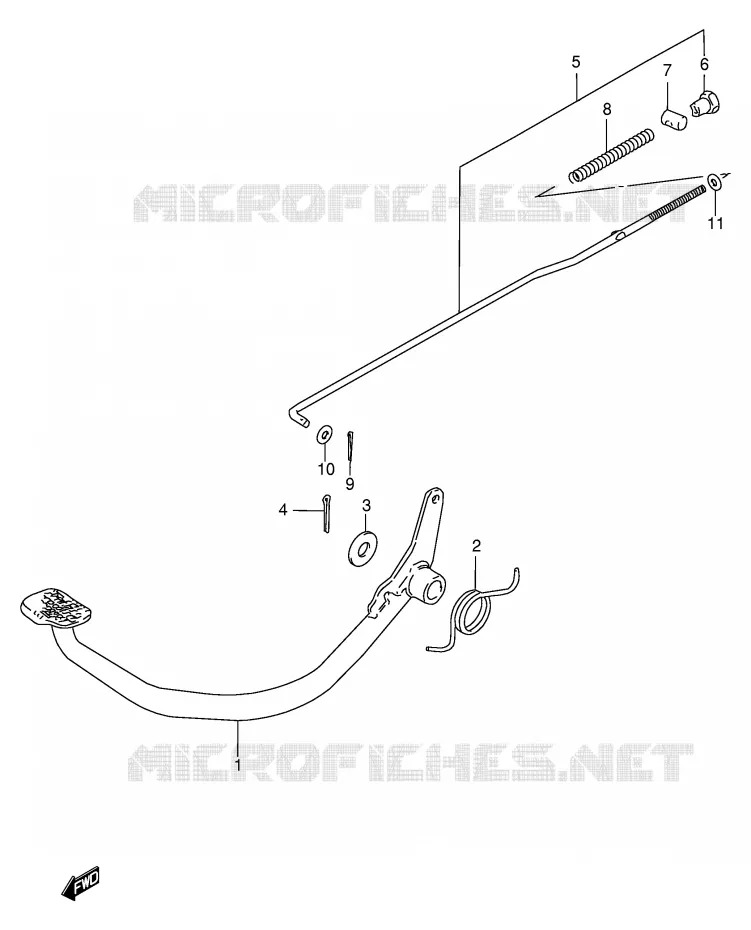

REAR BRAKE Suzuki SCOOTER 100 FB 2000 FB100Y(E71)
1
2
3
4
5
6
7
8
9
10
11
1
PEDAL, BRAKE

43110-30A00-000   4311030A00000

4311030A00000
Not available
2
SPRING

09448-31015-000   0944831015000

0944831015000
Not available
3
PEDAL LOCK WASHER<br />WASHER (15.5X26X2.3)
PEDAL LOCK WASHER
WASHER (15.5X26X2.3)

09160-15002-000   0916015002000

0916015002000

Unit Price

4
PIN

04111-30308-000  

04111-3030A-000
 0411130308000

Unit Price

5
ROD ASSY, REAR BRAKE

43300-35420-000   4330035420000

4330035420000
Not available
6
09150-06010
NUT

09150-06014-000  

0915006014000
Not available
7
BRAKE CAM LEVER PIN<br />PIN
BRAKE CAM LEVER PIN
PIN

09209-11002-000   0920911002000

0920911002000

Unit Price

8
BRK ROD ADJ SPRING<br />SPRING
BRK ROD ADJ SPRING
SPRING

09440-09004-000   0944009004000

0944009004000

Unit Price

9
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

10
WASHER

08322-01053-000  

08322-0105B-000
 0832201053000

Unit Price

11
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE of your Suzuki of FB. Let us know if you have any questions.

Genuine parts for Suzuki 100 FB 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 100 FB 2000

Select your Suzuki 2000 model

100 FB 2000 FB100Y(E71)

Suzuki FB

Displacement: 100 cc
Year: 2000
Model code FB100Y(E71)
