DRIVESHAFT

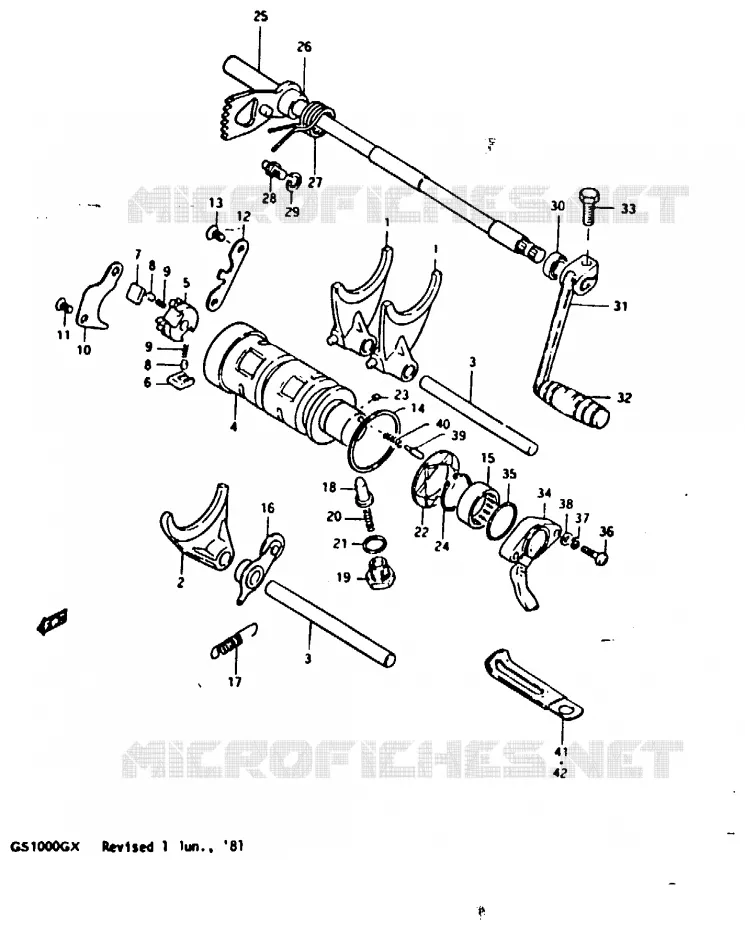

GEAR SHIFTING ASSY FOR SUZUKI GS 1000 1980

DRIVESHAFT

FORK, GEAR SHIFT NO.1
FORK, DRIVEN GEAR SHIFTING

25211-49200-000 2521149200000

$134,97

Unit Price

FORK, DRIVEN GEAR SHIFTING

25211-34000-000 2521134000000

Not available

FORK, DRIVE GEAR SHIFTING

25231-45100-000 2523145100000

Not available

SHAFT, GEAR SHIFTING FORK

25411-31000-000 2541131000000

Not available

CAM, GEAR SHIFTING

25310-45101-000 2531045101000

Not available

GEAR, CAM DRIVEN

25322-11000-000 2532211000000

Not available

PAWL, NO. 1

25323-11000-000 2532311000000

Not available

PAWL, NO. 2

25324-11000-000 2532411000000

Not available

SHIFTING PAUL ROLLER
PIN

09261-05003-000 0926105003000

$2,97

Unit Price

K S PAWL SPRING
SPRING

09440-04003-000 0944004003000

$2,97

Unit Price

LIFTER, GEAR SHIFT PAWL
LIFTER, PAWL

25331-11001-000 2533111001000

$10,97

Unit Price

SCREW

02122-06128-000

02122-06127-000

$2,97

Unit Price

DISCONTINUE
GUIDE, CAM

25341-18000-000 2534118000000

Not available

SCREW

02122-06128-000

02122-06127-000

$2,97

Unit Price

DISCONTINUE
WASHER (40*45*1)

09160-40001-000 0916040001000

Not available

R BEARING 25X32X12
BEARING

09263-25018-000 0926325018000

$29,97

Unit Price

STOPPER, CAM

25350-45100-000 2535045100000

Not available

SPRING

09443-09006-000 0944309006000

$5,97

Unit Price

STOPPER, GEAR SHIFT CAM NO.2
STOPPER, CAM

25351-30010-000 2535130010000

$14,97

Unit Price

HOLDER, GEAR SHIFT CAM STOP SPR
HOLDER, STOPPER

25354-30000-000 2535430000000

$11,97

Unit Price

SPRING GR SHIFT STOP
SPRING

09440-06020-000 0944006020000

$18,97

Unit Price

SPRING

09440-06018-000 0944006018000

Not available

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

PLATE, GEAR SHIFT CAM STOPPER
PLATE, STOPPER

25381-45400-000 2538145400000

$20,97

Unit Price

DISCONTINUE
PLATE, STOPPER

25381-45000-000 2538145000000

Not available

PIN (4X6)

06211-04063-000

04221-04069-000

$2,97

Unit Price

CIRCLIP

08331-11258-000 0833111258000

Not available

SHAFT, GEAR SHIFTING

25510-45100-000 2551045100000

Not available

SPACER

09180-12090-000 0918012090000

Not available

SHAFT RETURN SPRING

09444-26012-000

09444-26013-000

$5,97

Unit Price

SPRING

09444-26017-000 0944426017000

$8,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-01000-000

25671-01011-000

$6,97

Unit Price

LOCK WASHER

09162-08005-000 0916208005000

Not available

09285-12006
OIL SEAL

09285-12002-000

Not available

LEVER ASSY, GEAR SHIFTING

25600-45100-000 2560045100000

Not available

RUBBER, GEAR SHIFT PEDAL

25652-16500-000

25652-16510-000

$7,97

Unit Price

.BOLT

01107-08208-000 0110708208000

Not available

TERMINAL BASE ASSY, GEAR SHIFT
BODY, SWITCH

37720-45100-000 3772045100000

$149,97

Unit Price

O RING

09280-26003-000

Not available

SCREW

02112-05208-000

02112-75207-000

$3,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

LOCK WASHER

08322-21058-000 0832221058000

Not available

K S PAWL ROLLER
CONTACT, SWITCH

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

CLAMP(L:65)

09404-06401-000

09404-06039-000

$3,97

Unit Price

CLAMP (L:80)

09404-08401-000 0940408401000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki GS1000 of GS. Let us know if you have any questions.
