FAIRING

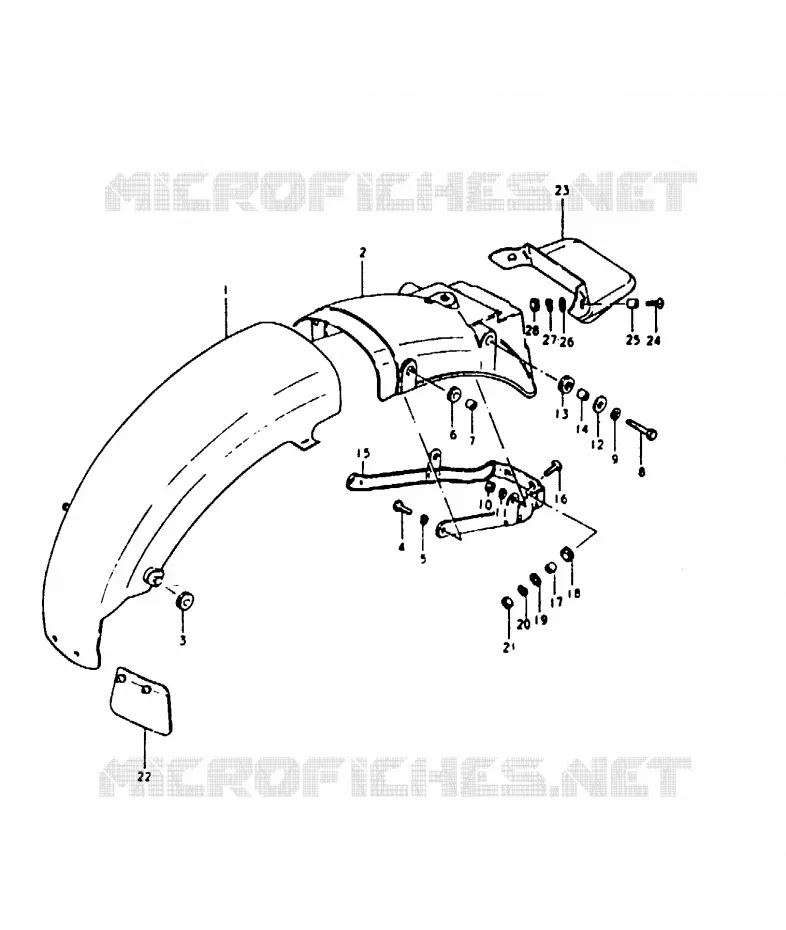

REAR FENDER FOR SUZUKI GS 1000 1980

REAR FENDER EXTENSION THIS PAGE TO BE DISUSED IN YOUR MARKET.

BODY, REAR FENDER FRONT

63112-49001-000 6311249001000

Not available

DISCONTINUE
BODY, REAR FENDER REAR

63113-49000-291 6311349000291

FRAME COVER CUSHION

09320-08013-000

09320-08509-000

$4,97

Unit Price

BOLT, ADJUSTER

01107-06208-000 0110706208000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

CUSHION (8.5X20X8)

09320-08007-000

09320-08510-000

$4,97

Unit Price

FENDER FRONT SPACER
SPACER

09180-06038-000 0918006038000

$2,97

Unit Price

BOLT

01204-08457-000 0120408457000

Not available

WASHER

08322-21068-000 0832221068000

Not available

NUT

08310-12088-000

08310-00087-000

$2,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

CL REL ARM WASHER
WASHER

09160-08032-000 0916008032000

$3,97

Unit Price

CUSHION(11.8X25X7.5)

09320-12011-000

09320-12090-000

$2,97

Unit Price

SPACER, 8.5X12X7.5

09180-08021-000

09180-08188-000

$4,97

Unit Price

REINFORCEMENT, REAR FENDER

63120-49000-000 6312049000000

Not available

6 X 20 CROSS SCREW
SCREW

02142-06207-000 0214206207000

$2,97

Unit Price

SPACER, 6.5X10X7

09180-06011-000

09180-06283-000

$3,97

Unit Price

FRAME COVER CUSHION

09320-08013-000

09320-08509-000

$4,97

Unit Price

WASHER(6.5X22X1.6)

09160-06012-000

09160-06054-000

$2,97

Unit Price

LOCK WASHER

08321-21068-000 0832121068000

Not available

NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000 0831011068000

Not available

DISCONTINUE
MUD GUARD

63411-31900-000 6341131900000

Not available

EXTENSION, REAR FENDER

63311-49030-000 6331149030000

Not available

SCREW 6X16

09125-06009-000

09125-06073-000

$2,97

Unit Price

SPACER(6.2X8.3X5.7)
SPACER

09180-06001-000 0918006001000

$3,97

Unit Price

MUD GUARD WASHER
WASHER

09160-06028-000 0916006028000

$2,97

Unit Price

LOCK WASHER

08321-21068-000 0832121068000

Not available

NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000 0831011068000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki GS1000 of GS. Let us know if you have any questions.
