TRANSMISSION

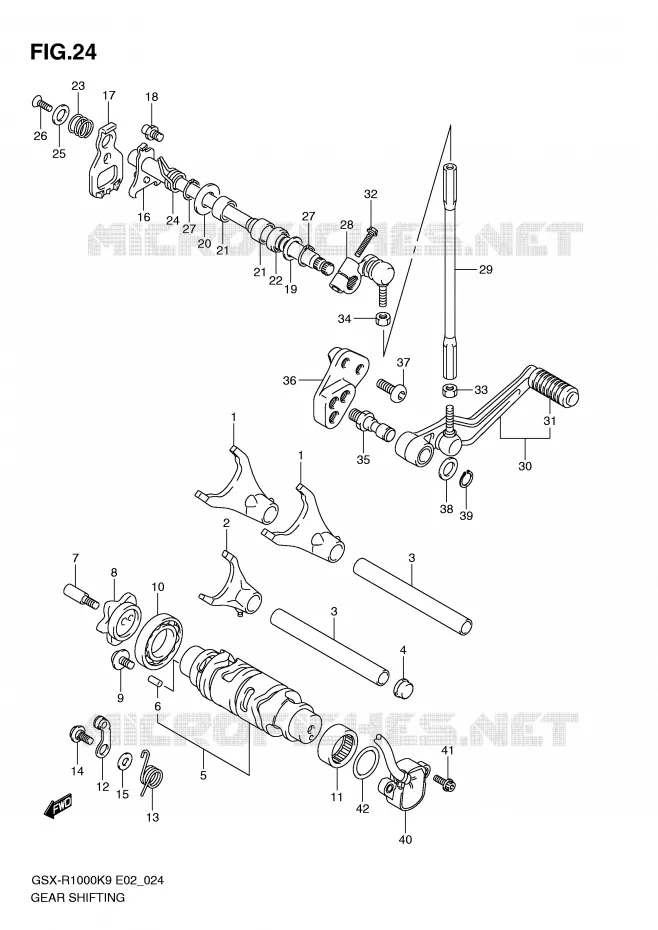

GEAR SHIFTING ASSY FOR SUZUKI GSX-R 1000 2010

GENERATOR SENSOR

Item numbers

FORK, GEAR SHIFT NO.1

25211-01H10-000

25211-01H11-000

$91,97

Unit Price

FORK, GEAR SHIFT NO.3

25231-01H01-000

25231-01H02-000

$91,97

Unit Price

SHAFT, GEAR SHIFT FORK(L:128)
SHAFT, GEAR SHIFT FORK

25411-27A00-000 2541127A00000

$40,97

Unit Price

PLUG, GEAR SHIFT FORK SHAFT

25712-37H00-000 2571237H00000

$9,97

Unit Price

CAM, GEAR SHIFT

25310-47H00-000 2531047H00000

$1 017,97

Unit Price

PIN
PIN, SHIFT CAM PLATE

04221-04089-000 0422104089000

$1,97

Unit Price

BOLT, GEAR SHIFT CAM PLATE

25312-42F01-000 2531242F01000

$12,97

Unit Price

PLATE, GEAR SHIFT CAM

25381-13E30-000 2538113E30000

$58,97

Unit Price

SCREW, 6X12
SCREW, GEAR SHIFT CAM RETAINER (6X12)

09136-06147-000 0913606147000

$4,97

Unit Price

BEARING, ROLLER KOYO
BEARING, GEAR SHIFT CAM (25X47X8)

09262-25006-000 0926225006000

$39,97

Unit Price

R BEARING 25X32X12
BEARING, GEAR SHIFT CAM, LH (25X32X12)

09263-25018-000 0926325018000

$29,97

Unit Price

25350-06G10
STOPPER, SHIFT CAM

25350-06G00-000 2535006G00000

Not available

SPRING, GEAR SHIFT CAM STOPPER
SPRING, GEAR SHIFT CAM

25355-01H00-000 2535501H00000

$5,97

Unit Price

BOLT
BOLT, SHIFT CAM STOPPER ARM (6X14.3)

09111-06041-000 0911106041000

$4,97

Unit Price

THRUST WASHER
WASHER, CAM STOPPER THRUST

08211-06141-000 0821106141000

$3,97

Unit Price

SHAFT, GEAR SHIFT

25510-47H00-000 2551047H00000

$126,97

Unit Price

PLATE, GEAR SHIFT CAM DRIVE

25512-06G10-000

25512-06G20-000

$38,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-01011-000 2567101011000

$6,97

Unit Price

WASHER 14X29X0.8
WASHER, GEAR SHIFT SHAFT, LH (14X29X0.8)

09160-14016-000 0916014016000

$3,97

Unit Price

SHIM(14X24X1)
WASHER, GEAR SHIFT SHAFT (14X24X1)

09181-14195-000 0918114195000

$3,97

Unit Price

BEARING, RR CUSHION
BEARING, GEAR SHIFT SHAFT (14X20X12)

09263-14027-000 0926314027000

$19,97

Unit Price

SEAL, OIL(14X22X6)
SEAL, GEAR SHIFT SHAFT OIL (14X22X6)

09283-14006-000 0928314006000

$7,97

Unit Price

SPRING, GEAR SHIFT PLATE RETURN
SPRING, GEAR SHIFT PLATE

25518-01H00-000 2551801H00000

$4,97

Unit Price

SPRING
SPRING, SHIFT SHAFT RETURN

09444-20001-000 0944420001000

$9,97

Unit Price

WASHER, GEAR SHIFT SHAFT END
WASHER, GEAR SHIFT SHAF END

25519-01H00-000 2551901H00000

$6,97

Unit Price

SCREW
BOLT, GEAR SHIFT SHAFT END (6X16)

09126-06014-000 0912606014000

$3,97

Unit Price

CIRCLIP
CIRCLIP, GEAR SHIFT SHAFT

08331-3114A-000 083313114A000

$3,97

Unit Price

ARM, GEAR SHIFT LINK

25520-01H00-000

25520-01H01-000

$104,97

Unit Price

ROD, GEAR SHIFT LINK

25525-01H00-000 2552501H00000

$54,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-47H00-000

25600-47H01-000

$223,97

Unit Price

RUBBER, GEAR SHIFT PEDAL

25652-20C00-000 2565220C00000

$7,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

NUT
NUT, GEAR SHIFT LINK ROD, L

09140-06025-000 0914006025000

$2,97

Unit Price

NUT
NUT, GEAR SHIFT LINK ROD

09140-06020-000 0914006020000

$3,97

Unit Price

SHAFT, GEAR SHIFT LEVER

25617-03F10-000 2561703F10000

$18,97

Unit Price

BRACKET, GEAR SHIFT LEVER

25681-47H00-000

25681-47H01-000

$86,97

Unit Price

BOLT, FR FOOTREST BRK
BOLT, GEAR SHIFT LEVER BRCKT (8X20)

09106-08167-000 0910608167000

$5,97

Unit Price

SEAL WASHER
WASHER, GEAR SHIFT LEVER (12.5X20X1)

09160-12011-000

Not available

CIRCLIP
CIRCLIP, GEAR SHIFT LEVER

08331-3112A-000 083313112A000

$2,97

Unit Price

SENSOR ASSY, GEAR POSITION

37730-01H01-000

37730-14J01-000

$111,97

Unit Price

BOLT
BOLT, GEAR SHIFT SWITCH (5X16)

09106-05023-000 0910605023000

$4,97

Unit Price

O RING
O-RING, GEAR SHIFT LEVER (D:2.4, ID:26.2)

09280-26005-000 0928026005000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
