REAR CALIPER

REAR MASTER CYLINDER FOR SUZUKI GSX-R 1000 2019

OPTIONS

Item numbers

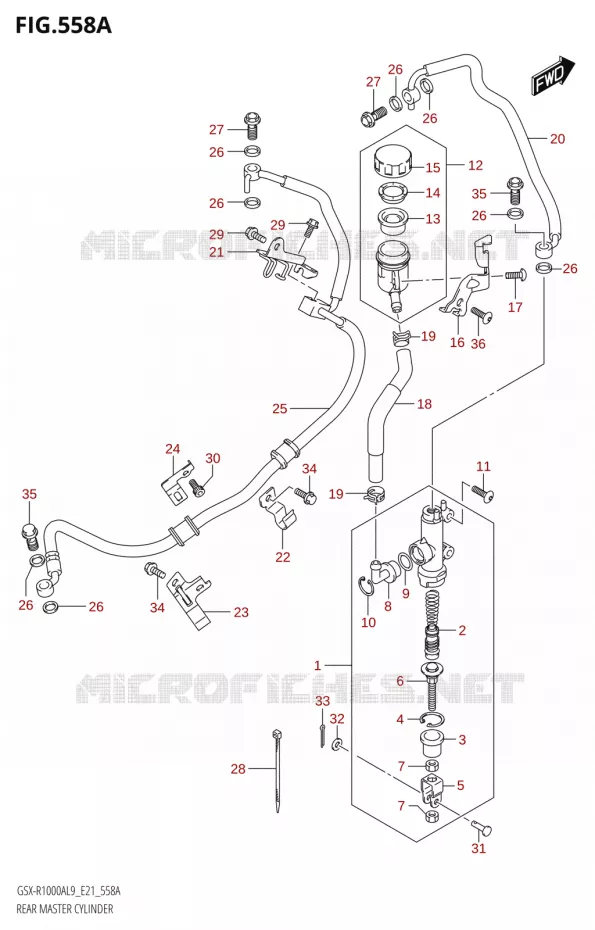

REAR MASTER CYLINDER Suzuki MOTO 1000 GSX-R 2019 GSX-R1000A L9 (E21)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
26
26
26
26
26
26
26
27
27
28
29
29
30
31
32
33
34
34
35
35
36
1
CYLINDER ASSY, REAR MASTER

69600-47H30-000  

69600-47H31-000
 6960047H30000

Unit Price

2
PISTON CUP SET RR
.PISTON/CUP SET

69600-34810-000   6960034810000

6960034810000

Unit Price

3
.BOOT
.BOOT

69691-00A00-000   6969100A00000

6969100A00000

Unit Price

4
.CIRCLIP

69665-47H00-000   6966547H00000

6966547H00000

Unit Price

5
.YOKE

69692-47H00-000   6969247H00000

6969247H00000

Unit Price

6
.ROD, PUSH

69670-40A00-000   6967040A00000

6967040A00000

Unit Price

7
.NUT

69693-47H00-000   6969347H00000

6969347H00000

Unit Price

8
.CONNECTOR
.CONNECTOR

69672-00B20-000   6967200B20000

6967200B20000

Unit Price

9
O RING CONECTOR<br />.O RING
O RING CONECTOR
.O RING

69686-34200-000   6968634200000

6968634200000

Unit Price

10
.CIRCLIP
.CIRCLIP

69674-00B20-000   6967400B20000

6967400B20000

Unit Price

11
BOLT, REAR MASTER CYLINDER

09139-06224-000   0913906224000

0913906224000

Unit Price

12
TANK ASSY, REAR RESERVOIR

69740-17K00-000   6974017K00000

6974017K00000

Unit Price

13
.DIAPHRAGM

59667-33J00-000   5966733J00000

5966733J00000

Unit Price

14
.PLATE

59668-33J00-000   5966833J00000

5966833J00000

Unit Price

15
.CAP

69669-17K00-000   6966917K00000

6966917K00000

Unit Price

16
BRACKET COMP, RR RESERVOIR TANK
BRACKET, RR RESERVOIR TANK

69750-17K00-000   6975017K00000

6975017K00000

Unit Price

17
BOLT
SCREW (6X16)

09139-06139-000   0913906139000

0913906139000

Unit Price

18
HOSE COMP, RR RESERVOIR TANK
HOSE, RR RESERVOIR TANK

69730-17K00-000   6973017K00000

6973017K00000

Unit Price

19
CLIP

09401-12412-000   0940112412000

0940112412000

Unit Price

20
HOSE, RR MASTER TO UNIT

69240-17K20-000   6924017K20000

6924017K20000
Not available
21
CLAMP COMP, RR BRAKE HOSE
CLAMP, RR BRAKE HOSE

69260-17K00-000   6926017K00000

6926017K00000

Unit Price

22
CLAMP, RR BRAKE HOSE

69268-17K00-000   6926817K00000

6926817K00000

Unit Price

23
CLAMP COMP, RR BRAKE HOSE
CLAMP, RR BRAKE HOSE

69270-17K00-000   6927017K00000

6927017K00000

Unit Price

24
CLAMP, RR BRAKE HOSE

69272-17K00-000   6927217K00000

6927217K00000

Unit Price

25
HOSE, UNIT TO RR CLPR

69480-17K30-000   6948017K30000

6948017K30000
Not available
26
WASHER<br />WASHER (10X15X1.5)
WASHER
WASHER (10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

27
BOLT, BRAKE FLUID<br />UNION (10X1.00X22)
BOLT, BRAKE FLUID
UNION (10X1.00X22)

09360-10062-000   0936010062000

0936010062000

Unit Price

28
CLAMP<br />CLAMP (L:145)
CLAMP
CLAMP (L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

29
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

30
BOLT
BOLT

01547-0612B-000   015470612B000

015470612B000

Unit Price

31
PIN<br />PIN (6X18.2)
PIN
PIN (6X18.2)

09200-06068-000   0920006068000

0920006068000

Unit Price

32
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

33
PIN
PIN

04111-2015A-000   041112015A000

041112015A000

Unit Price

34
BOLT
BOLT

01547-0612B-000   015470612B000

015470612B000

Unit Price

35
BOLT, BRAKE FLUID

09360-10042-000  

09360-10062-000
 0936010042000

Unit Price

36
SCREW (6X16)

09139-06214-000   0913906214000

0913906214000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
