RADIATOR

RADIATOR HOSE FOR SUZUKI GSX-S 1000 2015

ANTI POLLUTION SYSTEM

Item numbers

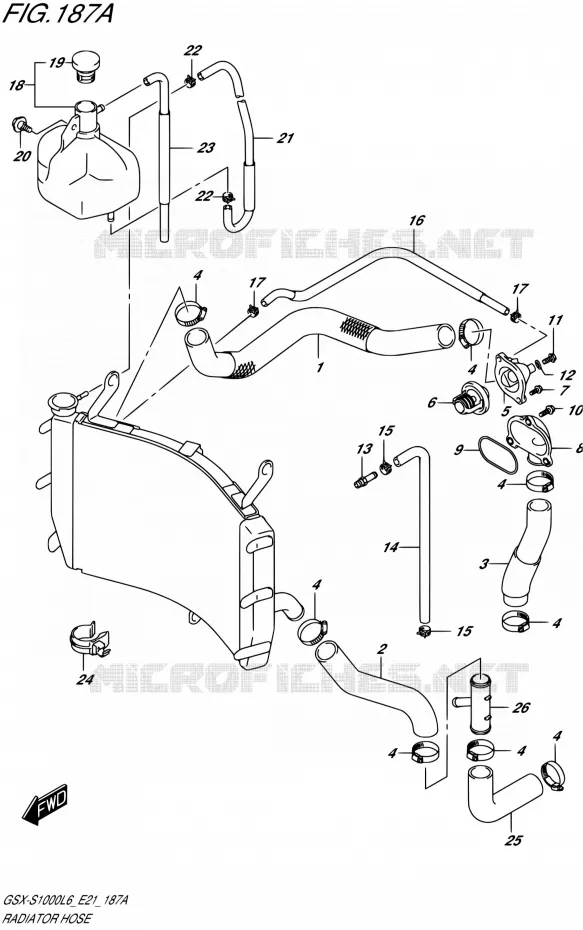

RADIATOR HOSE Suzuki MOTO 1000 GSX-S 2015 GSX-S1000UF L6 (E21)
1
2
3
4
4
4
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
17
18
19
20
21
22
22
23
24
25
26
1
HOSE, RADIATOR INLET

17851-04K00-000   1785104K00000

1785104K00000
Not available
2
HOSE, RDTR OUTLET
HOSE, RADIATOR OUTLET

17852-04K00-000   1785204K00000

1785204K00000

Unit Price

3
HOSE, CYLINDER INLET

17853-40F10-000   1785340F10000

1785340F10000

Unit Price

4
CLAMP, WATER HOSE
CLAMP

09402-35501-000   0940235501000

0940235501000

Unit Price

5
COVER, THERMOSTAT
COVER, THERMOSTAT

17661-35F00-000   1766135F00000

1766135F00000

Unit Price

6
THERMOSTAT COMP, WATER

17670-06G60-000  

17670-06G61-000
 1767006G60000

Unit Price

7
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

8
CONNECTOR,CYLINDER WATER INLET<br />CONNECTOR, CYLINDER JOINT
CONNECTOR, CYLINDER WATER INLET
CONNECTOR, CYLINDER JOINT

17861-33E20-000   1786133E20000

1786133E20000

Unit Price

9
O RING,CYL WATER CONNECTOR<br />O RING
O RING, CYL WATER CONNECTOR
O RING

17863-33E00-000   1786333E00000

1786333E00000

Unit Price

10
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

11
UNION BOLT,AIR VENT<br />BOLT, THERMOSTAT COVER AIR
UNION BOLT, AIR VENT
BOLT, THERMOSTAT COVER AIR

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

12
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

13
UNION
UNION

09362-09011-000   0936209011000

0936209011000

Unit Price

14
HOSE, WATER BYPASS

17854-04K00-000   1785404K00000

1785404K00000

Unit Price

15
CLIP
CLIP

09401-12414-000   0940112414000

0940112414000

Unit Price

16
HOSE, WATER AIR BLEED

17857-04K00-000   1785704K00000

1785704K00000

Unit Price

17
(CA)CLIP<br />CLIP
(CA)CLIP
CLIP

09401-10409-000   0940110409000

0940110409000

Unit Price

18
TANK ASSY, RESERVOIR

17910-04K00-000   1791004K00000

1791004K00000

Unit Price

19
CAP, WATER RESERVOIR TANK
.CAP

17931-31J00-000   1793131J00000

1793131J00000

Unit Price

20
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

21
HOSE, RESERVOIR TANK INLET

17981-04K00-000   1798104K00000

1798104K00000
Not available
22
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
23
HOSE, RSVR TANK OVER FLOW
HOSE, RESERVOIR TANK OVER FLOW

17982-04K00-000   1798204K00000

1798204K00000

Unit Price

24
CLAMP

09408-00321-000   0940800321000

0940800321000

Unit Price

25
HOSE, RDTR OUTLET NO.2
HOSE, RADIATOR OUTLET NO.2

17855-04K00-000   1785504K00000

1785504K00000

Unit Price

26
PIPE, WATER HOSE JOINT

17881-04K00-000   1788104K00000

1788104K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE of your Suzuki of GSX-S. Let us know if you have any questions.
