Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

BRACKET

FOOTREST FOR SUZUKI GSX-S 1000 2016

REAR FAIRING (PGZ,AV4)

Item numbers

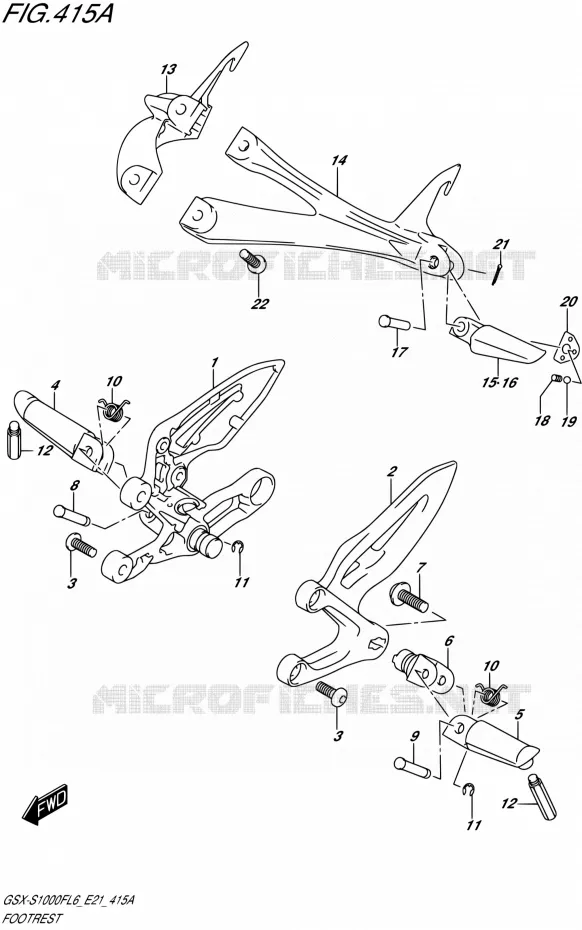

FOOTREST Suzuki MOTO 1000 GSX-S 2016 GSX-S1000F L6 (E21)
1
2
3
3
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
1
43510-48K00
BRACKET, FRONT FOOTREST RH

43510-04K00-000   4351004K00000

4351004K00000
Not available
2
BRACKET, FR FOOTREST, L
BRACKET, FRONT FOOTREST LH

43521-04K00-000   4352104K00000

4352104K00000

Unit Price

3
BOLT
BOLT (8X23)

09106-08181-000   0910608181000

0910608181000

Unit Price

4
BAR, FRONT FOOTREST, R
BAR, FOOTREST RH

43516-35F10-000   4351635F10000

4351635F10000

Unit Price

5
BAR, FRONT FOOTREST, L
BAR, FOOTREST LH

43526-35F10-000   4352635F10000

4352635F10000

Unit Price

6
HOLDER, FOOTREST LH

43530-16G00-000  

43540-04K00-000
 4353016G00000

Unit Price

7
BOLT<br />BOLT (10X28)
BOLT
BOLT (10X28)

09106-10064-000   0910610064000

0910610064000

Unit Price

8
PIN

09208-08019-000   0920808019000

0920808019000

Unit Price

9
PIN

09208-08018-000   0920808018000

0920808018000

Unit Price

10
SPRING

09448-14037-000   0944814037000

0944814037000

Unit Price

11
E RING
E RING

08332-1106A-000  

08332-1106B-000
 083321106A000

Unit Price

12
SENSOR, FOOTREST
BOLT, BANK SENSOR

43576-48B30-000   4357648B30000

4357648B30000

Unit Price

13
BRACKET , PILLION FOOTREST RH

43811-04K00-000   4381104K00000

4381104K00000

Unit Price

14
BRACKET , PILLION FOOTREST LH

43821-04K00-000   4382104K00000

4382104K00000

Unit Price

15
BAR, PILLION FOOTREST, R

43611-37H00-000  

43611-37H20-000
 4361137H00000

Unit Price

16
BAR, PILLION FOOTREST, L

43621-37H00-000  

43621-37H20-000
 4362137H00000

Unit Price

17
FITTING PIN<br />PIN
FITTING PIN
PIN

09200-08002-000   0920008002000

0920008002000

Unit Price

18
SPRING,STAND GRIP<br />SPRING
SPRING, STAND GRIP
SPRING

09440-05003-000   0944005003000

0944005003000

Unit Price

19
STEEL BALL 7/32<br />BALL
STEEL BALL 7/32
BALL

06111-07004-000   0611107004000

0611107004000

Unit Price

20
PLATE, PILLION FOOTREST
PLATE

43816-01H20-000   4381601H20000

4381601H20000

Unit Price

21
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2015A-000   041112015A000

041112015A000

Unit Price

22
BOLT (8X23)

09106-08186-000   0910608186000

0910608186000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki GSX-S 1000 F of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 1000 GSX-S 2016

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 GSX-S 2016

Select your Suzuki 2016 model

1000 GSX-S 2016 GSX-S1000F L6 (E21)

GSX-S 1000 F

Suzuki GSX-S

Displacement: 1000 cc
Year: 2016
Model code GSX-S1000F L6 (E21)
