CASING

CASING FOR SUZUKI GSX-S 1000 2016

SUMP - OIL PUMP

Item numbers

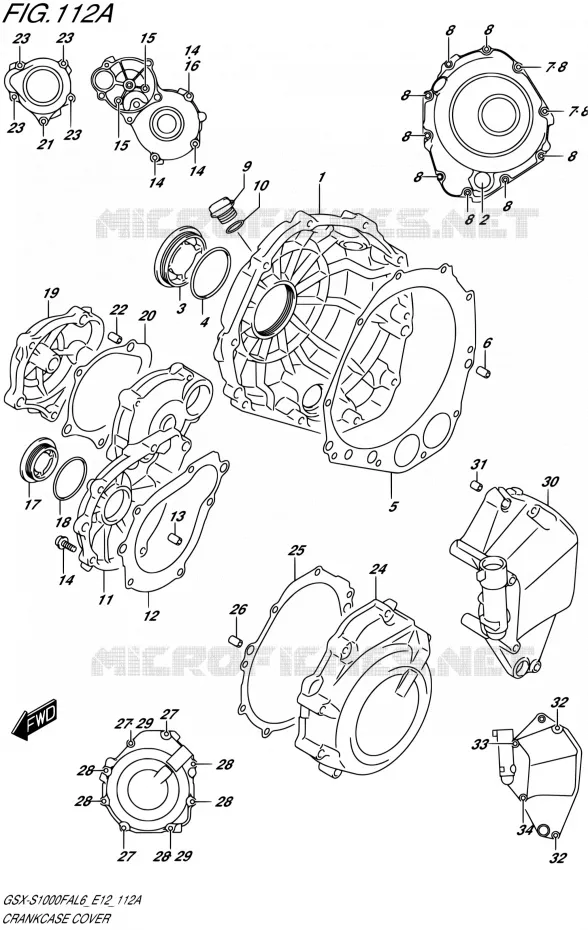

CASING Suzuki MOTO 1000 GSX-S 2016 GSX-S1000FA L6 (E12)
1
2
3
4
5
6
7
7
8
8
8
8
8
8
8
8
8
8
9
10
11
12
13
14
14
14
14
15
15
16
17
18
19
20
21
22
23
23
23
23
24
25
26
27
27
27
28
28
28
28
28
29
29
30
31
32
32
33
34
1
COVER, CLUTCH

11340-04K00-000   1134004K00000

1134004K00000

Unit Price

2
LENS,OIL LEVEL CHECK<br />.LENS, OIL LEVEL
LENS, OIL LEVEL CHECK
.LENS, OIL LEVEL

11971-33210-000   1197133210000

1197133210000

Unit Price

3
CAP, CLUTCH RELEASE ADJUST

11342-41G10-000   1134241G10000

1134241G10000

Unit Price

4
O RING

31156-17E00-000   3115617E00000

3115617E00000

Unit Price

5
GASKET, CLUTCH COVER

11482-40F10-000   1148240F10000

1148240F10000

Unit Price

6
PIN
PIN

04211-09189-000   0421109189000

0421109189000

Unit Price

7
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
8
BOLT, CL COV/MAG COV,
BOLT (6X30)

09103-06213-000   0910306213000

0910306213000

Unit Price

9
PLUG,ENGINE OIL FILLER<br />PLUG, ENGINE OIL FILTER
PLUG, ENGINE OIL FILLER
PLUG, ENGINE OIL FILTER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

10
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

11
COVER, STARTER CLUTCH

11381-04K00-000   1138104K00000

1138104K00000

Unit Price

12
GASKET,STARTER CLUTCH COVER<br />GASKET
GASKET, STARTER CLUTCH COVER
GASKET

11491-33E02-000   1149133E02000

1149133E02000

Unit Price

13
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

14
BOLT,ST CL COV/ST ID<br />BOLT (6X25)
BOLT, ST CL COV/ST ID
BOLT (6X25)

09103-06212-000   0910306212000

0910306212000

Unit Price

15
BOLT, ST CL COV/ST ID
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price

16
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
17
PLUG,36X10<br />PLUG
PLUG, 36X10
PLUG

09259-36021-000   0925936021000

0925936021000

Unit Price

18
O-RING,CRANK SHAFT<br />O RING (D:3.1,ID:32.7)
O-RING, CRANK SHAFT
O RING (D:3.1, ID:32.7)

09280-33004-000   0928033004000

0928033004000

Unit Price

19
CAP, STARTER IDLE GEAR

11382-04K00-000   1138204K00000

1138204K00000

Unit Price

20
GASKET, START IDLE GR CAP
GASKET

11492-04K00-000   1149204K00000

1149204K00000

Unit Price

21
BOLT (6X60)

09103-06261-000   0910306261000

0910306261000

Unit Price

22
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

23
BOLT, ST CL COV/ST ID
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price

24
COVER, MAGNETO

11351-04K00-000   1135104K00000

1135104K00000

Unit Price

25
GASKET, MAGNETO COVER

11483-18G00-000   1148318G00000

1148318G00000

Unit Price

26
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

27
BOLT, CL COV/MAG COV,
BOLT (6X30)

09103-06213-000   0910306213000

0910306213000

Unit Price

28
BOLT, SPROCKET, COV L4
BOLT (6X40)

09103-06215-000   0910306215000

0910306215000

Unit Price

29
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
30
COVER, ENG SPROCKET
COVER, ENGINE SPROCKET

11361-04K00-000   1136104K00000

1136104K00000

Unit Price

31
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

32
BOLT, SPROCKET, COV L5
BOLT (6X55)

09103-06216-000   0910306216000

0910306216000

Unit Price

33
BOLT (6X95)

09103-06227-000   0910306227000

0910306227000

Unit Price

34
BOLT (6X80)

09103-06263-000   0910306263000

0910306263000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki GSX-S 1000 F ABS of GSX-S. Let us know if you have any questions.
