REAR CALIPER

REAR MASTER CYLINDER FOR SUZUKI GSX-S 1000 2017

OPTIONS

Item numbers

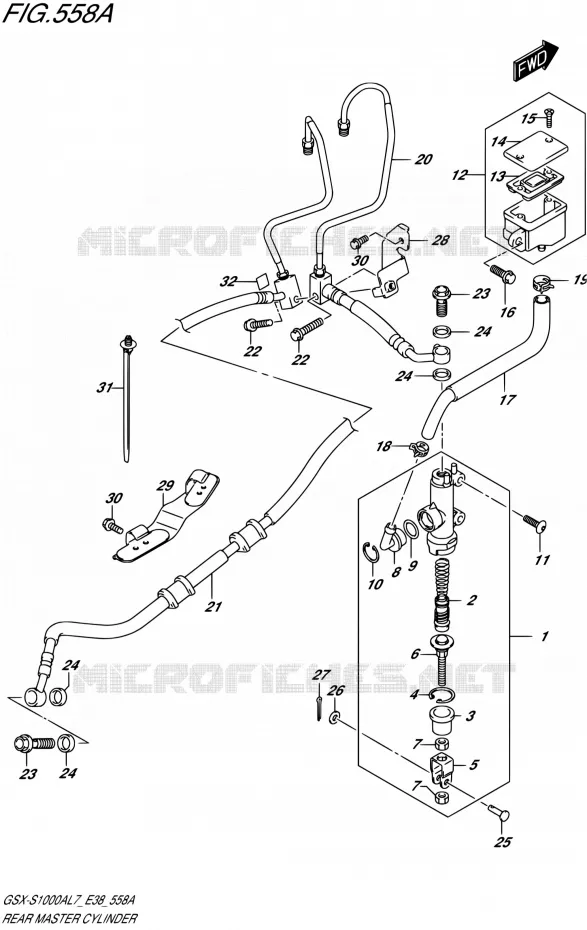

REAR MASTER CYLINDER Suzuki MOTO 1000 GSX-S 2017 GSX-S1000A L7 (E38)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
16
17
18
20
21
22
22
23
23
24
24
24
24
25
26
27
28
29
30
30
31
32
1
CYLINDER ASSY, RR MASTER
CYLINDER ASSY, REAR MASTER

69600-47H10-000   6960047H10000

6960047H10000

Unit Price

2
PISTON CUP SET RR
.PISTON / CAP SET

69600-34810-000   6960034810000

6960034810000

Unit Price

3
.BOOT
.BOOT

69691-00A00-000   6969100A00000

6969100A00000

Unit Price

4
.CIRCLIP

69665-47H00-000   6966547H00000

6966547H00000

Unit Price

5
.YOKE

69692-44H00-000   6969244H00000

6969244H00000

Unit Price

6
.ROD, PUSH

69670-40A00-000   6967040A00000

6967040A00000

Unit Price

7
.NUT
.NUT

69693-05A00-000   6969305A00000

6969305A00000

Unit Price

8
.CONNECTOR
.CONNECTOR

69672-00B20-000   6967200B20000

6967200B20000

Unit Price

9
O RING CONECTOR<br />.O RING
O RING CONECTOR
.O RING

69686-34200-000   6968634200000

6968634200000

Unit Price

10
.CIRCLIP
.CIRCLIP

69674-00B20-000   6967400B20000

6967400B20000

Unit Price

11
SCREW (6X20)
SCREW (6X20)

09139-06028-000   0913906028000

0913906028000

Unit Price

12
TANK ASSY, RR RESERVOIR
TANK ASSY, REAR RESERVOIR

69740-44G00-000   6974044G00000

6974044G00000

Unit Price

13
.DIAPHRAGM
.DIAPHRAGM

59667-04700-000   5966704700000

5966704700000

Unit Price

14
.CAP
.CAP

59669-05D00-000   5966905D00000

5966905D00000

Unit Price

15
.SCREW
.SCREW

69689-04A00-000   6968904A00000

6968904A00000

Unit Price

16
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

17
HOSE, RR RESERVOIR TANK

69730-04K00-000   6973004K00000

6973004K00000

Unit Price

18
CLIP

09401-12404-000   0940112404000

0940112404000

Unit Price

19
CLIP

09401-15407-000  

0940115407000
Not available
20
HOSE

69200-04K00-000  

69200-04K01-000
 6920004K00000

Unit Price

21
HOSE ASSY, RR UNIT TO CLPR

69400-04K00-000  

69400-04K01-000
 6940004K00000

Unit Price

22
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

23
BOLT, BRAKE FLUID<br />UNION
BOLT, BRAKE FLUID
UNION

09360-10062-000   0936010062000

0936010062000

Unit Price

24
WASHER<br />WASHER (10X15X1.5)
WASHER
WASHER (10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

25
PIN<br />PIN (6X18.2)
PIN
PIN (6X18.2)

09200-06068-000   0920006068000

0920006068000

Unit Price

26
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

27
PIN
PIN

04111-2015A-000   041112015A000

041112015A000

Unit Price

28
69260-04810
CLAMP, RR BRAKE HOSE

69260-04K00-000   6926004K00000

6926004K00000
Not available
29
GUIDE, RR BRAKE HOSE

69270-04K00-000   6927004K00000

6927004K00000

Unit Price

30
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

31
CLAMP
CLAMP (L:154)

09407-17403-000   0940717403000

0940717403000

Unit Price

32
PROTECTOR, BRAKE HOSE

69411-04K00-000   6941104K00000

6941104K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR MASTER CYLINDER of your Suzuki GSX-S 1000 ABS of GSX-S. Let us know if you have any questions.
