SWINGARM FOR SUZUKI GSX-S 1000 2018

FRONT FORKRTISSEUR AVT (GSX-S1000FAL8 E21)

Item numbers

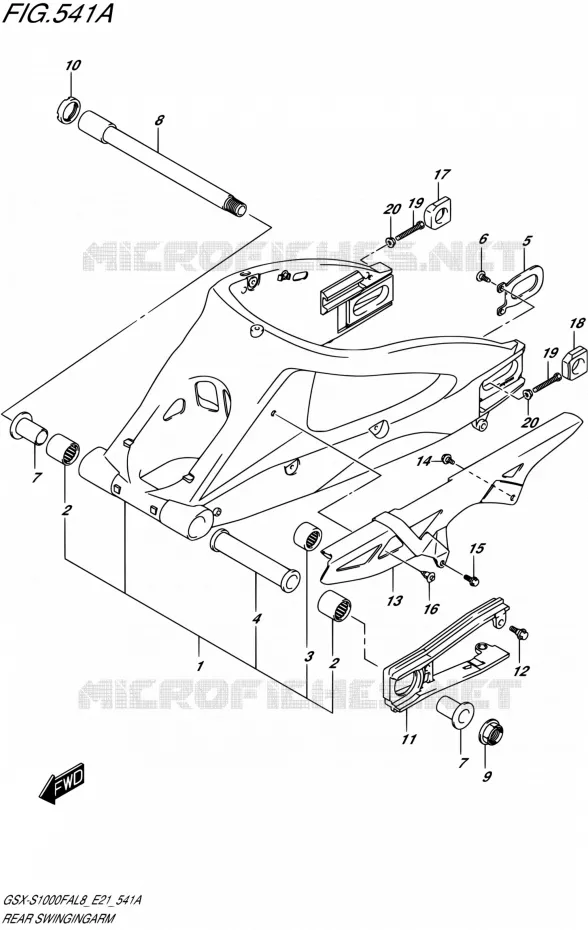

SWINGARM Suzuki MOTO 1000 GSX-S 2018 GSX-S1000FAL8 / GSX-S1000FZAL8 E21
1
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
1
SWINGINGARM ASSY, REAR

61000-47H10-YAP  

61000-47H11-YAP
 6100047H10YAP

Unit Price

2
BEARING, RR SWGARM PI

09263-27013-000  

09263-27015-000
 0926327013000

Unit Price

3
BEARING<br />.BEARING (20X27X30)
BEARING
.BEARING (20X27X30)

09263-20070-000   0926320070000

0926320070000

Unit Price

4
SPACER, RR SWG PVT CTR
.SPACER, CENTER

61281-41G00-000   6128141G00000

6128141G00000

Unit Price

5
PLATE, RR SWING ARM BRKT
PLATE, BRACKET

61124-41G00-000   6112441G00000

6112441G00000

Unit Price

6
SCREW 6X12

09125-06060-000  

02142-06127-000
 0912506060000

Unit Price

7
SPACER, RR SWGARM PIVOT BEARING
SPACER, BEARING

61251-41G00-000   6125141G00000

6125141G00000

Unit Price

8
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-01H00-000   6121101H00000

6121101H00000

Unit Price

9
NUT
NUT

09159-20006-000   0915920006000

0915920006000

Unit Price

10
NUT, RR SWGARM PIVOT BOLT
NUT, PIVOT

61214-42E10-000   6121442E10000

6121442E10000

Unit Price

11
BUFFER, CHAIN TOUCH DEFENSE

61273-47H00-000  

61273-47H01-000
 6127347H00000

Unit Price

12
BOLT
BOLT (6X17.8)

09111-06072-000   0911106072000

0911106072000

Unit Price

13
61310-04K01
CASE, CHAIN

61310-04K00-000   6131004K00000

6131004K00000
Not available
14
BOLT (6X12)
BOLT (6X12)

09111-06107-000   0911106107000

0911106107000

Unit Price

15
BOLT
BOLT

01550-0616B-000   015500616B000

015500616B000

Unit Price

16
CLIP (BLACK)

09409-08308-5ES   09409083085ES

09409083085ES

Unit Price

17
ADJUSTER,CHAIN LH<br />ADJUSTER, CHAIN RH
ADJUSTER, CHAIN LH
ADJUSTER, CHAIN RH

61445-40F00-000   6144540F00000

6144540F00000

Unit Price

18
ADJUSTER,CHAIN RH<br />ADJUSTER, CHAIN LH
ADJUSTER, CHAIN RH
ADJUSTER, CHAIN LH

61446-40F00-000   6144640F00000

6144640F00000

Unit Price

19
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

20
NUT

08316-1008A-000   083161008A000

083161008A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki GSX-S 1000 F of GSX-S. Let us know if you have any questions.
