CYLINDER HEAD

CRANKCASE FOR SUZUKI GSX-S 1000 2019

CRANKCASE COVER

Item numbers

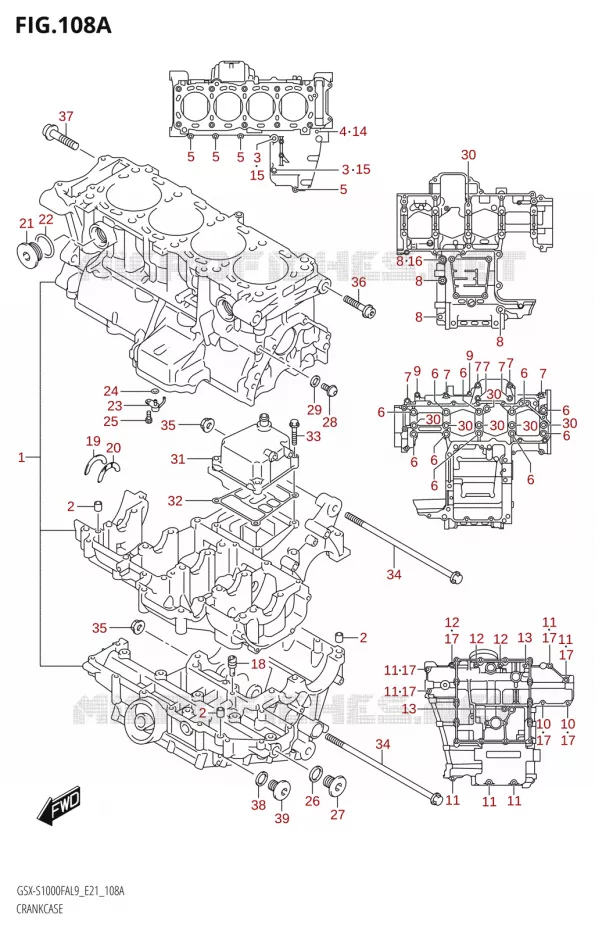

CRANKCASE Suzuki MOTO 1000 GSX-S 2019 GSX-S1000FA L9 (E21)
1
2
2
2
3
3
4
5
5
5
5
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
8
8
8
8
9
9
10
10
11
11
11
11
11
11
11
12
12
12
13
13
14
15
15
16
17
17
17
17
17
17
17
18
19
20
20
20
20
20
20
20
21
22
23
24
25
26
27
28
29
30
30
30
30
30
30
30
31
32
33
34
34
35
35
36
37
38
39
1
CRANKCASE SET

11301-04850-000   1130104850000

1130104850000

Unit Price

2
.PIN,CRANKCASE
.PIN, CRANKCASE

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

3
.BOLT(8X120)

09106-08198-000   0910608198000

0910608198000

Unit Price

4
.BOLT

01547-0680A-000   015470680A000

015470680A000

Unit Price

5
.BOLT
.BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

6
.BOLT(9X95)
.BOLT(9X95)

09103-09012-000   0910309012000

0910309012000

Unit Price

7
.BOLT(8X55)
.BOLT(8X55)

09103-08339-000   0910308339000

0910308339000

Unit Price

8
.BOLT

07120-0865A-000   071200865A000

071200865A000

Unit Price

9
.BOLT
.BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

10
.BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

11
.BOLT
.BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

12
BOLT
BOLT

01547-0660A-000  

01547-0660B-000
 015470660A000

Unit Price

13
.BOLT

01547-0670A-000   015470670A000

015470670A000

Unit Price

14
GASKET<br />.GASKET(5.8X13X1.2)
GASKET
.GASKET(5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
15
.GASKET(8.2X14X1)
.GASKET(8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

16
.GASKET(8.2X14X1)
.GASKET(8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

17
GASKET<br />.GASKET(5.8X13X1.2)
GASKET
.GASKET(5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
18
JET(140)<br />.JET(#140)
JET(140)
.JET(#140)

09493-28012-000   0949328012000

0949328012000

Unit Price

19
BEARING,CRANK THRUST(GREEN)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(GREEN)
.BEARING, CRANK THRUST

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

20
BEARING,CRANK THRUST(BROWN)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(BROWN)
.BEARING, CRANK THRUST

12228-48B00-0B0   1222848B000B0

1222848B000B0

Unit Price

20
BEARING LEFT RED<br />.BEARING,CRANK THRUST
BEARING LEFT RED
.BEARING, CRANK THRUST

12228-48B00-0C0   1222848B000C0

1222848B000C0

Unit Price

20
BEARING,CRANK THRUST(YELLOW)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(YELLOW)
.BEARING, CRANK THRUST

12228-48B00-0D0   1222848B000D0

1222848B000D0

Unit Price

20
BEARING,CRANK THRUST(GREEN)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(GREEN)
.BEARING, CRANK THRUST

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

20
BEARING,CRANK THRUST(BLUE)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(BLUE)
.BEARING, CRANK THRUST

12228-48B00-0F0   1222848B000F0

1222848B000F0

Unit Price

20
BEARING,CRANK THRUST(ORANGE)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(ORANGE)
.BEARING, CRANK THRUST

12228-48B00-0G0   1222848B000G0

1222848B000G0

Unit Price

20
BEARING,CRANK THRUST(BLACK)<br />.BEARING,CRANK THRUST
BEARING, CRANK THRUST(BLACK)
.BEARING, CRANK THRUST

12228-48B00-0H0   1222848B000H0

1222848B000H0

Unit Price

21
.PLUG, WATER JACKET

11318-35F00-000   1131835F00000

1131835F00000

Unit Price

22
.O-RING(D:3.1, ID:19.4)

09280-20002-000   0928020002000

0928020002000

Unit Price

23
JET, PISTON COOLING

11390-21H01-000  

1139021H01000
Not available
24
O RING<br />O-RING(D:1.2,ID:4)
O RING
O-RING(D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

25
BOLT(6X12)
BOLT(6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

26
GASKET OIL GALLERY<br />GASKET(16X22X2)
GASKET OIL GALLERY
GASKET(16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

27
PLUG,OIL GALL NO.1<br />PLUG(16X12)
PLUG, OIL GALL NO.1
PLUG(16X12)

09248-16013-000   0924816013000

0924816013000

Unit Price

28
PLUG,OIL GALL<br />PLUG(10X10)
PLUG, OIL GALL
PLUG(10X10)

09248-10010-000   0924810010000

0924810010000

Unit Price

29
CRNK DRAIN PLUG GASK<br />GASKET(10X14X3.6)
CRNK DRAIN PLUG GASK
GASKET(10X14X3.6)

09168-10002-000   0916810002000

0916810002000

Unit Price

30
O-RING(D:1.9,ID:7.8)
O-RING(D:1.9, ID:7.8)

09280-08012-000   0928008012000

0928008012000

Unit Price

31
COVER, BREATHER

11370-04K00-000   1137004K00000

1137004K00000

Unit Price

32
GASKET, BREATHER COVER

11484-35F00-000   1148435F00000

1148435F00000

Unit Price

33
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

34
BOLT(10X225)
BOLT(10X225)

09103-10205-000   0910310205000

0910310205000

Unit Price

35
NUT<br />NUT(M10)
NUT
NUT(M10)

09159-10115-000   0915910115000

0915910115000

Unit Price

36
BOLT, ENG MTG HEAD
BOLT(10X45)

09106-10069-000   0910610069000

0910610069000

Unit Price

37
BOLT, ENG MTG HEAD
BOLT(10X55)

09106-10070-000   0910610070000

0910610070000

Unit Price

38
GASKET,13.8X18.8X0.4<br />GASKET(13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET(13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

39
PLUG, CYL HEAD<br />PLUG(14X12)
PLUG, CYL HEAD
PLUG(14X12)

09248-14011-000  

0924814011000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki GSX-S 1000 F of GSX-S. Let us know if you have any questions.
