STARTER MOTOR FOR SUZUKI GSX-S 1000 2019

GENERATOR

Item numbers

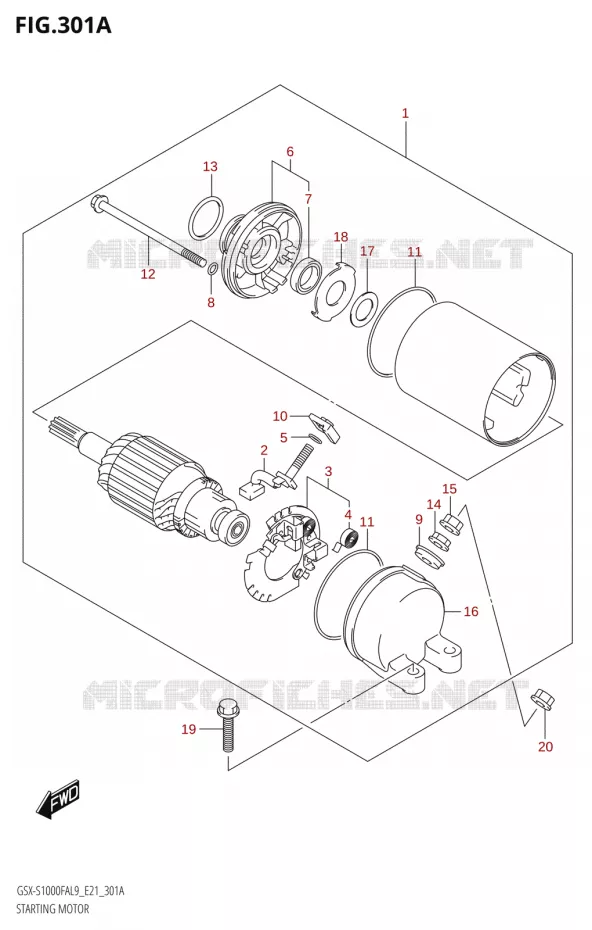

STARTER MOTOR Suzuki MOTO 1000 GSX-S 2019 GSX-S1000FAUF L9 (E21)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
1
MOTOR ASSY, STARTING

31100-04K00-000   3110004K00000

3110004K00000

Unit Price

2
BRUSH SUB ASSY,STARTING MOTOR<br />.BRUSH
BRUSH SUB ASSY, STARTING MOTOR
.BRUSH

31130-38300-000   3113038300000

3113038300000

Unit Price

3
.HOLDER,BRUSH
.HOLDER, BRUSH

31132-27A01-000   3113227A01000

3113227A01000

Unit Price

4
..SPRING
..SPRING

31135-65010-000   3113565010000

3113565010000

Unit Price

5
.O-RING
.O-RING

31143-38300-000   3114338300000

3114338300000

Unit Price

6
.HOUSING ASSY, STARTER

31150-04K00-000   3115004K00000

3115004K00000

Unit Price

7
SEAL,OIL<br />..OIL SEAL
SEAL, OIL
..OIL SEAL

31153-49210-000   3115349210000

3115349210000

Unit Price

8
.O-RING
.O-RING

31156-38300-000   3115638300000

3115638300000

Unit Price

9
.BUSHING
.BUSHING

31172-38300-000   3117238300000

3117238300000

Unit Price

10
BUSH,B<br />.BUSHING
BUSH, B
.BUSHING

31171-38300-000   3117138300000

3117138300000

Unit Price

11
.O-RING
.O-RING

31264-44110-000   3126444110000

3126444110000

Unit Price

12
BOLT, THROUGH<br />.BOLT
BOLT, THROUGH
.BOLT

31281-88C00-000   3128188C00000

3128188C00000

Unit Price

13
RING,STARTER MOTOR<br />.O-RING(D:3,ID:24.5)
RING, STARTER MOTOR
.O-RING(D:3, ID:24.5)

09280-24003-000   0928024003000

0928024003000

Unit Price

14
.NUT
.NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

15
.NUT
.NUT

08361-3506A-000   083613506A000

083613506A000

Unit Price

16
.FRAME, STARTER END

31170-04K00-000   3117004K00000

3117004K00000

Unit Price

17
.SHIM
.SHIM

31361-38300-000   3136138300000

3136138300000

Unit Price

18
.WASHER

31361-43400-000   3136143400000

3136143400000

Unit Price

19
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

20
NUT
NUT

08361-3506A-000   083613506A000

083613506A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR of your Suzuki GSX-S 1000 F 78KW of GSX-S. Let us know if you have any questions.
