Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI GSX-S 1000 2019

FUEL EVAP SYSTEM

Item numbers

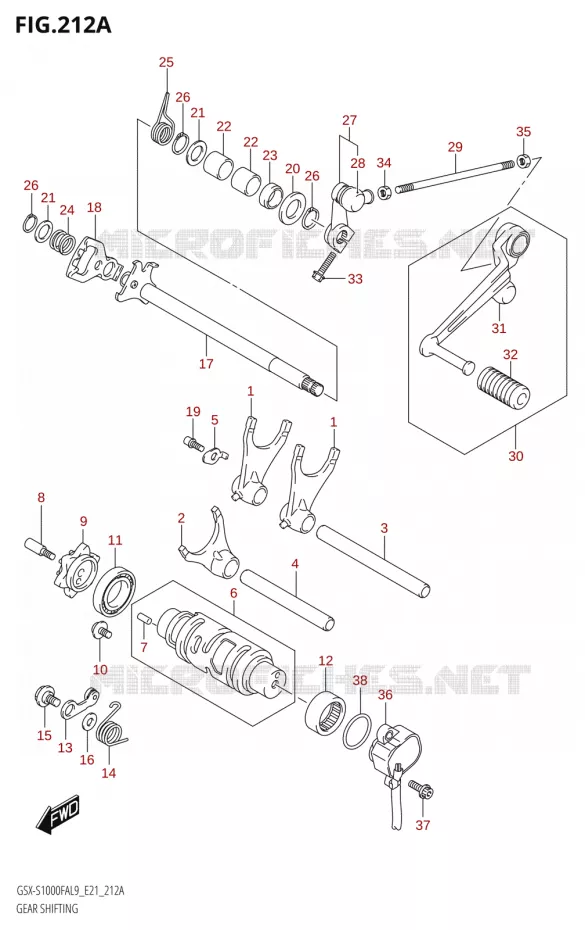

GEAR SHIFTING ASSY Suzuki MOTO 1000 GSX-S 2019 GSX-S1000FZAUF L9 (E21)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
22
23
24
25
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
1
FORK, GEAR SHIFT NO.1

25211-35F11-000   2521135F11000

2521135F11000

Unit Price

2
FORK, GEAR SHIFT NO.3

25231-35F11-000   2523135F11000

2523135F11000

Unit Price

3
SHAFT, SHIFT FORK, NO.2(L:132)

25411-24F00-000   2541124F00000

2541124F00000

Unit Price

4
SHAFT,GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK

25411-26D01-000   2541126D01000

2541126D01000

Unit Price

5
RETAINER, GEAR SHIFT FORK SHAFT

25451-35F00-000   2545135F00000

2545135F00000

Unit Price

6
CAM,GEAR SHIFT
CAM, GEAR SHIFT

25310-40F00-000   2531040F00000

2531040F00000

Unit Price

7
.PIN
.PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

8
BOLT, GEAR SHIFT CAM PLATE

25312-42F01-000   2531242F01000

2531242F01000

Unit Price

9
PLATE, GEAR SHIFT CAM

25381-13E00-000   2538113E00000

2538113E00000

Unit Price

10
SCREW(6X12)

09136-06147-000   0913606147000

0913606147000

Unit Price

11
BEARING, ROLLER KOYO<br />BEARING(25X47X8)
BEARING, ROLLER KOYO
BEARING(25X47X8)

09262-25006-000   0926225006000

0926225006000

Unit Price

12
R BEARING 25X32X12<br />BEARING(25X32X12)
R BEARING 25X32X12
BEARING(25X32X12)

09263-25018-000   0926325018000

0926325018000

Unit Price

13
STOPPER,SHIFT CAM
STOPPER, SHIFT CAM

25350-35F00-000  

25350-35F10-000
 2535035F00000

Unit Price

14
SPRING, SHIFT CAM STOPPER

25355-03G00-000   2535503G00000

2535503G00000

Unit Price

15
BOLT<br />BOLT(6X14.3)
BOLT
BOLT(6X14.3)

09111-06041-000   0911106041000

0911106041000

Unit Price

16
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

17
SHAFT, GEAR SHIFT

25510-40F00-000   2551040F00000

2551040F00000

Unit Price

18
PLATE, GEAR SHIFT CAM DRIVE

25512-06G10-000  

25512-06G20-000
 2551206G10000

Unit Price

19
STOPPER, GEAR SHIFT ARM

25671-35F00-000   2567135F00000

2567135F00000

Unit Price

20
WASHER(14X29X0.8)
WASHER(14X29X0.8)

09160-14016-000   0916014016000

0916014016000

Unit Price

21
WASHER,GEAR SHIFT SH<br />SHIM(14X22X1.0)
WASHER, GEAR SHIFT SH
SHIM(14X22X1.0)

09181-14167-000   0918114167000

0918114167000

Unit Price

22
BEARING, RR CUSHION<br />BEARING(14X20X12)
BEARING, RR CUSHION
BEARING(14X20X12)

09263-14027-000   0926314027000

0926314027000

Unit Price

23
SEAL, OIL(14X22X7.3)
OIL SEAL(14X22X7.3)

09283-14005-000   0928314005000

0928314005000

Unit Price

24
SPRING
SPRING

09440-17009-000   0944017009000

0944017009000

Unit Price

25
SPRING
SPRING

09444-20003-000   0944420003000

0944420003000

Unit Price

26
CIRCLIP
CIRCLIP

08331-3114A-000   083313114A000

083313114A000

Unit Price

27
ARM COMP, GEAR SHIFT LINK

25520-04K10-000  

25520-04K11-000
 2552004K10000

Unit Price

28
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

29
ROD, GEAR SHIFT LINK

25525-24F10-000   2552524F10000

2552524F10000

Unit Price

30
LEVER ASSY, GEAR SHIFT

25600-04K10-000  

25600-04K11-000
 2560004K10000

Unit Price

31
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

32
.RUBBER,GEAR SHIFT PEDAL
.RUBBER, GEAR SHIFT PEDAL

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

33
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

34
NUT
NUT

08310-0006A-000  

083100006A000
Not available
35
NUT
NUT

09140-06025-000   0914006025000

0914006025000

Unit Price

36
SENSOR ASSY, GEAR POSITION

37730-41G02-000  

37730-41G03-000
 3773041G02000

Unit Price

37
BOLT
BOLT(5X16)

09106-05023-000   0910605023000

0910605023000

Unit Price

38
O RING<br />O-RING(D:2.4,ID:26.2)
O RING
O-RING(D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki GSX-S 1000 F 78KW SPECIAL EDITION FULL BLACK of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 1000 GSX-S 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 GSX-S 2019

Select your Suzuki 2019 model

Color : Metallic Mat Black No.2 (YKV)
1000 GSX-S 2019 GSX-S1000FZAUF L9 (E21)
Color : Metallic Mat Black No.2 (YKV)

GSX-S 1000 F 78KW SPECIAL EDITION FULL BLACK

Suzuki GSX-S

Displacement: 1000 cc
Year: 2019
Model code GSX-S1000FZAUF L9 (E21)
Color: Metallic Mat Black No.2 (YKV)
