HANDLEBAR

HANDGRIPS - LEVERS FOR SUZUKI GSX-S 1000 2019

FRONT FORK

Item numbers

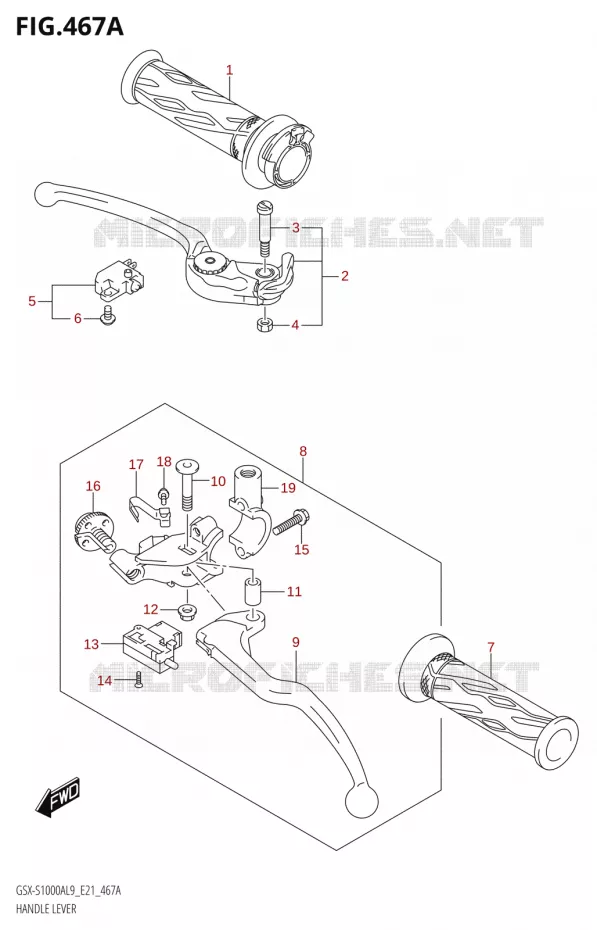

HANDGRIPS - LEVERS Suzuki MOTO 1000 GSX-S 2019 GSX-S1000YA L9 (E21)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
GRIP COMP, THROTTLE
GRIP, THROTTLE

57110-07L00-000   5711007L00000

5711007L00000

Unit Price

2
LEVER ASSY, BRAKE
LEVER ASSY, BRAKE

57300-29G40-000   5730029G40000

5730029G40000

Unit Price

3
BOLT, LEVER PIVOT
.BOLT, PIVOT

57431-29G00-000   5743129G00000

5743129G00000

Unit Price

4
.NUT
.NUT

08319-2106A-000   083192106A000

083192106A000

Unit Price

5
SWITCH ASSY,STOP
SWITCH ASSY, STOP

57460-14J01-000  

57460-14J02-000
 5746014J01000

Unit Price

6
SCREW,WITH WASHER(4X12)<br />.SCREW
SCREW, WITH WASHER(4X12)
.SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

7
GRIP, L
GRIP, LH

57211-21H01-000   5721121H01000

5721121H01000

Unit Price

8
57500-41G52

57500-41G50-000  

5750041G50000
Not available
9
.LEVER, CLUTCH
.LEVER, CLUTCH

57621-41G10-000   5762141G10000

5762141G10000

Unit Price

10
BOLT, CLUTCH LEVER PIVOT
.BOLT

57431-41G00-000   5743141G00000

5743141G00000

Unit Price

11
.COLLAR

57532-41G00-000   5753241G00000

5753241G00000

Unit Price

12
.NUT
.NUT

08319-3106A-000   083193106A000

083193106A000

Unit Price

13
.SWITCH ASSY, CLUTCH

57560-05A10-000   5756005A10000

5756005A10000

Unit Price

14
SCREW, CLUTCH SWITCH
.SCREW

57562-41G01-000  

5756241G01000
Not available
15
.BOLT
.BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

16
NUT,ADJUSTER<br />.NUT, CABLE ADJUSTER
NUT, ADJUSTER
.NUT, CABLE ADJUSTER

57641-33E21-000   5764133E21000

5764133E21000

Unit Price

17
SPRING,ADJUST<br />.SPRING
SPRING, ADJUST
.SPRING

57644-33E00-000   5764433E00000

5764433E00000

Unit Price

18
.SCREW, SPRING
.SCREW, SPRING

57642-33E00-000   5764233E00000

5764233E00000

Unit Price

19
57512-41G01
.HOLDER, CLUTCH LEVER

57512-41G00-000   5751241G00000

5751241G00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDGRIPS - LEVERS of your Suzuki GSX-S 1000 SPECIAL EDITION of GSX-S. Let us know if you have any questions.
