Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT

INDICATORS FOR SUZUKI GSX-S 1000 2023

TAIL LIGHT

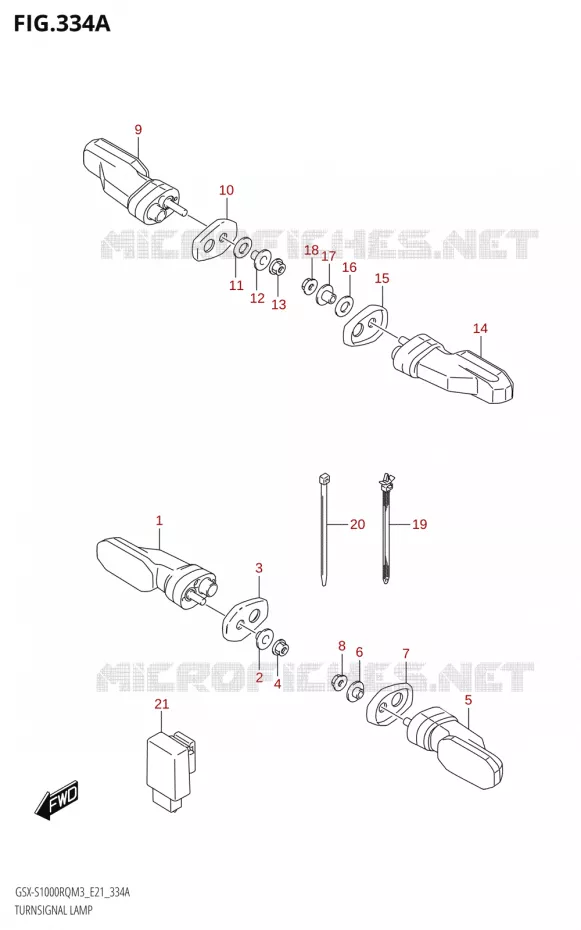

INDICATORS Suzuki MOTO 1000 GSX-S 2023 GSX-S1000RQ M3
1
LAMP ASSY, FRONT TURNSIGNAL, R

35601-48KB0-000   3560148KB0000

3560148KB0000
Not available
2
WASHER, TURNSIGNAL

09169-06101-000   0916906101000

0916906101000

Unit Price

3
CUSHION, TURNSIGNAL

35690-06L00-000   3569006L00000

3569006L00000

Unit Price

4
NUT
NUT(6X12)

08316-1006A-000   083161006A000

083161006A000

Unit Price

5
LAMP ASSY, FRONT TURNSIGNAL, L

35602-48KB0-000   3560248KB0000

3560248KB0000
Not available
6
WASHER, TURNSIGNAL

09169-06101-000   0916906101000

0916906101000

Unit Price

7
CUSHION, TURNSIGNAL

35690-06L00-000   3569006L00000

3569006L00000

Unit Price

8
NUT
NUT(6X12)

08316-1006A-000   083161006A000

083161006A000

Unit Price

9
LAMP ASSY, REAR TURNSIGNAL, R

35603-48KE0-000   3560348KE0000

3560348KE0000
Not available
10
CUSHION, TURNSIGNAL

35690-06L10-000   3569006L10000

3569006L10000

Unit Price

11
CUSHION

09320-08056-000   0932008056000

0932008056000

Unit Price

12
WASHER, TURNSIGNAL
WASHER

09169-06098-000   0916906098000

0916906098000

Unit Price

13
NUT
NUT(6X12)

08316-1006A-000   083161006A000

083161006A000

Unit Price

14
LAMP ASSY, REAR TURNSIGNAL, L

35604-48KE0-000   3560448KE0000

3560448KE0000
Not available
15
CUSHION, TURNSIGNAL

35690-06L10-000   3569006L10000

3569006L10000

Unit Price

16
CUSHION

09320-08056-000   0932008056000

0932008056000

Unit Price

17
WASHER, TURNSIGNAL
WASHER

09169-06098-000   0916906098000

0916906098000

Unit Price

18
NUT
NUT(6X12)

08316-1006A-000   083161006A000

083161006A000

Unit Price

19
CLAMP<br />CLAMP(L:90)
CLAMP
CLAMP(L:90)

09407-11402-000   0940711402000

0940711402000

Unit Price

20
CLAMP<br />CLAMP(L:145)
CLAMP
CLAMP(L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

21
38610-06LA1
RELAY ASSY, TURNSIGNAL

38610-06LA0-000   3861006LA0000

3861006LA0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS of your Suzuki GSX-S 1000 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 1000 GSX-S 2023

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 GSX-S 2023

Select your Suzuki 2023 model

1000 GSX-S 2023 GSX-S1000RQ M3

GSX-S 1000

Suzuki GSX-S

Displacement: 1000 cc
Year: 2023
Model code GSX-S1000RQ M3
