CRANKCASE

CRANKCASE (2) FOR SUZUKI GSX-S 1000 2023

CRANKCASE COVER

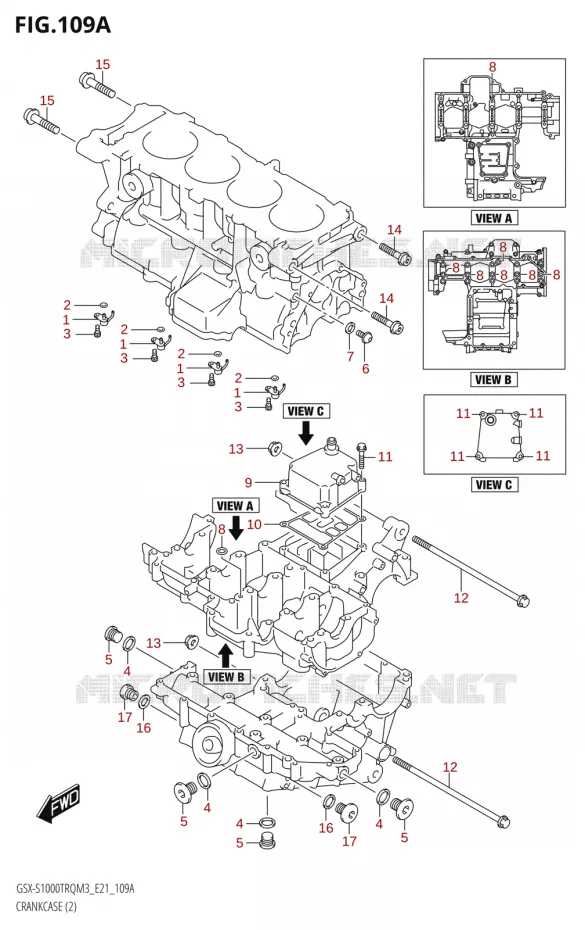

CRANKCASE (2) Suzuki MOTO 1000 GSX-S 2023 GSX-S1000TRQ M3 (E21)
1
JET, PISTON COOLING

11390-21H01-000  

1139021H01000
Not available
2
O RING<br />O-RING(D:1.2,ID:4)
O RING
O-RING(D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

3
BOLT(6X12)
BOLT(6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

4
GASKET OIL GALLERY<br />GASKET(16X22X2)
GASKET OIL GALLERY
GASKET(16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

5
PLUG,OIL GALL NO.1<br />PLUG(16X12)
PLUG, OIL GALL NO.1
PLUG(16X12)

09248-16013-000   0924816013000

0924816013000

Unit Price

6
PLUG,OIL GALL<br />PLUG(10X10)
PLUG, OIL GALL
PLUG(10X10)

09248-10010-000   0924810010000

0924810010000

Unit Price

7
CRNK DRAIN PLUG GASK<br />GASKET(10X14X3.6)
CRNK DRAIN PLUG GASK
GASKET(10X14X3.6)

09168-10002-000   0916810002000

0916810002000

Unit Price

8
O-RING(D:1.9,ID:7.8)
O-RING(D:1.9, ID:7.8)

09280-08012-000   0928008012000

0928008012000

Unit Price

9
COVER, BREATHER

11370-04K00-000   1137004K00000

1137004K00000

Unit Price

10
GASKET, BREATHER COVER

11484-35F00-000   1148435F00000

1148435F00000

Unit Price

11
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

12
BOLT(10X225)
BOLT(10X225)

09103-10205-000   0910310205000

0910310205000

Unit Price

13
NUT<br />NUT(M10)
NUT
NUT(M10)

09159-10115-000   0915910115000

0915910115000

Unit Price

14
BOLT, ENG MTG HEAD
BOLT(10X45)

09106-10069-000   0910610069000

0910610069000

Unit Price

15
BOLT, ENG MTG HEAD
BOLT(10X55)

09106-10070-000   0910610070000

0910610070000

Unit Price

16
GASKET,13.8X18.8X0.4<br />GASKET(13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET(13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

17
PLUG, CYL HEAD<br />PLUG(14X12)
PLUG, CYL HEAD
PLUG(14X12)

09248-14011-000  

0924814011000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE (2) of your Suzuki GSX-S 1000 GT of GSX-S. Let us know if you have any questions.
