LEVERS - HANDGRIPS

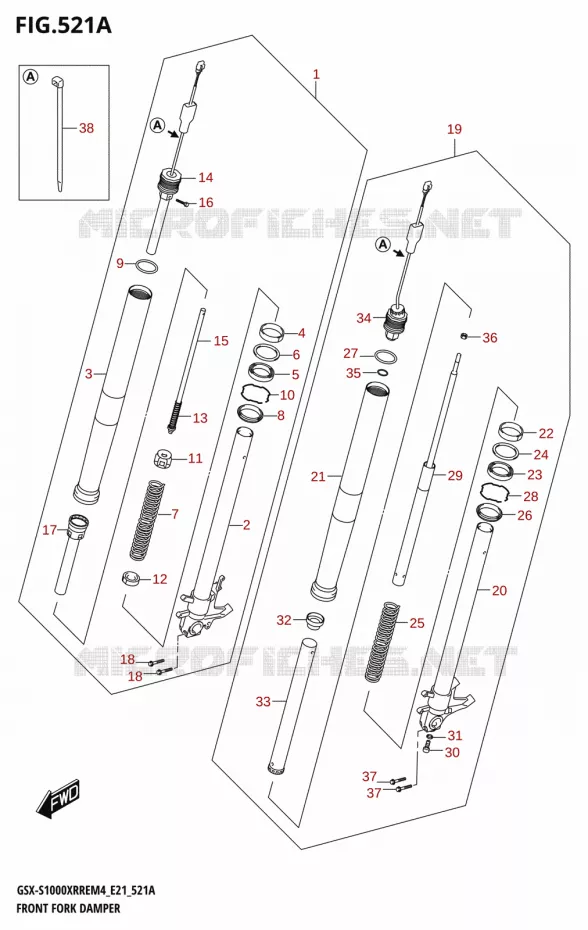

FRONT FORK FOR SUZUKI GSX-S 1000 2024

STEERING COLUMN

DAMPER ASSY, R

51103-48KE0-000 5110348KE0000

$2 088,97

Unit Price

.TUBE, INNER, R

51110-48KE0-000 5111048KE0000

$733,97

Unit Price

.TUBE, OUTER

51131-48KE0-000 5113148KE0000

$643,97

Unit Price

.BUSH, GUIDE

51152-47H00-000 5115247H00000

$18,97

Unit Price

.SEAL, OIL

51153-27G00-000 5115327G00000

$20,97

Unit Price

.SPACER, SEAL

51168-29G00-000 5116829G00000

$9,97

Unit Price

.SPRING, FR

51171-48KE0-000 5117148KE0000

$67,97

Unit Price

.SEAL DUST

51173-48KE0-000 5117348KE0000

$33,97

Unit Price

.O-RING

51187-47H00-000 5118747H00000

$10,97

Unit Price

CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

.SPRING SEAT

51175-48KE0-000 5117548KE0000

$5,97

Unit Price

.COLLAR SPRING

51176-48KE0-000 5117648KE0000

$19,97

Unit Price

.REBOUND SPRING

51177-48KE0-000 5117748KE0000

$11,97

Unit Price

.BOLT, FORK R

51790-48KE0-000 5179048KE0000

$533,97

Unit Price

.ROD

51791-48KE0-000 5179148KE0000

$109,97

Unit Price

.BOLT

51792-48KE0-000 5179248KE0000

$39,97

Unit Price

.ROD COVER

51793-48KE0-000 5179348KE0000

$197,97

Unit Price

BOLT, BRACKET UPPER
.BOLT

51328-44HB0-000 5132844HB0000

$6,97

Unit Price

DAMPER ASSY, L

51104-48KE0-000 5110448KE0000

$3 098,97

Unit Price

.TUBE, INNER, L

51120-48KE0-000 5112048KE0000

$752,97

Unit Price

.TUBE, OUTER

51131-48KE0-000 5113148KE0000

$643,97

Unit Price

.BUSH, GUIDE

51152-47H00-000 5115247H00000

$18,97

Unit Price

.SEAL, OIL

51153-27G00-000 5115327G00000

$20,97

Unit Price

.SPACER, SEAL

51168-29G00-000 5116829G00000

$9,97

Unit Price

.SPRING, FR

51171-48KE0-000 5117148KE0000

$67,97

Unit Price

.SEAL DUST

51173-48KE0-000 5117348KE0000

$33,97

Unit Price

.O-RING

51187-47H00-000 5118747H00000

$10,97

Unit Price

CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

.DAMPER SUB

51128-48KE0-000 5112848KE0000

$639,97

Unit Price

BOLT
.BOLT(8X18)

51147-06F10-000 5114706F10000

$7,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

.SPRING SEAT STOPPER

51178-48KE0-000 5117848KE0000

$52,97

Unit Price

.COLLAR SPRING

51198-48KE0-000 5119848KE0000

$44,97

Unit Price

.SOLENOID SET, FR FORK

51700-48810-000 5170048810000

$1 088,97

Unit Price

.O-RING

51774-48KE0-000 5177448KE0000

$3,97

Unit Price

.NUT

51827-27E00-000 5182727E00000

$3,97

Unit Price

BOLT, BRACKET UPPER
.BOLT

51328-44HB0-000 5132844HB0000

$6,97

Unit Price

CLAMP
CLAMP(L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki GSX-S 1000 GX of GSX-S. Let us know if you have any questions.
