SEAT FOR SUZUKI KATANA 1000 2021

STARTER MOTOR

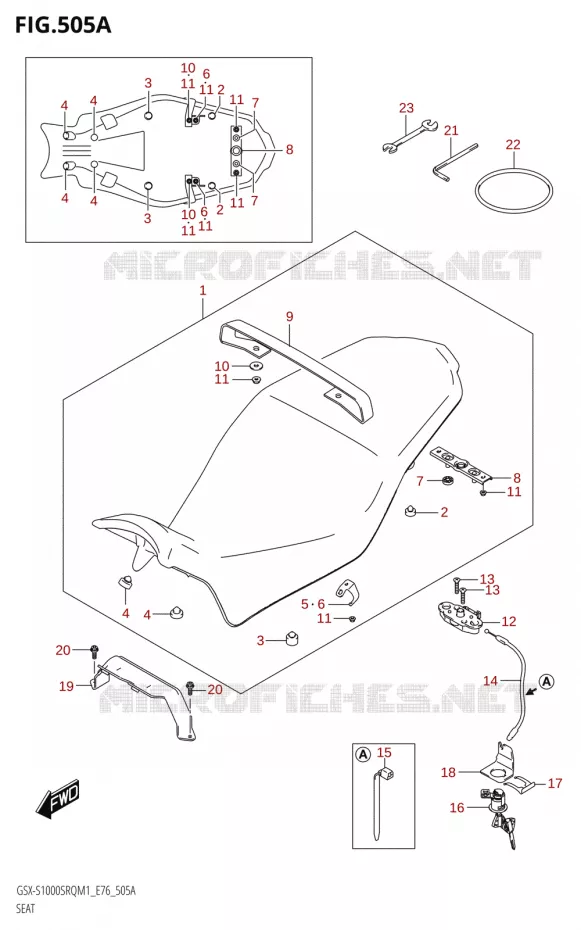

SEAT Suzuki MOTO 1000 KATANA 2021 GSX-S1000SRQ M1 (E76 ECE2 E17,22,39)
1
45100-07L03-BWU
SEAT ASSY(BLACK, SILVER, GRAY)

45100-07L02-BWU   4510007L02BWU

4510007L02BWU
Not available
2
.CUSHION
.CUSHION

09321-10011-000   0932110011000

0932110011000

Unit Price

3
.CUSHION

45148-07L00-000   4514807L00000

4514807L00000

Unit Price

4
.CUSHION, SEAT MOUNT

45148-23J00-000   4514823J00000

4514823J00000

Unit Price

5
PLATE, SEAT HOOK RH
.PLATE, SEAT HOOK, R

45116-07L00-000   4511607L00000

4511607L00000

Unit Price

6
PLATE, SEAT HOOK LH
.PLATE, SEAT HOOK, L

45117-07L00-000   4511707L00000

4511707L00000

Unit Price

7
33652-20C01<br />.PROTECTOR(50X50X5)
33652-20C01
.PROTECTOR(50X50X5)

33652-20C00-000   3365220C00000

3365220C00000
Not available
8
.STRIKER, SEAT LOCK

45215-26F00-000   4521526F00000

4521526F00000

Unit Price

9
.BAND, SEAT

45380-07L01-000   4538007L01000

4538007L01000

Unit Price

10
.WASHER(6.5X20X1.6)
.WASHER(6.5X20X1.6)

09160-06088-000   0916006088000

0916006088000

Unit Price

11
NUT
.NUT(6X12)

08316-1006A-000   083161006A000

083161006A000

Unit Price

12
BRACKET,SEAT SUPPORT
BRACKET, SEAT SUPPORT

45220-47H00-000   4522047H00000

4522047H00000

Unit Price

13
SCREW

02122-0630A-000   021220630A000

021220630A000

Unit Price

14
CABLE COMP, SEAT LOCK
CABLE, SEAT LOCK

45280-07L00-000   4528007L00000

4528007L00000

Unit Price

15
BAND,WIRING HARNESS<br />CLAMP(L:125)
BAND, WIRING HARNESS
CLAMP(L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

16
LOCK ASSY, SEAT

95700-14F00-000   9570014F00000

9570014F00000
Not available
17
PLATE,SEAT LOCK ASSY
PLATE, SEAT LOCK ASSY

45289-11F00-000   4528911F00000

4528911F00000

Unit Price

18
GUIDE,SEAT LOCK CABLE
GUIDE, SEAT LOCK CABLE

45288-14F00-000   4528814F00000

4528814F00000

Unit Price

19
BRACKET COMP, SEAT
BRACKET, SEAT

45130-07L00-000   4513007L00000

4513007L00000

Unit Price

20
BOLT

07120-0612A-000  

07120-0612B-000
 071200612A000

Unit Price

21
SPANNER, HEXAGON(5)

96514-17K00-000   9651417K00000

9651417K00000

Unit Price

22
O-RING(D:3.5, ID:56.5)

09280-57003-000   0928057003000

0928057003000

Unit Price

23
SPANNER, OPEN(14X17)

09813-00031-000   0981300031000

0981300031000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki KATANA 1000 of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 1000 KATANA 2021

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 KATANA 2021

Select your Suzuki 2021 model

1000 KATANA 2021 GSX-S1000SRQ M1 (E76 ECE2 E17,22,39)

KATANA 1000

Suzuki KATANA

Displacement: 1000 cc
Year: 2021
Model code GSX-S1000SRQ M1 (E76 ECE2 E17,22,39)
Color: Metallic Mystic Silver (YMD) / Glass Sparkle Black (YVB)
