CLUTCH

TRANSMISSION FOR SUZUKI SV-S 1000 2006

GEAR SHIFTING ASSY

TRANSMISSION Suzuki MOTO 1000 SV-S 2006 SV1000SK6(E3/E28)
1
SHAFT, CNTR, NT:12
SHAFT, COUNTER (NT:12)

24120-16G00-000   2412016G00000

2412016G00000

Unit Price

2

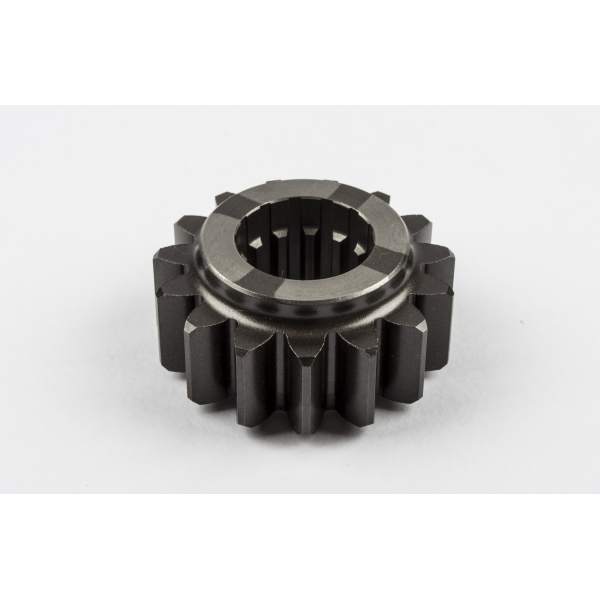

GEAR, 2ND DRIVE (NT:15)
GEAR, 2ND DRIVE (NT:15)

24221-02F01-000   2422102F01000

2422102F01000

Unit Price

3
GEAR, 3RD & 4TH DRIVE

24231-02F20-000  

24231-02F30-000
 2423102F20000

Unit Price

4
GEAR, 5TH DRIVE (NT:23)

24251-02F11-000   2425102F11000

2425102F11000

Unit Price

5
BUSH, 5TH DRIVE GEAR
BUSH, 5TH DRIVE

24252-02F10-000   2425202F10000

2425202F10000

Unit Price

6
GEAR, 6TH DRIVE (NT:24)

24261-02F20-000   2426102F20000

2426102F20000

Unit Price

7
BUSH, 6TH DRIVE GEAR
BUSH, 6TH DRIVE

24262-02F00-000   2426202F00000

2426202F00000

Unit Price

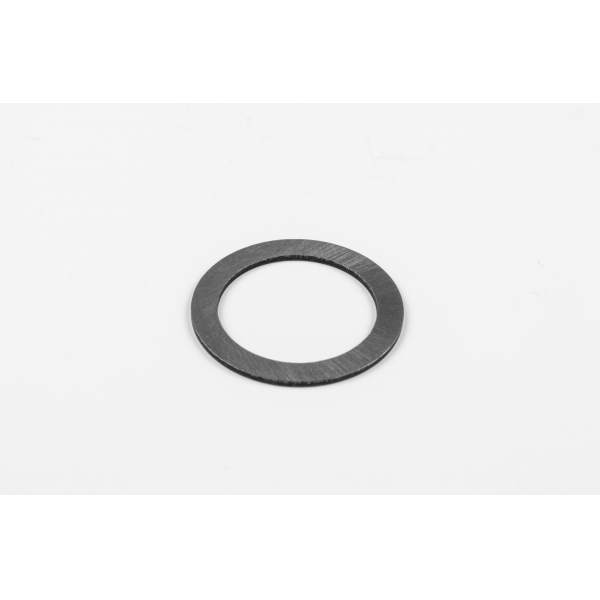

8
WASHER<br />WASHER, 6TH DRIVE
WASHER
WASHER, 6TH DRIVE

09181-22167-000   0918122167000

0918122167000

Unit Price

9
BEARING
BEARING, CENTER SHAFT LH

09262-20139-000   0926220139000

0926220139000

Unit Price

10

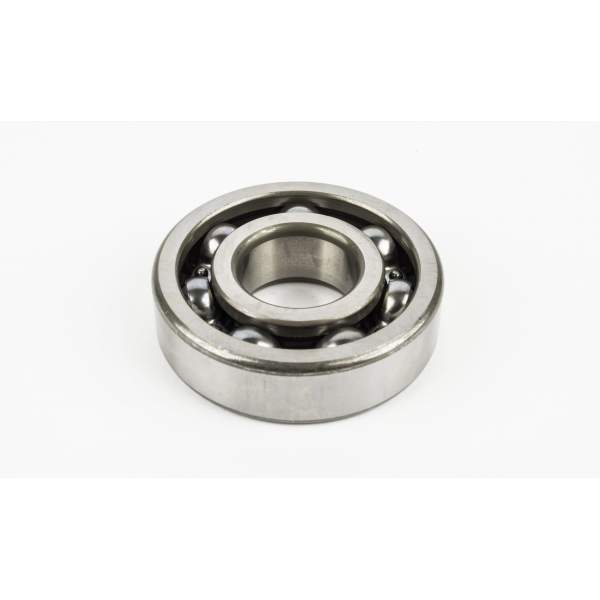

BALL BEARG 25X62X1<br />BEARING, CENTER SHAFT RH
BALL BEARG 25X62X1
BEARING, CENTER SHAFT RH

09262-25073-000   0926225073000

0926225073000

Unit Price

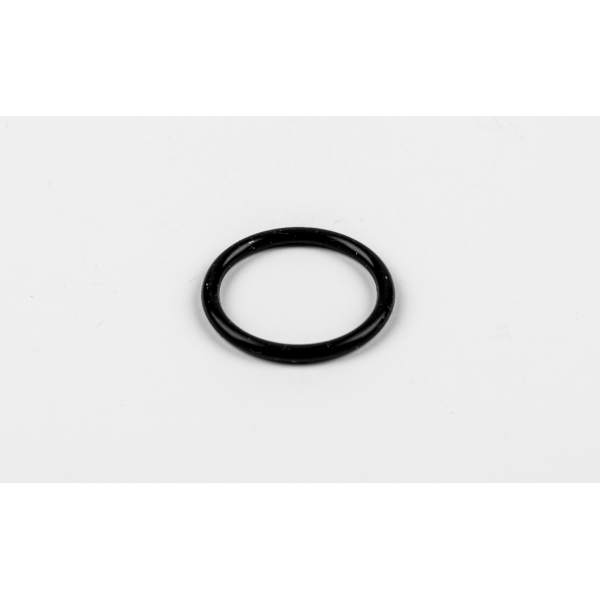

11
O RING D:1.9 ID:16.6<br />O RING, CENTER SHAFT
O RING D:1.9 ID:16.6
O RING, CENTER SHAFT

09280-17004-000   0928017004000

0928017004000

Unit Price

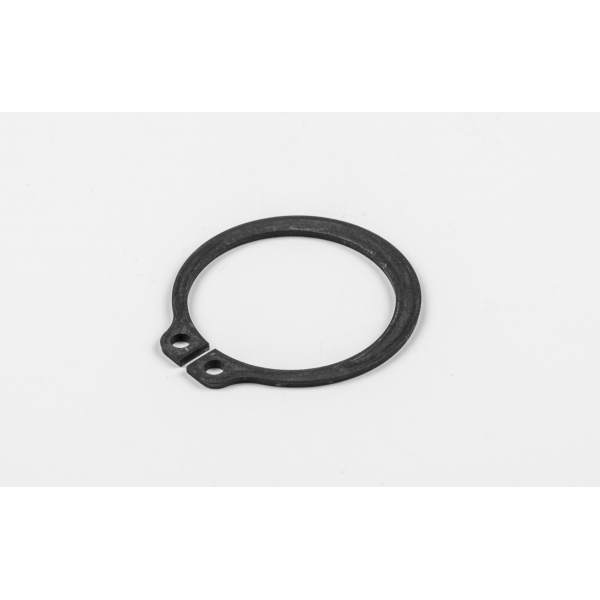

12
CIRCLIP<br />CIRCLIP, 5TH DRIVE
CIRCLIP
CIRCLIP, 5TH DRIVE

09380-27001-000   0938027001000

0938027001000

Unit Price

13

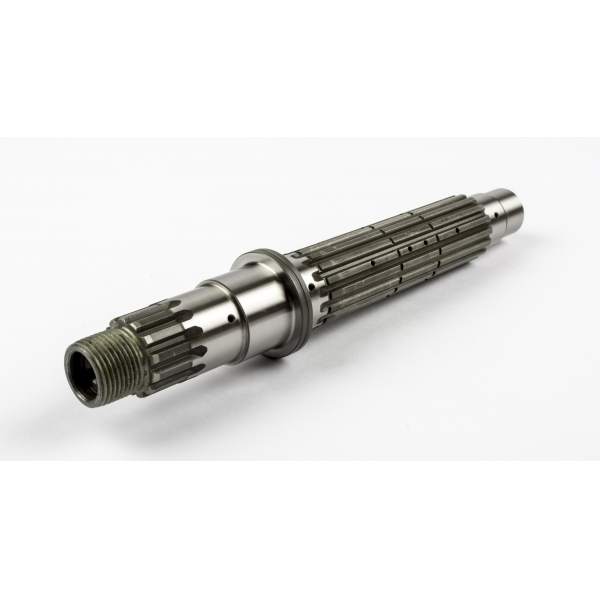

SHAFT, DRIVE
SHAFT, DRIVE

24130-02F10-000   2413002F10000

2413002F10000

Unit Price

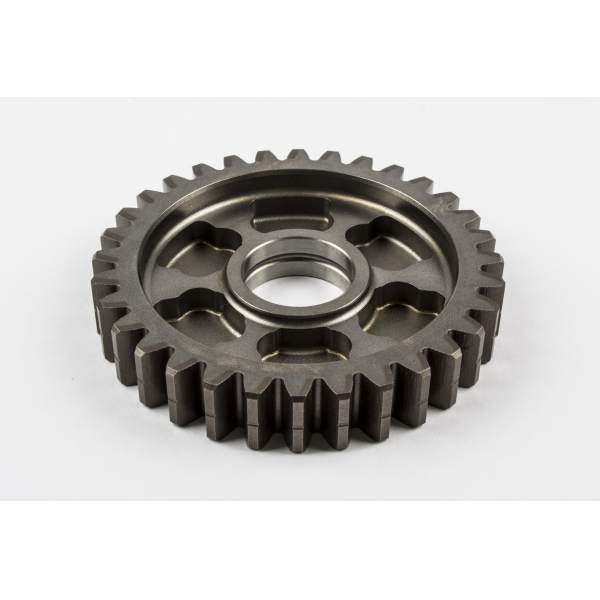

14
DISCONTINUE<br />GEAR, 1ST DRIVEN (NT:32)
DISCONTINUE
GEAR, 1ST DRIVEN (NT:32)

24311-02F10-000   2431102F10000

2431102F10000
Not available
15
BEARING, 22X26X1
BEARING (22X26X11)

09263-22068-000   0926322068000

0926322068000

Unit Price

16

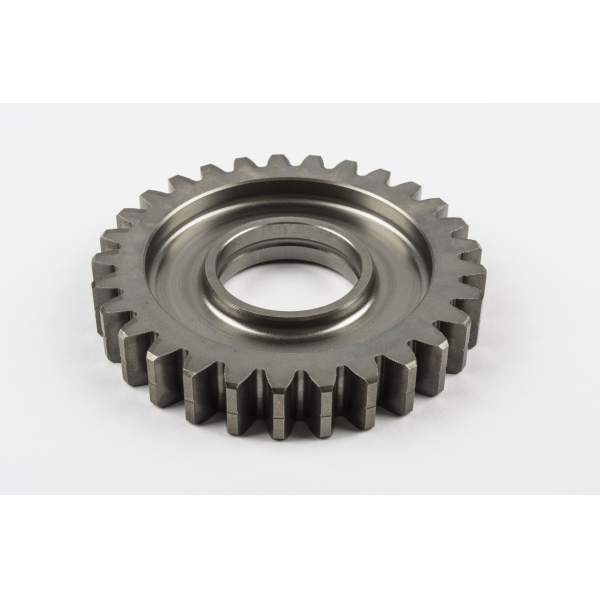

GEAR, 2ND DRIVEN (NT:29)
GEAR, 2ND DRIVEN (NT:29)

24321-02F11-000   2432102F11000

2432102F11000

Unit Price

17
BUSH,2ND DRIVEN GEAR<br />BUSH, 2ND DRIVEN
BUSH, 2ND DRIVEN GEAR
BUSH, 2ND DRIVEN

24322-02F01-000   2432202F01000

2432202F01000

Unit Price

18
GEAR, 3RD DRIVEN

24331-02F12-000  

24331-02F20-000
 2433102F12000

Unit Price

19
BUSH, 3RD DRIVEN GEAR
BUSH, 3RD DRIVEN

24332-17E20-000   2433217E20000

2433217E20000

Unit Price

20
GEAR, 4TH DRIVEN

24341-02F20-000  

24341-02F30-000
 2434102F20000

Unit Price

21
BUSH, 3RD DRIVEN GEAR
BUSH, 4TH DRIVEN

24332-17E20-000   2433217E20000

2433217E20000

Unit Price

22

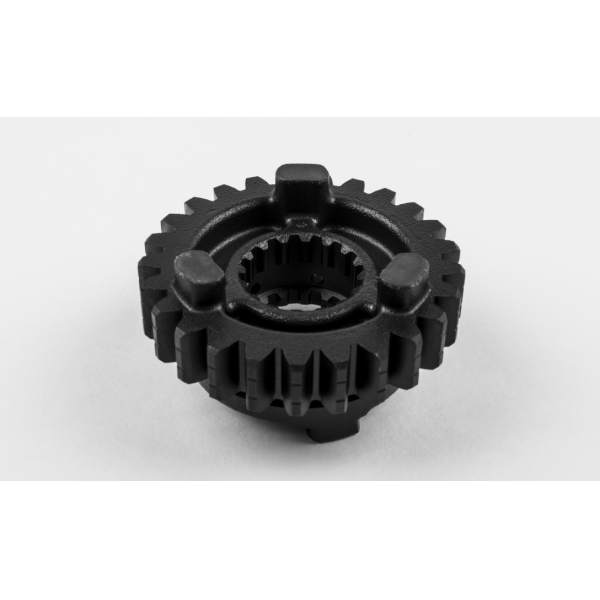

GEAR,5TH DRIVEN
GEAR, 5TH DRIVEN

24351-02F13-000  

24351-02F20-000
 2435102F13000

Unit Price

23

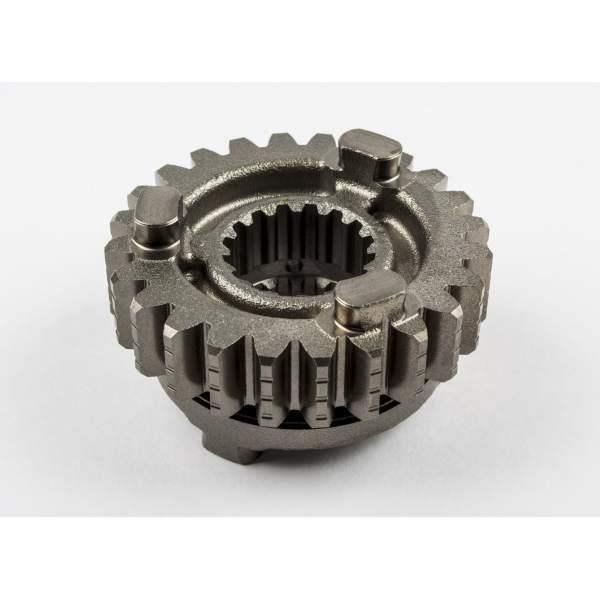

GEAR, 6TH DRIVEN (NT:24)
GEAR, 6TH DRIVEN (NT:24)

24361-02F30-000   2436102F30000

2436102F30000

Unit Price

24
WASHER(27X36X1)<br />WASHER, 2ND DRIVEN GEAR
WASHER(27X36X1)
WASHER, 2ND DRIVEN GEAR

09160-27008-000   0916027008000

0916027008000

Unit Price

25

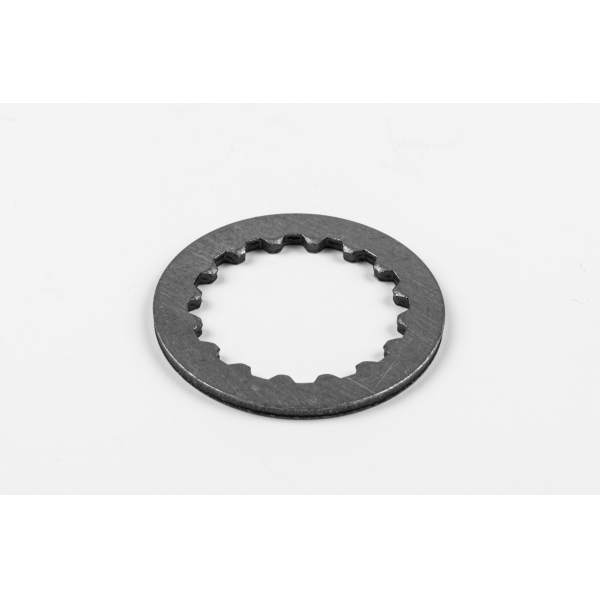

WASHER, 3RD & 4TH DRIVEN
WASHER, 3RD & 4TH DRIVEN

09167-27002-000   0916727002000

0916727002000
Not available
26
WASHER,3RD & 4TH DRIVEN<br />WASHER, 3RD DRIVEN GEAR
WASHER, 3RD & 4TH DRIVEN
WASHER, 3RD DRIVEN GEAR

24333-02F00-000   2433302F00000

2433302F00000

Unit Price

27
WASHER,3RD & 4TH DRIVEN<br />WASHER, 4TH DRIVEN GEAR
WASHER, 3RD & 4TH DRIVEN
WASHER, 4TH DRIVEN GEAR

24333-02F00-000   2433302F00000

2433302F00000

Unit Price

28
WASHER<br />WASHER, 1ST DRIVEN RH
WASHER
WASHER, 1ST DRIVEN RH

09181-20251-000   0918120251000

0918120251000

Unit Price

29
WASHER<br />WASHER, 1ST DRIVEN LH
WASHER
WASHER, 1ST DRIVEN LH

09181-22223-000   0918122223000

0918122223000

Unit Price

30
BEARING
BEARING, DRIVE SHAFT RH

09262-20082-000   0926220082000

0926220082000

Unit Price

31

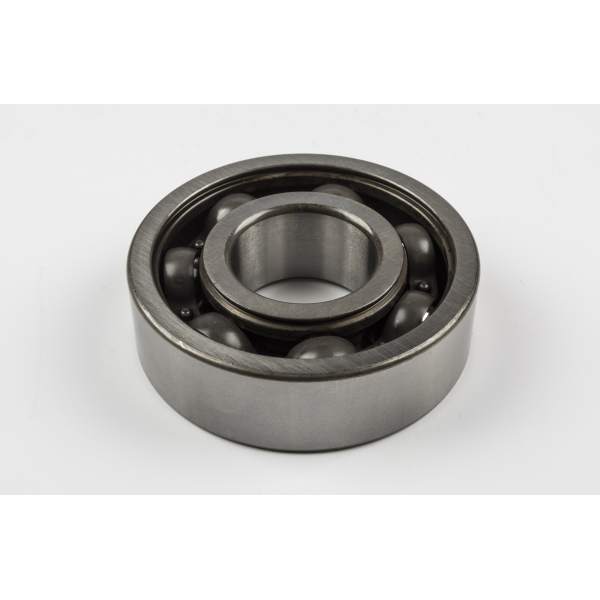

BEARING(28X68X20)<br />BEARING, DRIVE SHAFT LH
BEARING(28X68X20)
BEARING, DRIVE SHAFT LH

09262-28040-000   0926228040000

0926228040000

Unit Price

32

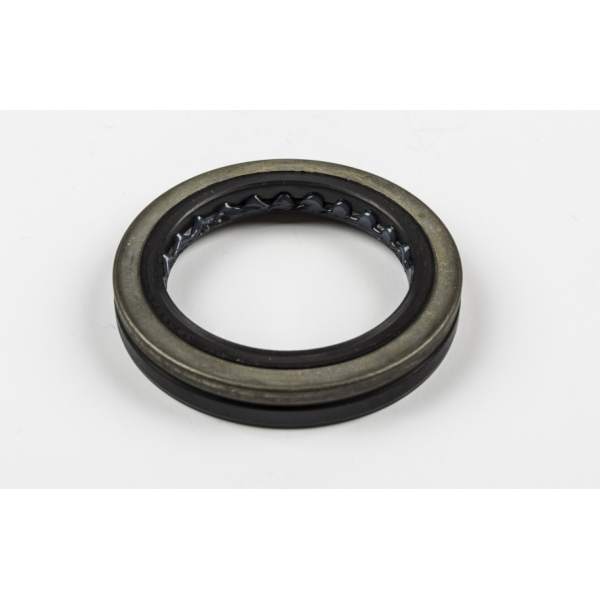

SEAL,OIL<br />SEAL, DRIVE SHAFT
SEAL, OIL
SEAL, DRIVE SHAFT

09283-38020-000   0928338020000

0928338020000

Unit Price

33
CIRCLIP<br />CIRCLIP, 2ND DRIVEN
CIRCLIP
CIRCLIP, 2ND DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price

34
CIRCLIP<br />CIRCLIP, 3RD DRIVEN
CIRCLIP
CIRCLIP, 3RD DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price

35
CIRCLIP<br />CIRCLIP, 4TH DRIVEN
CIRCLIP
CIRCLIP, 4TH DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price

36
RETAINER, DRIVE SHAFT BEARING
RETAINER, DRIVE SHAFT BRG

24741-06G00-000   2474106G00000

2474106G00000

Unit Price

37
RETAINER<br />RETAINER, CENTER SHAFT
RETAINER
RETAINER, CENTER SHAFT

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

38

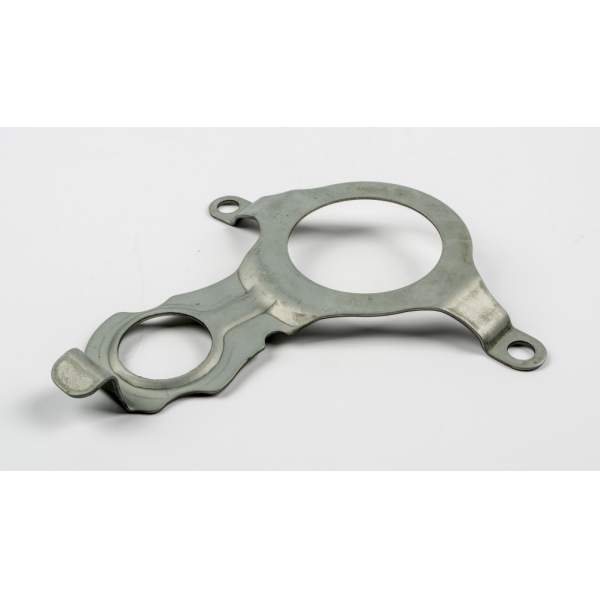

RETAINER,DRIVE SHAFT OIL SEAL<br />RETAINER, DRIVE SHAFT OIL
RETAINER, DRIVE SHAFT OIL SEAL
RETAINER, DRIVE SHAFT OIL

24751-06G00-000   2475106G00000

2475106G00000

Unit Price

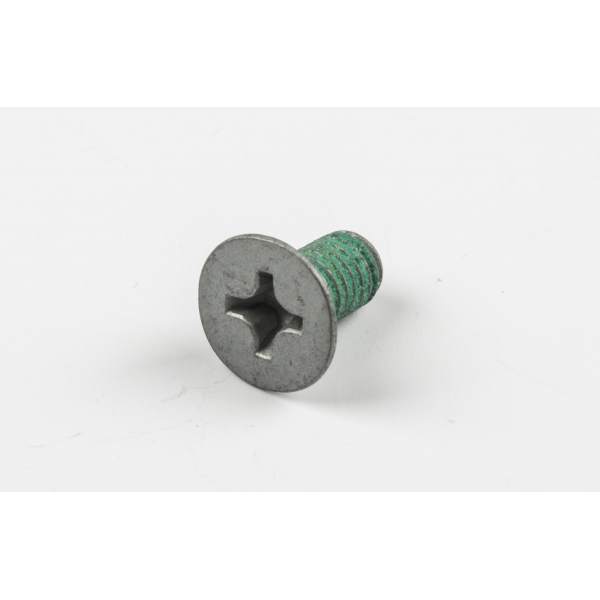

39
SCREW<br />SCREW, DRIVE SHAFT (6X12)
SCREW
SCREW, DRIVE SHAFT (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

40

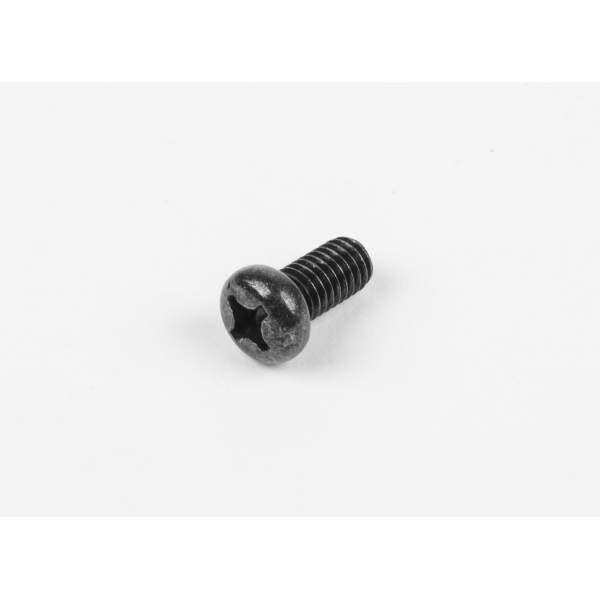

SCREW<br />SCREW, CENTER SHAFT
SCREW
SCREW, CENTER SHAFT

02112-0612B-000   021120612B000

021120612B000

Unit Price

41
BOLT
BOLT, DRIVE SHAFT OIL

07130-0612B-000   071300612B000

071300612B000

Unit Price

42
SPROCKET, ENGINE (NT:17)
SPROCKET, ENGINE (NT:17)

27510-21A31-000   2751021A31000

2751021A31000

Unit Price

43
SPACER, ENGINE SPROCKET
SPACER, SPROCKET

27531-16G00-000   2753116G00000

2753116G00000

Unit Price

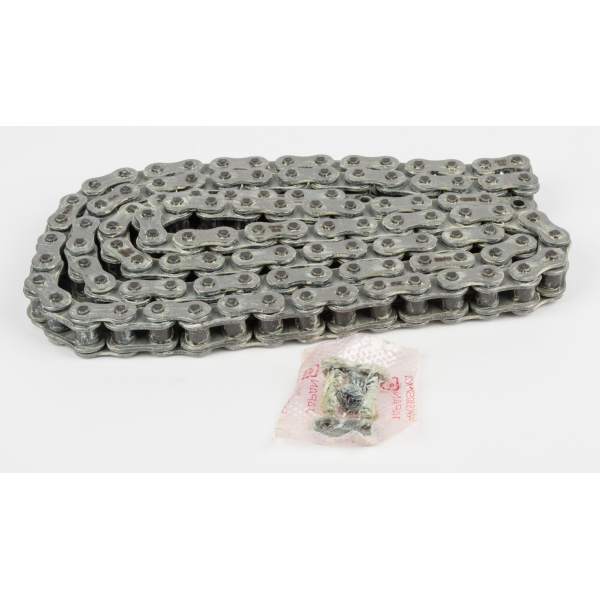

44
DISCONTINUE<br />CHAIN ASSY (RK50SM0Z1)
DISCONTINUE
CHAIN ASSY (RK50SM0Z1)

27600-16G00-110   2760016G00110

2760016G00110
Not available
45
JOINT SET, CHAIN

27620-16G00-000   2762016G00000

2762016G00000

Unit Price

46
NUT
NUT

09159-20004-000   0915920004000

0915920004000

Unit Price

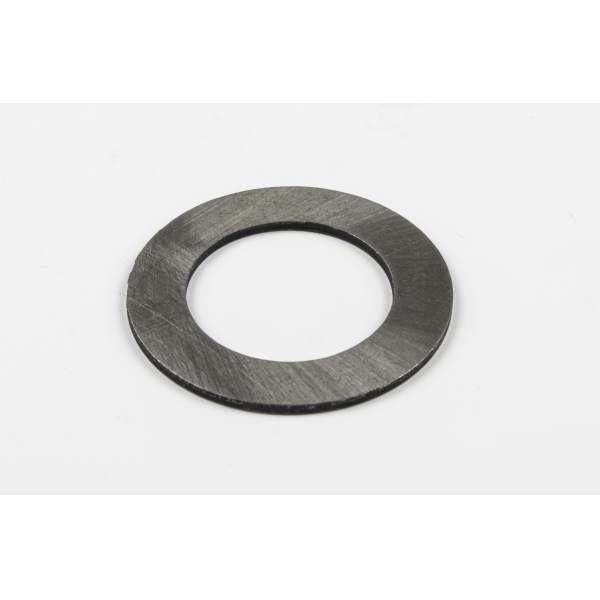

47
SHIM,T:1.5<br />WASHER (25X40X1.5)
SHIM, T:1.5
WASHER (25X40X1.5)

09181-25268-000   0918125268000

0918125268000

Unit Price

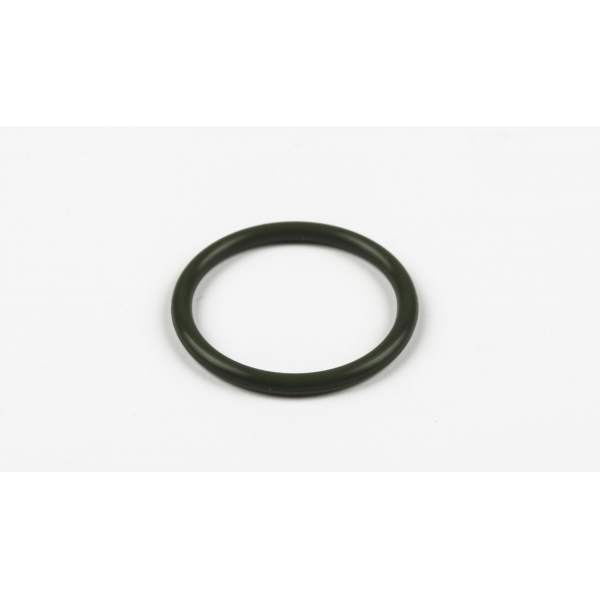

48
O-RING<br />O RING (D:2.4,ID:23.7)
O-RING
O RING (D:2.4, ID:23.7)

09280-24010-000   0928024010000

0928024010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
