WIRING HARNESS (SV1000S) REFER TO FIG.37(E- 7) FOR SV1000

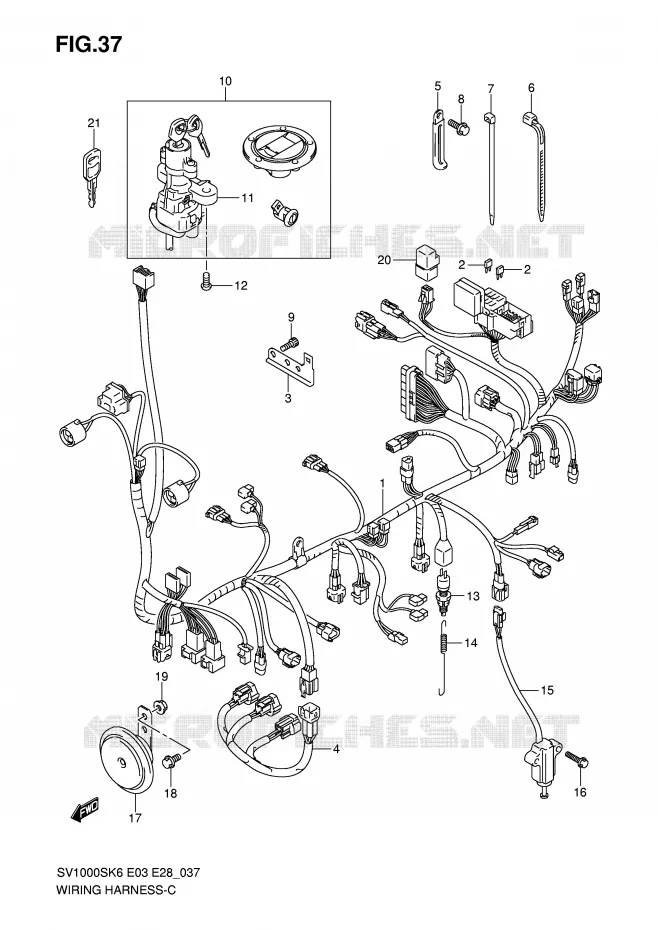

WIRING HARNESS (SV1000) FOR SUZUKI SV 1000 2006

SWITCHES (SV1000S) REFER TO FIG.39 (E- 9) FOR SV1000

Item numbers

HARNESS, WIRING NO.1

36610-16GJ0-000 3661016GJ0000

Not available

FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

FUSE (10A)

09481-10501-000

Not available

DISCONTINUE
HOLDER, COUPLER

36687-16G00-000 3668716G00000

Not available

DISCONTINUE
WIRE, INJECTOR LEAD

36859-16G00-000 3685916G00000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

DISCONTINUE
CLAMP (L:80)

09404-08207-000

Not available

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

BOLT

01550-0612B-000 015500612B000

$3,97

Unit Price

BOLT

07130-0610B-000 071300610B000

$5,97

Unit Price

37000-16851
LOCK SET

37000-16850-000 3700016850000

Not available

LOCK ASSY, STEERING

37100-16G00-000

37100-16G02-000

$315,97

Unit Price

BOLT
SCREW (8X20)

09139-08016-000 0913908016000

$5,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-45D00-000 3774045D00000

$21,97

Unit Price

BRAKE SWITCH SPRING
SPRING, STOP LAMP

09443-06016-000 0944306016000

$5,97

Unit Price

SWITCH ASSY, SIDE STAND

37840-16G00-000

37840-16G01-000

$152,97

Unit Price

BOLT

01550-06257-000

01550-0625A-000

$3,97

Unit Price

HORN ASSY

38500-16G00-000

38500-16G01-000

$78,97

Unit Price

BOLT

01550-0812B-000 015500812B000

$4,97

Unit Price

NUT

08316-1008B-000 083161008B000

$4,97

Unit Price

RELAY ASSY
RELAY ASSY, FUEL PUMP

38740-24X50-000 3874024X50000

$43,97

Unit Price

KEY, BLANK

37146-33E00-000 3714633E00000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
