Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI SV 1000 2007

CRANKCASE COVER

Item numbers

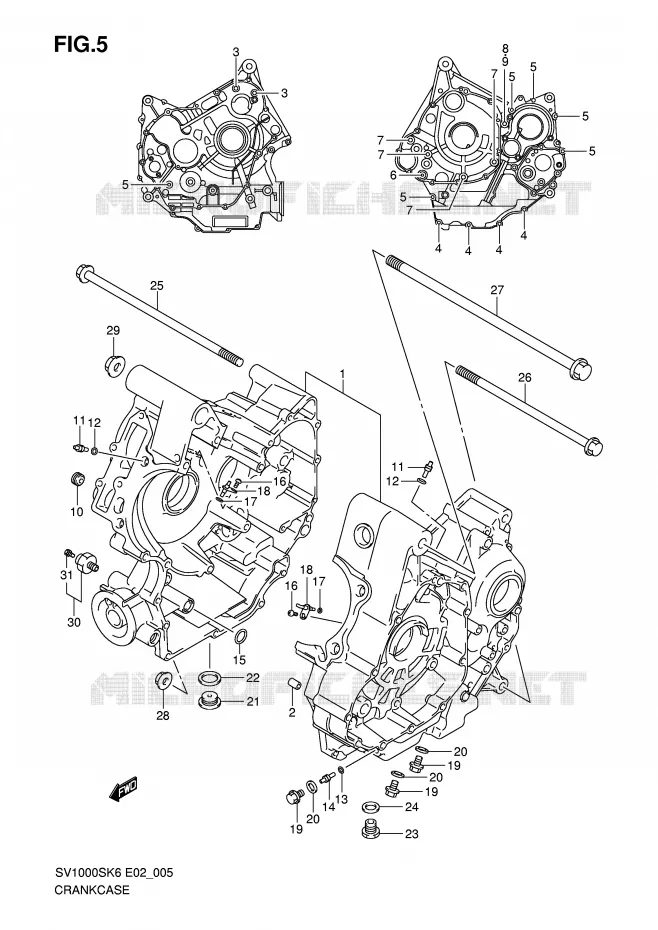

CRANKCASE Suzuki MOTO 1000 SV 2007 SV1000K7(E2)
1
2
3
3
4
4
4
4
5
5
5
5
5
5
6
7
7
7
7
8
9
10
11
11
12
12
13
14
15
16
16
17
17
18
18
19
19
19
20
20
20
21
22
23
24
25
26
27
28
29
30
31
1
CRANKCASE SET

11306-06820-000   1130606820000

1130606820000
Not available
2
PIN,CRANKCASE<br />PIN
PIN, CRANKCASE
PIN

11319-33E00-000   1131933E00000

1131933E00000

Unit Price

3
BOLT(8X110)<br />BOLT (L:110)
BOLT(8X110)
BOLT (L:110)

09106-08142-000   0910608142000

0910608142000

Unit Price

4
BOLT

01547-06303-000  

01547-0630B-000
 0154706303000

Unit Price

5
BOLT

01547-06703-000  

01547-0670A-000
 0154706703000

Unit Price

6
BOLT

01547-06853-000  

01547-0685A-000
 0154706853000

Unit Price

7
BOLT

07120-08903-000  

07120-0890B-000
 0712008903000

Unit Price

8
BOLT(8X125)
BOLT (L:125)

09106-08136-000   0910608136000

0910608136000

Unit Price

9
08322-0108A
WASHER, CRANKCASE BOLT

08322-01083-000  

0832201083000
Not available
10
JET, OIL GALLERY 3.6
JET, OIL GALLERY 3.6

11329-02F00-000   1132902F00000

1132902F00000

Unit Price

11
JET,OIL<br />JET, OIL GALLERY
JET, OIL
JET, OIL GALLERY

09493-28010-000   0949328010000

0949328010000

Unit Price

12
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

13
O RING(D:1.9,ID:12.6)<br />O RING, CRANKCASE
O RING(D:1.9, ID:12.6)
O RING, CRANKCASE

09280-12009-000   0928012009000

0928012009000

Unit Price

14
JET,OIL GALLERY<br />JET, OIL GALLERY MISSION
JET, OIL GALLERY
JET, OIL GALLERY MISSION

09493-20014-000   0949320014000

0949320014000

Unit Price

15
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

16
BOLT(6X12)<br />BOLT
BOLT(6X12)
BOLT

09106-06075-000   0910606075000

0910606075000

Unit Price

17
O-RING D:1.2 ID:4.7<br />O RING
O-RING D:1.2 ID:4.7
O RING

09280-05007-000   0928005007000

0928005007000

Unit Price

18
JET PISTON COOLING

11390-06G10-000   1139006G10000

1139006G10000

Unit Price

19
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

20
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

21
PLUG,OIL<br />PLUG
PLUG, OIL
PLUG

09248-16012-000   0924816012000

0924816012000

Unit Price

22
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

23
PLUG, OIL DRAIN

09247-14036-000   0924714036000

0924714036000

Unit Price

24
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

25
BOLT (10X225)<br />BOLT (L:225)
BOLT (10X225)
BOLT (L:225)

09103-10205-000   0910310205000

0910310205000

Unit Price

26
BOLT (L:255)
BOLT (L:255)

09103-10137-000   0910310137000

0910310137000

Unit Price

27
BOLT (L:320)

09103-12069-000   0910312069000

0910312069000
Not available
28
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

29
NUT

09159-12054-000   0915912054000

0915912054000

Unit Price

30
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

31
BOLT, OIL PRESSURE SWITCH
BOLT

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
