RADIATOR

RADIATOR HOSE - EXPANSION TANK FOR SUZUKI SV 1000 2007

ANTI POLLUTION SYSTEM

Item numbers

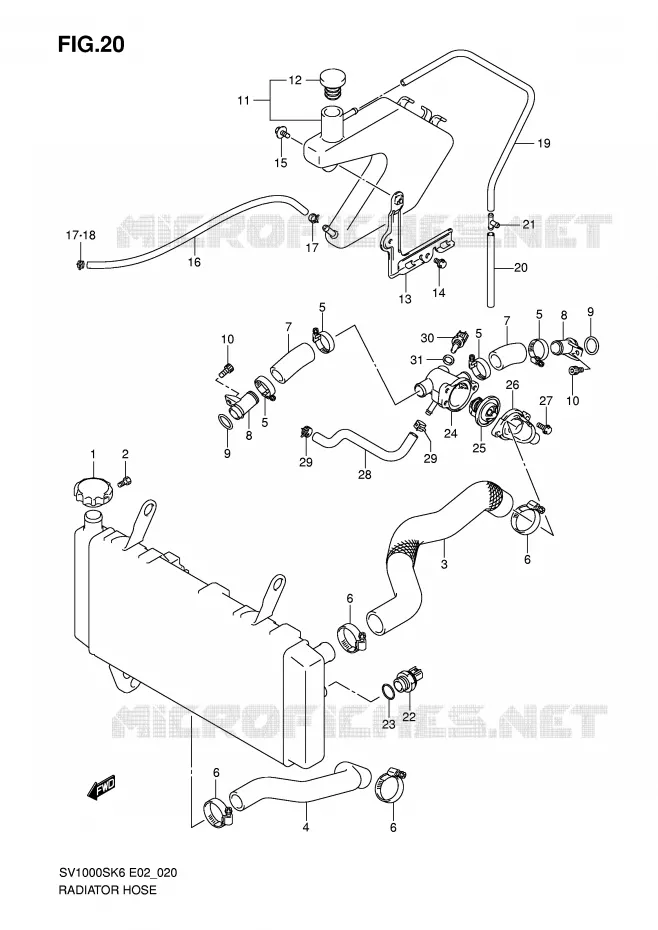

RADIATOR HOSE - EXPANSION TANK Suzuki MOTO 1000 SV 2007 SV1000S2K7(E2)
1
1
2
3
4
5
5
5
5
6
6
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
16
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
1
CAP, RADIATOR

17730-08D10-000   1773008D10000

1773008D10000

Unit Price

1
CAP, RADIATOR(1.1)
CAP, RADIATOR

17730-14G00-000   1773014G00000

1773014G00000

Unit Price

2
SCREW,RADIATOR CAP<br />SCREW
SCREW, RADIATOR CAP
SCREW

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

3
HOSE, RADIATOR INLET

17851-16G00-000   1785116G00000

1785116G00000

Unit Price

4
HOSE, RADIATOR OUTLET

17852-16G00-000   1785216G00000

1785216G00000

Unit Price

5
CLAMP
CLAMP

09402-28511-000   0940228511000

0940228511000

Unit Price

6
CLAMP
CLAMP

09402-38511-000   0940238511000

0940238511000

Unit Price

7
HOSE, CONNECTOR INLET

17853-02F00-000   1785302F00000

1785302F00000

Unit Price

8
UNION,CONNECTOR HOSE<br />UNION, CONNECTING HOSE
UNION, CONNECTOR HOSE
UNION, CONNECTING HOSE

17890-06G20-000   1789006G20000

1789006G20000

Unit Price

9
O RING
O RING

09280-18009-000   0928018009000

0928018009000

Unit Price

10
BOLT(6X12)

07130-06123-000  

09106-06075-000
 0713006123000

Unit Price

11
TANK ASSY, RESERVOIR

17910-16G00-000   1791016G00000

1791016G00000

Unit Price

12
CAP,RESERVOIR TANK<br />CAP
CAP, RESERVOIR TANK
CAP

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

13
DISCONTINUE
BRACKET COMP RSVR TANK

17920-16G00-000   1792016G00000

1792016G00000
Not available
14
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

15
BOLT

09111-06063-000  

09111-06085-000
 0911106063000

Unit Price

16
HOSE<br />HOSE, RESERVOIR TANK INLET
HOSE
HOSE, RESERVOIR TANK INLET

09352-50901-600   0935250901600

0935250901600

Unit Price

16
DISCONTINUE
HOSE, RESERVOIR TANK INLET

17981-16G00-000   1798116G00000

1798116G00000
Not available
17
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
18
CLIP

09401-10411-000   0940110411000

0940110411000

Unit Price

19
HOSE<br />HOSE, RESERVOIR TANK OVERFLOW, NO.1
HOSE
HOSE, RESERVOIR TANK OVERFLOW, NO.1

09352-50901-600   0935250901600

0935250901600

Unit Price

20
HOSE(7X10.2X600)
HOSE(7X10.2X600)

09352-70103-600  

09352-70104-600
 0935270103600

Unit Price

21
3 WAY
JOINT

09367-08005-000   0936708005000

0936708005000

Unit Price

22
SWITCH COMP,RDTR FAN
SWITCH COMP, RDTR FAN

17680-33E00-000  

17680-33E01-000
 1768033E00000

Unit Price

23
O RING
O RING

17689-50F00-000   1768950F00000

1768950F00000
Not available
24
CONNECTOR, THERMOSTAT INLET
CONNECTOR, THERMOSTAT INLET

17662-02F11-000   1766202F11000

1766202F11000

Unit Price

25
THERMOSTAT COMP, WATER

17670-06G50-000  

17670-06G51-000
 1767006G50000

Unit Price

26
CAP, THERMOSTAT CONNECTOR

17663-42E00-000   1766342E00000

1766342E00000

Unit Price

27
01550-0616A
BOLT, CONNECTOR

01550-06163-000  

0155006163000
Not available
28
HOSE, WATER BYPASS
HOSE, CONNECTOR TO WATER PUMP

17856-16G10-000   1785616G10000

1785616G10000

Unit Price

29
CLIP
CLIP

09401-12409-000  

09401-12414-000
 0940112409000

Unit Price

30
SENSOR, WATER TEMP

13650-10G00-000   1365010G00000

1365010G00000

Unit Price

31
WASHER<br />GASKET, TEMP SENSOR
WASHER
GASKET, TEMP SENSOR

09168-12017-000   0916812017000

0916812017000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
