FRONT MASTER CYLINDER

SWINGARM (E2,E4,E25,E34,P37) FOR SUZUKI TL-S 1000 2001

SWINGARM (MODEL V E18,E22,E24,E39) REFER TO FIG.52B(L-7) FOR MODEL W/X/Y/K1 E18,E22,E24

Item numbers

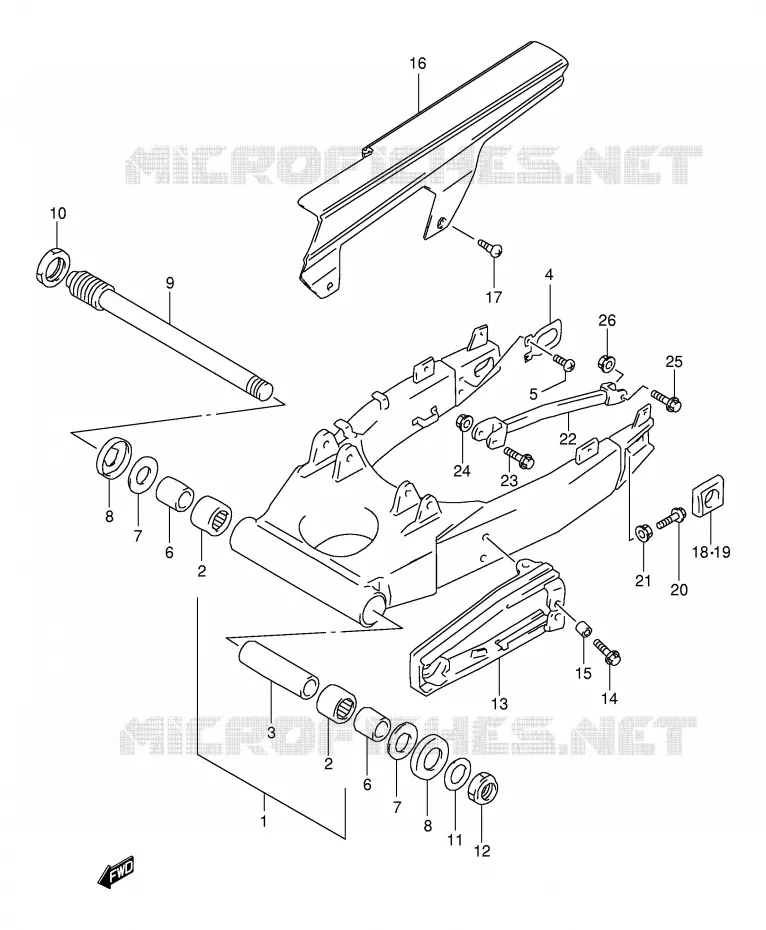

SWINGARM (E2,E4,E25,E34,P37) Suzuki MOTO 1000 TL-S 2001 TL1000SK1(E2)
1
2
2
3
3
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
DISCONTINUE<br />SWINGING ARM ASSY, REAR
DISCONTINUE
SWINGING ARM ASSY, REAR

61000-02F10-000   6100002F10000

6100002F10000
Not available
2
BEARING,PROP SHAFT<br />BEARING, PIVOT (30X40X25)
BEARING, PROP SHAFT
BEARING, PIVOT (30X40X25)

09263-30040-000   0926330040000

0926330040000

Unit Price

3
SPACER, RR SWGARM PIVOT CTR

61280-33E00-000  

61281-33E20-000
 6128033E00000

Unit Price

4
PLATE,RR SWING ARM BRKT<br />PLATE, BRACKET
PLATE, RR SWING ARM BRKT
PLATE, BRACKET

61124-33E00-000   6112433E00000

6112433E00000

Unit Price

5
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

6
SPACER, RR SWGARM PIVOT BEARING

61251-17E10-000  

61251-17E20-000
 6125117E10000

Unit Price

7
WASHER<br />WASHER, THRUST
WASHER
WASHER, THRUST

08211-25481-000   0821125481000

0821125481000

Unit Price

8
SEAL,DUST
SEAL, DUST

61262-17E10-000  

61262-17E11-000
 6126217E10000

Unit Price

9
DISCONTINUE
SHAFT, PIVOT

61211-33E00-000   6121133E00000

6121133E00000
Not available
10
NUT,RR SWGARM PIVOT BOLT<br />NUT, PIVOT BOLT
NUT, RR SWGARM PIVOT BOLT
NUT, PIVOT BOLT

61214-40C31-000   6121440C31000

6121440C31000

Unit Price

11
WASHER
WASHER

09160-25070-000  

09160-25070-A05
 0916025070000
12
NUT

09159-25001-000  

09159-25003-000
 0915925001000

Unit Price

13
DISCONTINUE<br />BUFFER, CHAIN TOUCH DEFENSE
DISCONTINUE
BUFFER, CHAIN TOUCH DEFENSE

61273-02F00-000  

6127302F00000
Not available
14
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06152-000   0911606152000

0911606152000

Unit Price

15
SPACER (6.5X9X5)
SPACER (6.5X9X5)

09180-06306-000   0918006306000

0918006306000

Unit Price

16
CASE, CHAIN
CASE, CHAIN

61310-34E00-000   6131034E00000

6131034E00000

Unit Price

17
SCREW<br />SCREW (6X16)
SCREW
SCREW (6X16)

09139-06083-000   0913906083000

0913906083000

Unit Price

18
ADJUSTER,CHAIN<br />WASHER, CHAIN ADJUSTER RH
ADJUSTER, CHAIN
WASHER, CHAIN ADJUSTER RH

61445-33E00-000   6144533E00000

6144533E00000

Unit Price

19
ADJUSTER,CHAIN<br />WASHER, CHAIN ADJUSTER LH
ADJUSTER, CHAIN
WASHER, CHAIN ADJUSTER LH

61446-33E10-000   6144633E10000

6144633E10000

Unit Price

20
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

21
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

22
DISCONTINUE<br />TORQUE LINK, REAR
DISCONTINUE
TORQUE LINK, REAR

64310-33E00-000   6431033E00000

6431033E00000
Not available
23
DISCONTINUE<br />BOLT, FRONT (8X44)
DISCONTINUE
BOLT, FRONT (8X44)

09111-08083-000   0911108083000

0911108083000
Not available
24
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
25
BOLT CALIPER<br />BOLT, REAR (10X37)
BOLT CALIPER
BOLT, REAR (10X37)

09103-10019-000   0910310019000

0910310019000

Unit Price

26
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (E2,E4,E25,E34,P37) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
