TRANSMISSION (MODEL K4 / K5 / K6)

GEAR SHIFTING ASSY FOR SUZUKI V-STROM 1000 2005

CLUTCH MASTER CYLINDER

Item numbers

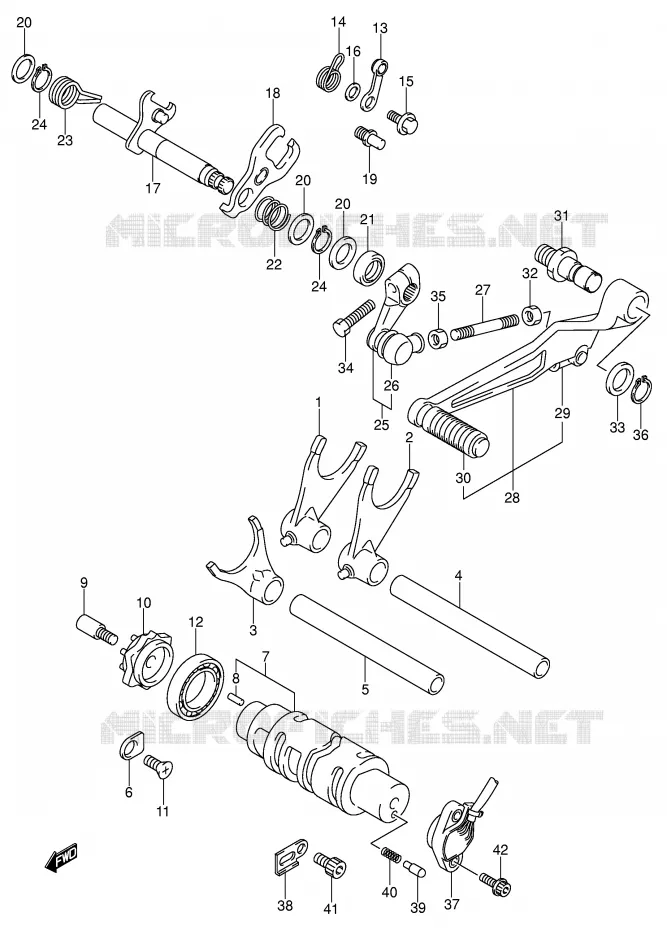

GEAR SHIFTING ASSY Suzuki MOTO 1000 V-STROM 2005 DL1000K5(E2)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
17
17
18
19
20
20
20
21
22
23
24
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
FORK, GEAR SHIFT

25211-17E01-000  

25211-17E02-000
 2521117E01000

Unit Price

2
FORK, GEAR SHIFT NO.1
FORK, GEAR SHIFT NO.1

25211-35F00-000   2521135F00000

2521135F00000

Unit Price

3
FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFT NO.3

25231-35F00-000   2523135F00000

2523135F00000

Unit Price

4
SHAFT,GEAR SHIFT FORK<br />SHAFT, GEAR SHIFT FORK NO.2
SHAFT, GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK NO.2

25411-02F20-000   2541102F20000

2541102F20000

Unit Price

5
SHAFT,GEAR SHIFT FORK<br />SHAFT, GEAR SHIFT FORK NO.1
SHAFT, GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK NO.1

25411-02F20-000   2541102F20000

2541102F20000

Unit Price

6
RETAINER<br />RETAINER, SHIFT CAM
RETAINER
RETAINER, SHIFT CAM

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

7
CAM, GEAR SHIFT
CAM, GEAR SHIFT

25310-02F10-000   2531002F10000

2531002F10000

Unit Price

8
PIN<br />PIN, SHIFT CAM
PIN
PIN, SHIFT CAM

04221-04089-000   0422104089000

0422104089000

Unit Price

9
PIN,SHIFT CAM DRIVEN GEAR<br />STOPPER, SHIFT CAM
PIN, SHIFT CAM DRIVEN GEAR
STOPPER, SHIFT CAM

25312-12C00-000   2531212C00000

2531212C00000

Unit Price

10
PLATE, GEAR SHIFT CAM
PLATE, GEAR SHIFT

25381-13E00-000   2538113E00000

2538113E00000

Unit Price

10
PLATE,GEAR SHIFT CAM<br />PLATE, GEAR SHIFT
PLATE, GEAR SHIFT CAM
PLATE, GEAR SHIFT

25381-13E10-000   2538113E10000

2538113E10000

Unit Price

11
BOLT, 6X12
SCREW, SHIFT CAM, 6X12

09125-06110-000   0912506110000

0912506110000

Unit Price

12
BEARING, RH<br />BEARING, SHIFT CAM
BEARING, RH
BEARING, SHIFT CAM

08113-69050-000   0811369050000

0811369050000

Unit Price

13
25350-06G10
STOPPER, SHIFT CAM

25350-06G00-000   2535006G00000

2535006G00000
Not available
14
SPRING,SHIFT CAM STO<br />SPRING, STOPPER ARM
SPRING, SHIFT CAM STO
SPRING, STOPPER ARM

25355-13E00-000   2535513E00000

2535513E00000

Unit Price

14
SPRING, GEAR SHIFT CAM STOPPER
SPRING, STOPPER ARM

25355-38F00-000   2535538F00000

2535538F00000

Unit Price

15
BOLT<br />BOLT (6X14.3)
BOLT
BOLT (6X14.3)

09111-06041-000   0911106041000

0911106041000

Unit Price

16
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

17
SHAFT, GEAR SHIFT

25510-06G10-000   2551006G10000

2551006G10000

Unit Price

17
SHAFT, GEAR SHIFT

25510-06G00-000   2551006G00000

2551006G00000
Not available
18
PLATE, GEAR SHIFT CAM DRIVE
PLATE, GEAR SHIFT

25512-06G00-000   2551206G00000

2551206G00000

Unit Price

19
STOPPER,GEAR SHIFT ARM<br />STOPPER, GEAR SHIFT
STOPPER, GEAR SHIFT ARM
STOPPER, GEAR SHIFT

25671-01011-000   2567101011000

2567101011000

Unit Price

20
WASHER,GEAR SHIFT SH<br />WASHER, GEAR SHIFT RH
WASHER, GEAR SHIFT SH
WASHER, GEAR SHIFT RH

09181-14167-000   0918114167000

0918114167000

Unit Price

21
SEAL,OIL(14X22X6)<br />SEAL, SHIFT SHAFT OIL
SEAL, OIL(14X22X6)
SEAL, SHIFT SHAFT OIL

09283-14006-000   0928314006000

0928314006000

Unit Price

22
SPRING<br />SPRING.GEAR SHIFT PLATE
SPRING
SPRING.GEAR SHIFT PLATE

09440-17009-000   0944017009000

0944017009000

Unit Price

23
SPRING<br />SPRING, SHIFT SHAFT
SPRING
SPRING, SHIFT SHAFT

09444-20001-000   0944420001000

0944420001000

Unit Price

24
CIRCLIP

08331-31146-000  

08331-3114A-000
 0833131146000

Unit Price

25
ARM, GEAR SHIFT LINK

25520-06G00-000  

25520-06G01-000
 2552006G00000

Unit Price

26
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

27
ROD, GEAR SHIFT LINK

25525-43510-000   2552543510000

2552543510000

Unit Price

28
LEVER ASSY, GEAR SHIFT

25600-06G00-000  

25600-06G12-000
 2560006G00000

Unit Price

29
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

30
RUBBER,GEAR SHIFT PEDAL<br />RUBBER
RUBBER, GEAR SHIFT PEDAL
RUBBER

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

31
SHAFT, GEAR SHIFT LEVER

25617-03F00-000  

25617-03F10-000
 2561703F00000

Unit Price

32
GR SHFT LINK ROD NUT<br />NUT
GR SHFT LINK ROD NUT
NUT

09140-06011-000   0914006011000

0914006011000

Unit Price

33
SEAL WASHER<br />WASHER (12.5X20X1)
SEAL WASHER
WASHER (12.5X20X1)

09160-12011-000  

0916012011000
Not available
34
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

35
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

36
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

37
BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37730-06G00-000   3773006G00000

3773006G00000

Unit Price

38
CLAMP,GENERATOR LEAD WIRE<br />CLAMP, GEAR SHIFT
CLAMP, GENERATOR LEAD WIRE
CLAMP, GEAR SHIFT

31497-45000-000   3149745000000

3149745000000

Unit Price

39
K S PAWL ROLLER<br />CONTACT, GEAR SHIFT
K S PAWL ROLLER
CONTACT, GEAR SHIFT

09209-05011-000   0920905011000

0920905011000

Unit Price

40
K S PAWL SPRING<br />SPRING, GEAR SHIFT SW
K S PAWL SPRING
SPRING, GEAR SHIFT SW

09440-04010-000   0944004010000

0944004010000

Unit Price

41
SCREW, CLAMP

07130-05103-000   0713005103000

0713005103000
Not available
42
BOLT

07120-05163-000  

07120-0516A-000
 0712005163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2005

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 V-STROM 2005

Select your Suzuki 2005 model

1000 V-STROM 2005 DL1000K5(E2)
1000 V-STROM 2005 DL1000K5(E2)

V-STROM 1000

Suzuki V-STROM

Displacement: 1000 cc
Year: 2005
Model code DL1000K5(E2)
