Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI V-STROM 1000 2007

GEAR SHIFTING ASSY

Item numbers
TRANSMISSION Suzuki MOTO 1000 V-STROM 2007 DL1000 K7 (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
SHAFT, COUNTER
SHAFT, COUNTER (NT:12)

24120-06G00-000   2412006G00000

2412006G00000

Unit Price

2
GEAR, 2ND DRIVE (NT:15)
GEAR, 2ND DRIVE (NT:15)

24221-02F01-000   2422102F01000

2422102F01000

Unit Price

3
GEAR, 3RD & 4TH DRIVE

24231-02F20-000  

24231-02F30-000
 2423102F20000

Unit Price

4
GEAR, 5TH DRIVE (NT:23)

24251-02F11-000   2425102F11000

2425102F11000

Unit Price

5
BUSH, 5TH DRIVE GEAR

24252-02F10-000   2425202F10000

2425202F10000

Unit Price

6
GEAR, 6TH DRIVE (NT:23)

24261-06G00-000   2426106G00000

2426106G00000

Unit Price

7
BUSH, 6TH DRIVE GEAR

24262-02F00-000   2426202F00000

2426202F00000

Unit Price

8
WASHER<br />WASHER, 6TH DRIVE
WASHER
WASHER, 6TH DRIVE

09181-22167-000   0918122167000

0918122167000

Unit Price

9
BEARING
BEARING, CENTER SHAFT LH

09262-20139-000   0926220139000

0926220139000

Unit Price

10
BALL BEARG 25X62X1<br />BEARING, CENTER SHAFT RH
BALL BEARG 25X62X1
BEARING, CENTER SHAFT RH

09262-25073-000   0926225073000

0926225073000

Unit Price

11
O RING D:1.9 ID:16.6<br />O RING, CENTER SHAFT
O RING D:1.9 ID:16.6
O RING, CENTER SHAFT

09280-17004-000   0928017004000

0928017004000

Unit Price

12
CIRCLIP<br />CIRCLIP, 5TH DRIVE
CIRCLIP
CIRCLIP, 5TH DRIVE

09380-27001-000   0938027001000

0938027001000

Unit Price

13
SHAFT, DRIVE
SHAFT, DRIVE

24130-02F10-000   2413002F10000

2413002F10000

Unit Price

14
GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT:36)

24311-06G00-000   2431106G00000

2431106G00000

Unit Price

15
BUSH<br />BUSH, 1ST DRIVEN
BUSH
BUSH, 1ST DRIVEN

24312-02F00-000   2431202F00000

2431202F00000

Unit Price

16
GEAR, 2ND DRIVEN (NT:29)
GEAR, 2ND DRIVEN (NT:29)

24321-02F11-000   2432102F11000

2432102F11000

Unit Price

17
BUSH,2ND DRIVEN GEAR<br />BUSH, 2ND DRIVEN
BUSH, 2ND DRIVEN GEAR
BUSH, 2ND DRIVEN

24322-02F01-000   2432202F01000

2432202F01000

Unit Price

18
GEAR, 3RD DRIVEN

24331-02F12-000  

24331-02F20-000
 2433102F12000

Unit Price

19
BUSH, 3RD DRIVEN GEAR

24332-17E20-000   2433217E20000

2433217E20000

Unit Price

20
GEAR, 4TH DRIVEN

24341-02F20-000  

24341-02F30-000
 2434102F20000

Unit Price

21
BUSH, 3RD DRIVEN GEAR
BUSH, 4TH DRIVEN GEAR

24332-17E20-000   2433217E20000

2433217E20000

Unit Price

22
GEAR,5TH DRIVEN
GEAR, 5TH DRIVEN

24351-02F13-000  

24351-02F20-000
 2435102F13000

Unit Price

23
GEAR, 6TH DRIVEN (NT:21)

24361-06G00-000   2436106G00000

2436106G00000

Unit Price

24
WASHER(27X36X1)<br />WASHER, 2ND DRIVEN GEAR
WASHER(27X36X1)
WASHER, 2ND DRIVEN GEAR

09160-27008-000   0916027008000

0916027008000

Unit Price

25
WASHER, 3RD & 4TH DRIVEN
WASHER, 3RD & 4TH DRIVEN

09167-27002-000   0916727002000

0916727002000
Not available
26
WASHER,3RD & 4TH DRIVEN<br />WASHER, 3RD DRIVEN
WASHER, 3RD & 4TH DRIVEN
WASHER, 3RD DRIVEN

24333-02F00-000   2433302F00000

2433302F00000

Unit Price

27
WASHER,3RD & 4TH DRIVEN<br />WASHER, 4TH DRIVEN
WASHER, 3RD & 4TH DRIVEN
WASHER, 4TH DRIVEN

24333-02F00-000   2433302F00000

2433302F00000

Unit Price

28
WASHER<br />WASHER, 1ST DRIVEN RH
WASHER
WASHER, 1ST DRIVEN RH

09181-20251-000   0918120251000

0918120251000

Unit Price

29
WASHER<br />WASHER, 1ST DRIVEN LH
WASHER
WASHER, 1ST DRIVEN LH

09181-22223-000   0918122223000

0918122223000

Unit Price

30
BEARING
BEARING, DRIVE SHAFT RH

09262-20082-000   0926220082000

0926220082000

Unit Price

31
BEARING(28X68X20)<br />BEARING, DRIVE SHAFT LH
BEARING(28X68X20)
BEARING, DRIVE SHAFT LH

09262-28040-000   0926228040000

0926228040000

Unit Price

32
SEAL,OIL<br />SEAL, DRIVE SHAFT
SEAL, OIL
SEAL, DRIVE SHAFT

09283-38020-000   0928338020000

0928338020000

Unit Price

33
CIRCLIP<br />CIRCLIP, 2ND DRIVEN
CIRCLIP
CIRCLIP, 2ND DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price

34
CIRCLIP<br />CIRCLIP, 3RD DRIVEN
CIRCLIP
CIRCLIP, 3RD DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price

35
CIRCLIP<br />CIRCLIP, 4TH DRIVEN
CIRCLIP
CIRCLIP, 4TH DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price

36
RETAINER, DRIVE SHAFT BEARING
RETAINER, DRIVE SHAFT

24741-06G00-000   2474106G00000

2474106G00000

Unit Price

37
RETAINER<br />RETAINER, CENTER SHAFT
RETAINER
RETAINER, CENTER SHAFT

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

38
RETAINER,DRIVE SHAFT OIL SEAL<br />RETAINER, DRIVE SHAFT
RETAINER, DRIVE SHAFT OIL SEAL
RETAINER, DRIVE SHAFT

24751-06G00-000   2475106G00000

2475106G00000

Unit Price

39
SCREW<br />SCREW, DRIVE SHAFT (6X12)
SCREW
SCREW, DRIVE SHAFT (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

40
SCREW
SCREW, CENTER SHAFT

02112-0612A-000   021120612A000

021120612A000

Unit Price

41
BOLT
BOLT, DRIVE SHAFT OIL

07130-0612A-000   071300612A000

071300612A000

Unit Price

42
SPROCKET, ENGINE

27510-20A20-000  

27510-20A22-000
 2751020A20000

Unit Price

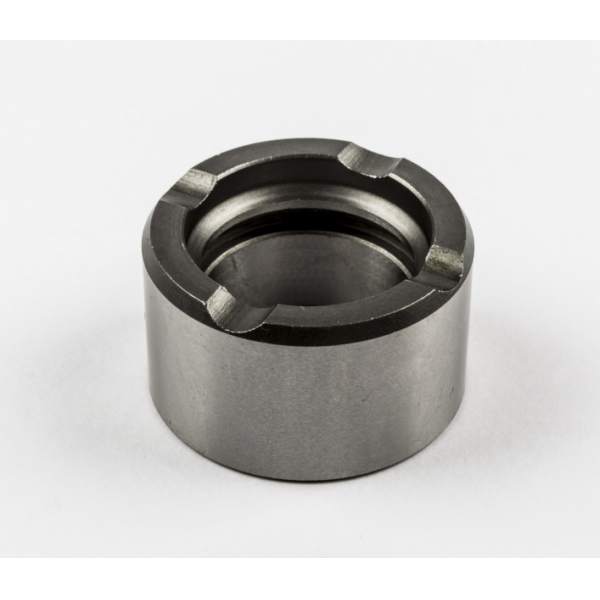

43
SPACER,ENGINE SPROCKET<br />SPACER, SPROCKET
SPACER, ENGINE SPROCKET
SPACER, SPROCKET

27531-24B13-000   2753124B13000

2753124B13000

Unit Price

44
CHAIN, DRIVE(RK525SMOZ8)

27600-06G00-112  

27600-06G40-112
 2760006G00112

Unit Price

45
JOINT SET
JOINT SET, CHAIN

27620-06G00-000   2762006G00000

2762006G00000

Unit Price

46
NUT
NUT

09159-20004-000   0915920004000

0915920004000

Unit Price

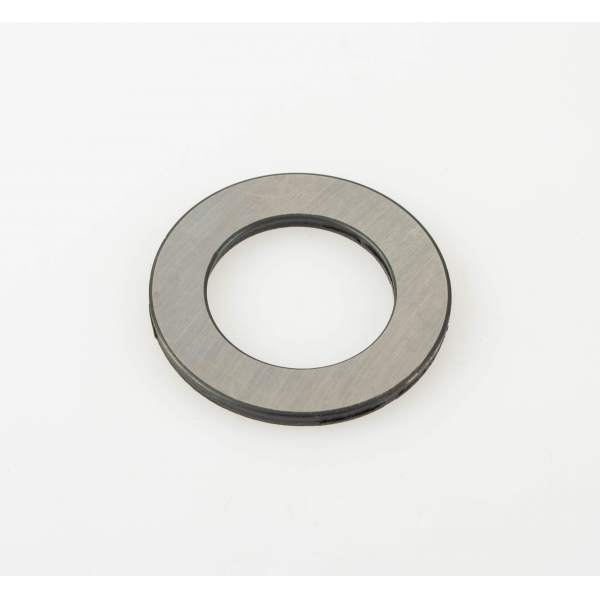

47
WASHER (25X41X3)
WASHER (25X41X3)

09160-25009-000   0916025009000

0916025009000

Unit Price

48
O-RING<br />O RING (D:2.4,ID:23.7)
O-RING
O RING (D:2.4, ID:23.7)

09280-24010-000   0928024010000

0928024010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2007
