Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TIMING

THROTTLE BODY FOR SUZUKI V-STROM 1000 2009

AIR FILTER

Item numbers

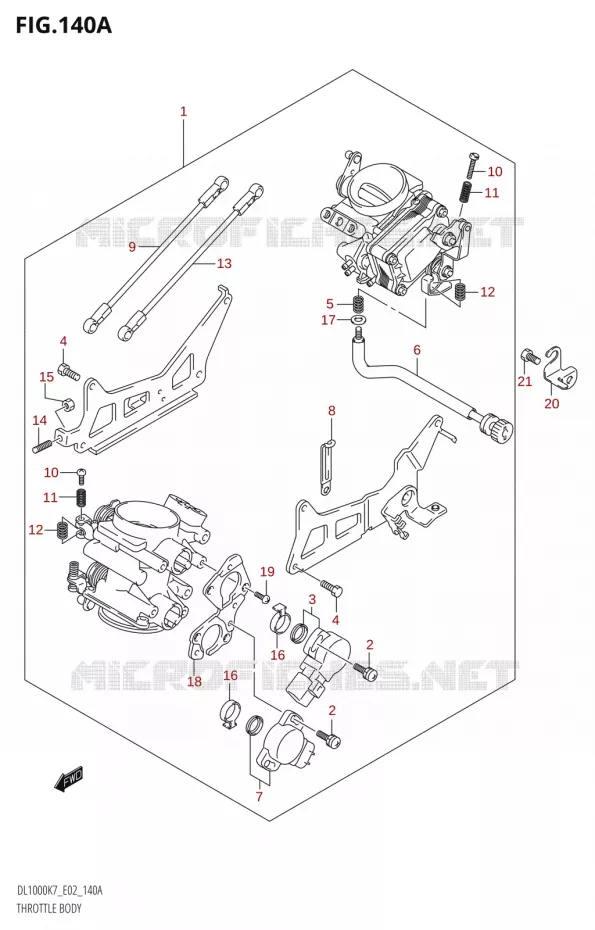

THROTTLE BODY Suzuki MOTO 1000 V-STROM 2009 DL1000K9(E2)
1
1
2
2
3
4
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
16
16
17
18
19
20
21
1
THROTTLE BODY

13405-06G31-000   1340506G31000

1340506G31000
Not available
1
DISCONTINUE
THROTTLE BODY

13405-06G51-000   1340506G51000

1340506G51000
Not available
2
.SCREW
.SCREW

13605-02F00-000   1360502F00000

1360502F00000

Unit Price

3
SENSOR ASSY

13580-06G00-000  

1358006G00000
Not available
4
DISCONTINUE<br />.BOLT
DISCONTINUE
.BOLT

13612-02F00-000   1361202F00000

1361202F00000
Not available
5
.SPRING
.SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

6
SCREW ASSY, ADJUST
.ADJUST SCREW ASSY

13270-06G00-000   1327006G00000

1327006G00000

Unit Price

7
SENSOR ASSY,THROTTLE
SENSOR ASSY, THROTTLE

13580-02F00-000  

13580-02F01-000
 1358002F00000

Unit Price

8
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

9
.ROD ASSY

13552-06G10-000   1355206G10000

1355206G10000

Unit Price

10
.SCREW

13548-42F00-000   1354842F00000

1354842F00000

Unit Price

11
.SPRING
.SPRING

13271-44B00-000   1327144B00000

1327144B00000

Unit Price

12
.SPRING

13268-89J00-000   1326889J00000

1326889J00000
Not available
13
.ROD ASSY

13552-06G00-000   1355206G00000

1355206G00000

Unit Price

14
DISCONTINUE
.SCREW, AJUST

13605-06G00-000   1360506G00000

1360506G00000
Not available
15
.NUT
.NUT

13607-47070-000   1360747070000

1360747070000

Unit Price

16
.RING

13311-06G00-000   1331106G00000

1331106G00000

Unit Price

17
.WASHER
.WASHER

13386-09410-000   1338609410000

1338609410000

Unit Price

18
.PLATE

13627-06G00-000   1362706G00000

1362706G00000

Unit Price

19
.SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

20
PLATE, IDLE ADJUST

13279-06G00-000   1327906G00000

1327906G00000

Unit Price

21
BOLT
BOLT

01500-0612B-000   015000612B000

015000612B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2009

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 V-STROM 2009

Select your Suzuki 2009 model

1000 V-STROM 2009 DL1000K9(E2)
1000 V-STROM 2009 DL1000K9(E2)
1000 V-STROM 2009 DL1000K9(E2)

V-STROM 1000

Suzuki V-STROM

Displacement: 1000 cc
Year: 2009
Model code DL1000K9(E2)
