FRAME FOR SUZUKI V-STROM 1000 2010

CARRIER

Item numbers

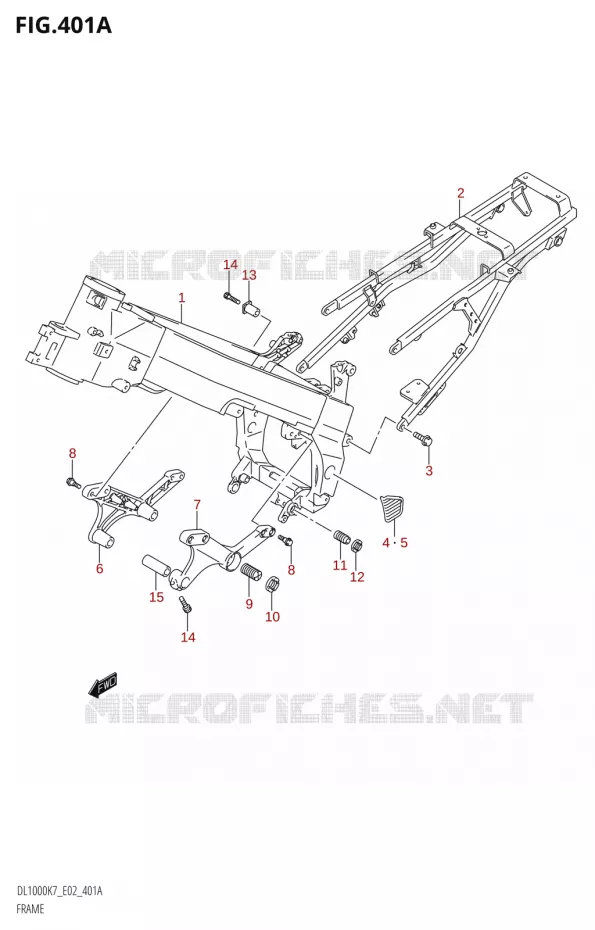

FRAME Suzuki MOTO 1000 V-STROM 2010 DL1000 L0 (E02,E19,E24)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
14
15
1
DISCONTINUE
FRAME(BLACK)

41100-06G01-YAP  

4110006G01YAP
Not available
2
RAIL, SEAT

41200-06G00-000   4120006G00000

4120006G00000

Unit Price

3
BOLT, CALIPER
BOLT(10X30)

09103-10379-000   0910310379000

0910310379000

Unit Price

4
COVER, PIVOT, R

43585-27G00-000   4358527G00000

4358527G00000

Unit Price

5
COVER, PIVOT LH

43595-27G00-000   4359527G00000

4359527G00000

Unit Price

6
DISCONTINUE
BRACKET, ENG MTG, R(BLACK)

41911-06G20-YAP   4191106G20YAP

4191106G20YAP
Not available
7
DISCONTINUE
BRACKET, ENG MTG, L(BLACK)

41912-06G20-YAP   4191206G20YAP

4191206G20YAP
Not available
8
BOLT, 8X30
BOLT, 8X30(8X30)

09106-08175-000   0910608175000

0910608175000

Unit Price

9
BOLT, CRANK CASE ADJUST CTR

41923-16G00-000   4192316G00000

4192316G00000

Unit Price

10
NUT, CRANK CASE ADJUST CTR

41922-19F00-000  

41922-19F20-000
 4192219F00000

Unit Price

11
BOLT, CRANK CASE ADJUST LWR

41921-16G00-000  

41921-16G01-000
 4192116G00000

Unit Price

12
NUT,CRANK CASE ADJUST BOLT
NUT, CRANK CASE ADJUST BOLT

41922-33E00-000   4192233E00000

4192233E00000

Unit Price

13
SPACER, MOUNTING RR UPR RH
SPACER, MOUNTING REAR UPPER RH

41941-19F01-000   4194119F01000

4194119F01000

Unit Price

14
BOLT

09106-08149-000  

09106-08170-000
 0910608149000

Unit Price

15
DISCONTINUE<br />SPACER,ENG HEAD MTG,FR,L
DISCONTINUE
SPACER, ENG HEAD MTG, FR, L

41198-02F00-000   4119802F00000

4119802F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2010

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 V-STROM 2010

Select your Suzuki 2010 model

1000 V-STROM 2010 DL1000 L0 (E02,E19,E24)

V-STROM 1000

Suzuki V-STROM

Displacement: 1000 cc
Year: 2010
Model code DL1000 L0 (E02,E19,E24)
