CRANKCASE COVER

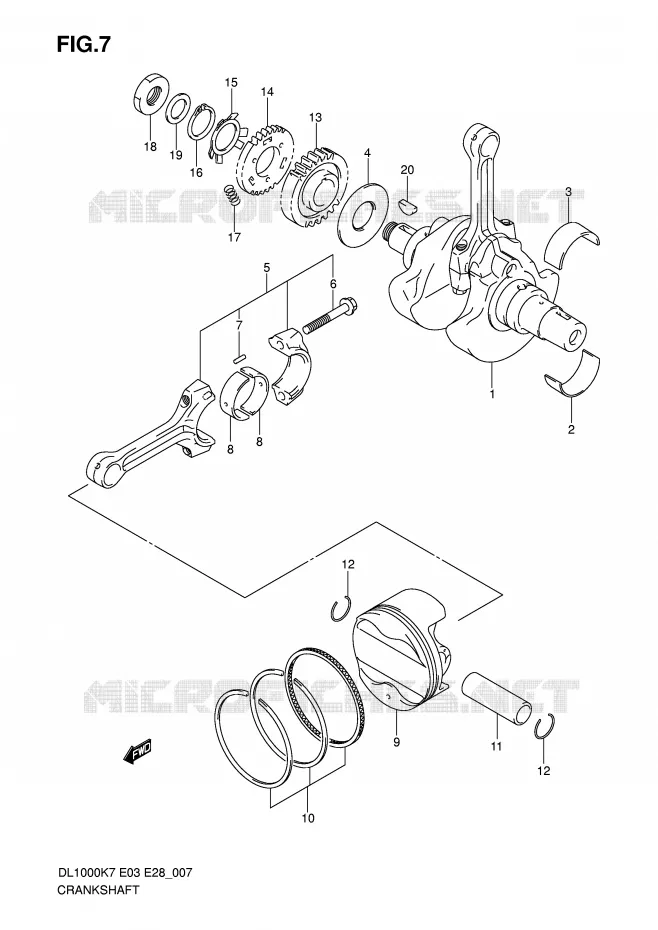

CRANKSHAFT FOR SUZUKI V-STROM 1000 2010

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT

12220-06G00-000 1222006G00000

$1 804,97

Unit Price

BEARING, CRANKSHAFT
BEARING, LOWER (GREEN)

12229-16G00-0A0 1222916G000A0

$40,97

Unit Price

BEARING, CRANKSHAFT
BEARING, LOWER (BLACK)

12229-16G00-0B0 1222916G000B0

$40,97

Unit Price

BEARING, LOWER (BROWN)

12229-16G00-0C0 1222916G000C0

Not available

BEARING, CRANKSHAFT
BEARING, UPPER (GREEN)

12229-16G00-0A0 1222916G000A0

$40,97

Unit Price

BEARING, CRANKSHAFT
BEARING, UPPER (BLACK)

12229-16G00-0B0 1222916G000B0

$40,97

Unit Price

BEARING, UPPER (BROWN)

12229-16G00-0C0 1222916G000C0

Not available

WASHER, CRANK THRUST

12652-38B00-000 1265238B00000

$66,97

Unit Price

CONNECTING ROD ASSY

12160-06G00-000 1216006G00000

$256,97

Unit Price

BOLT, CONNECTING ROD
BOLT

12163-06G00-000 1216306G00000

$20,97

Unit Price

PIN, CONNROD
PIN

12165-27A50-000 1216527A50000

$1,97

Unit Price

BEARING, CRANK PIN

12164-02F12-0A0 1216402F120A0

$29,97

Unit Price

BEARING, CRANK PIN

12164-02F12-0B0 1216402F120B0

$37,97

Unit Price

BEARING, CRANK PIN

12164-02F12-0C0 1216402F120C0

$37,97

Unit Price

BEARING, CRANK PIN

12164-02F12-0D0 1216402F120D0

$37,97

Unit Price

PISTON

12111-06G00-0F0 1211106G000F0

$283,97

Unit Price

RING SET, PISTON

12140-02F42-000 1214002F42000

$155,97

Unit Price

PIN, PISTON

12151-02F00-000 1215102F00000

$24,97

Unit Price

CIRCLIP

09381-22002-000 0938122002000

$2,97

Unit Price

GEAR, PRIMARY DRIVE

21111-02F11-000 2111102F11000

$123,97

Unit Price

GEAR, PRIMARY DRIVE SCISSORS

21112-02F00-000 2111202F00000

$96,97

Unit Price

WASHER, PRI DRIVE
WASHER

21114-02F00-000 2111402F00000

$12,97

Unit Price

08331-31409
CIRCLIP

08331-31406-000

Not available

SPRING

09440-07001-000 0944007001000

$3,97

Unit Price

NUT

09140-22012-000 0914022012000

$17,97

Unit Price

WASHER

09164-22007-000 0916422007000

$9,97

Unit Price

KEY

09420-06001-000 0942006001000

$12,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.
