CAMSHAFT / VALVE

TIMING FOR SUZUKI V-STROM 1000 2011

THROTTLE BODY

CHAIN, CAM SHAFT DRIVE

12760-23F00-000 1276023F00000

$108,97

Unit Price

GUIDE, CAM CHAIN

12771-06G00-000 1277106G00000

$30,97

Unit Price

TENSIONER, CAM CHAIN FR
TENSIONER, FRONT CAM CHAIN

12810-06G00-000 1281006G00000

$92,97

Unit Price

TENSIONER, CAM CHAIN RR
TENSIONER, REAR CAM CHAIN

12815-06G00-000 1281506G00000

$92,97

Unit Price

BOLT

07120-0612A-000

07120-0612B-000

$5,97

Unit Price

ADJUSTER ASSY, TENSIONER FR
ADJUSTER ASSY, FRONT TENSIONER

12832-05A10-000 1283205A10000

$190,97

Unit Price

GASKET (12X21X2)

09168-12018-000

Not available

ADJUSTER ASSY, TENSIONER
ADJUSTER ASSY, REAR TENSIONER

12830-30A01-000 1283030A01000

$116,97

Unit Price

O RING

12832-02A00-000 1283202A00000

$4,97

Unit Price

SPRING

12833-30A01-000 1283330A01000

$4,97

Unit Price

PLUG, ADJUSTER
PLUG

12834-02A00-000 1283402A00000

$15,97

Unit Price

GASKET, TENSIONER ADJUSTER
GASKET

12837-19B10-000 1283719B10000

$4,97

Unit Price

GASKET, TENSIONER ADJUSTER
GASKET

12837-24A10-000 1283724A10000

$4,97

Unit Price

BOLT

07130-0625A-000 071300625A000

$4,97

Unit Price

BOLT

07130-0620A-000

07130-0620B-000

$5,97

Unit Price

GEAR, CAM CHAIN IDLER NO.2

12750-06G00-000 1275006G00000

$586,97

Unit Price

SHAFT, IDLER NO.2

12755-02F01-000 1275502F01000

$53,97

Unit Price

GASKET
GASKET (26.5X30.5X1)

09168-26001-000 0916826001000

$9,97

Unit Price

KEY

09421-04004-000 0942104004000

$6,97

Unit Price

SHAFT, IDLER

12716-06G00-000 1271606G00000

$112,97

Unit Price

SPR MOUNT DRUM NUT

09140-16001-000

09140-16005-000

$6,97

Unit Price

SHIM (16X26X1.5)

09181-16212-000 0918116212000

$4,97

Unit Price

BEARING
BEARING, RH

08112-63030-000 0811263030000

$22,97

Unit Price

BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000 0926225006000

$37,97

Unit Price

RETAINER
RETAINER, BEARING

24741-20A00-000 2474120A00000

$4,97

Unit Price

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

SPROCKET, IDLER NO.1

12731-06G01-000 1273106G01000

$92,97

Unit Price

SHIM (15X24X0.9)

09181-15164-000 0918115164000

$5,97

Unit Price

SHIM (15X24X1)

09181-15166-000 0918115166000

$5,97

Unit Price

SHIM (15X24X1.1)

09181-15172-000 0918115172000

$5,97

Unit Price

SHIM (15X24X1.2)

09181-15176-000 0918115176000

$5,97

Unit Price

SHIM (15X24X1.3)

09181-15181-000 0918115181000

$5,97

Unit Price

SHIM (15X24X1.4)

09181-15182-000 0918115182000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

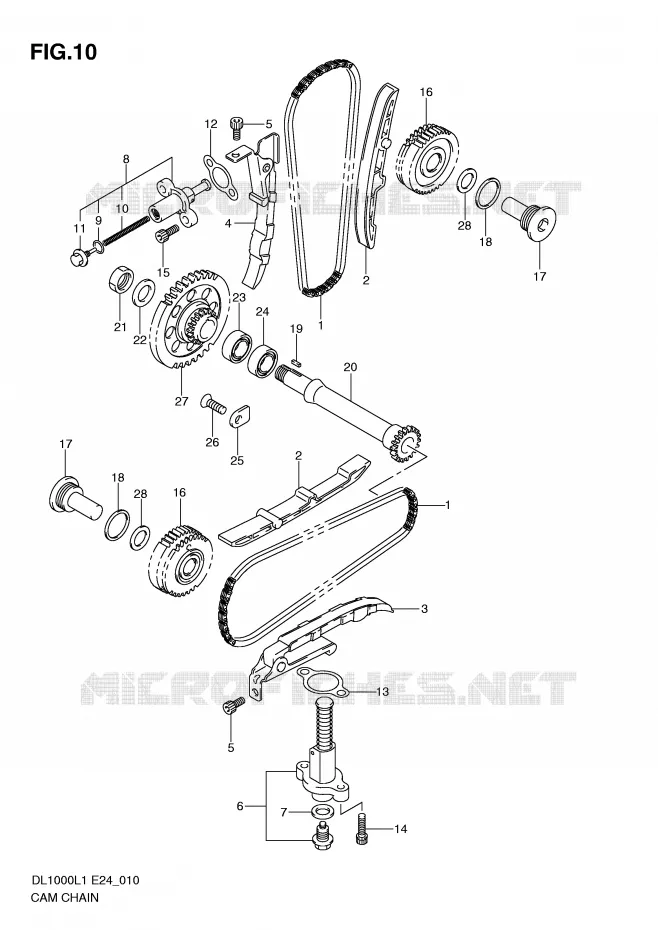

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki of V-STROM. Let us know if you have any questions.
