KNUCKLE COVERS

REAR FEDNER FOR SUZUKI V-STROM 1000 2012

FAIRING

Item numbers

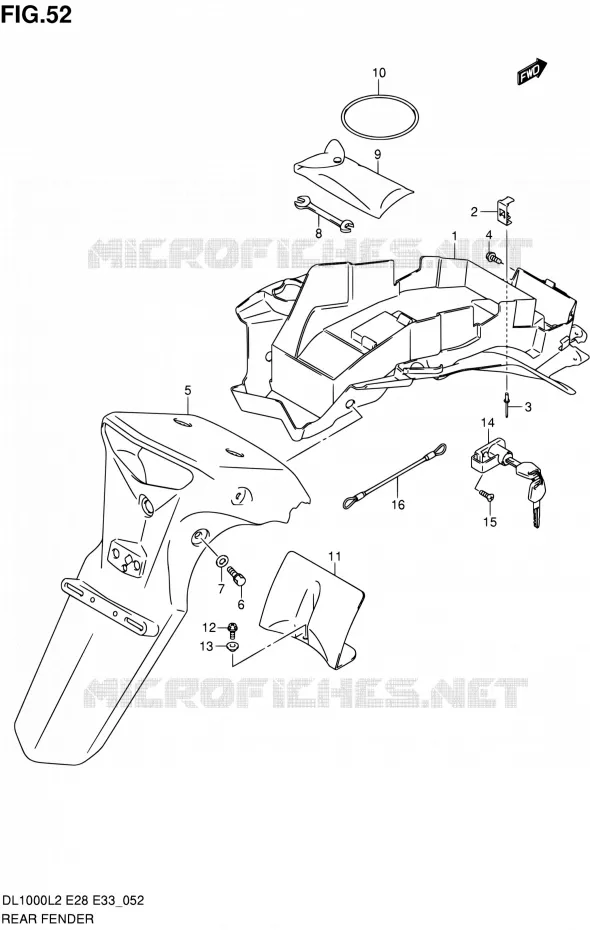

REAR FEDNER Suzuki MOTO 1000 V-STROM 2012 DL1000L2(E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
FENDER, RR FR
FENDER, REAR FRONT

63111-06G10-000   6311106G10000

6311106G10000

Unit Price

2
BRACKET, FUEL CUT SENSOR

47412-06G01-000   4741206G01000

4741206G01000

Unit Price

3
RIVET
RIVET

09229-04020-000   0922904020000

0922904020000

Unit Price

4
BOLT (6X12)

09116-06210-000   0911606210000

0911606210000

Unit Price

5
FENDER, RR RR
FENDER, REAR (BLACK)

63112-06G10-291   6311206G10291

6311206G10291

Unit Price

6
BOLT
BOLT

01547-0612B-000   015470612B000

015470612B000

Unit Price

7
WASHER, 6.5X18X1
WASHER (6.5X18X1.6)

09160-06156-000   0916006156000

0916006156000

Unit Price

8
OPEN SPANNER (8X10)

09813-00027-000   0981300027000

0981300027000
Not available
9
DISCONTINUE
TOOL ASSY

09800-21035-000  

0980021035000
Not available
10
O RING (D:3.5, ID:62.6)

09280-63003-000  

0928063003000
Not available
11
MUDGUARD,RR FENDER FR LWR<br />MUD GUARD, REAR FENDER LOWER
MUDGUARD, RR FENDER FR LWR
MUD GUARD, REAR FENDER LOWER

63421-19F00-000   6342119F00000

6342119F00000

Unit Price

12
BOLT
BOLT

02162-0616B-000   021620616B000

021620616B000

Unit Price

13
WASHER
WASHER

09169-06071-000   0916906071000

0916906071000

Unit Price

14
LOCK SET, HELMET
LOCK ASSY, HELMET

95700-42820-000   9570042820000

9570042820000

Unit Price

15
SCREW
SCREW

02122-0620B-000   021220620B000

021220620B000

Unit Price

16
DISCONTINUE
CABLE, HELMET LOCK

95740-06G00-000  

9574006G00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FEDNER of your Suzuki of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2012

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 V-STROM 2012

Select your Suzuki 2012 model

1000 V-STROM 2012 DL1000L2(E03,E28,E33)

Suzuki V-STROM

Displacement: 1000 cc
Year: 2012
Model code DL1000L2(E03,E28,E33)
