RADIATOR

RADIATOR HOSE FOR SUZUKI V-STROM 1000 2014

CLUTCH

Item numbers

CAP, RADIATOR (1.1)

17730-14G00-000 1773014G00000

$38,97

Unit Price

HOSE, RADIATOR INLET

17851-31J00-000 1785131J00000

$39,97

Unit Price

HOSE, RADIATOR OUTLET

17852-31J00-000 1785231J00000

$35,97

Unit Price

CLAMP

09402-28513-000 0940228513000

$11,97

Unit Price

CLAMP, WATER HOSE
CLAMP

09402-35501-000 0940235501000

$12,97

Unit Price

HOSE, CONNECTOR INLET

17853-02F10-000 1785302F10000

$13,97

Unit Price

UNION, CONNECTOR HOSE

17890-06G20-000 1789006G20000

$20,97

Unit Price

UNION, CONNECTOR HOSE

17890-06G20-000 1789006G20000

$20,97

Unit Price

O RING

09280-18008-000

09280-18009-000

$14,97

Unit Price

BOLT

07130-0612A-000 071300612A000

$4,97

Unit Price

TANK ASSY, RESERVOIR

17910-31J00-000 1791031J00000

$53,97

Unit Price

CAP, WATER RESERVOIR TANK
.CAP

17931-31J00-000 1793131J00000

$9,97

Unit Price

BOLT
BOLT (6X12)

09111-06085-000 0911106085000

$7,97

Unit Price

17982-06L00
HOSE, RESERVOIR TANK OVFL

17982-31J00-000 1798231J00000

Not available

CLIP

09401-08411-000

Not available

HOSE, RSVR TANK INLET
HOSE, RESERVOIR TANK INLET

17981-31J00-000 1798131J00000

$17,97

Unit Price

CONNECTOR, THERMOSTAT INLET

17662-02F11-000 1766202F11000

$57,97

Unit Price

THERMOSTAT COMP, WATER

17670-06G50-000

17670-06G51-000

$30,97

Unit Price

CAP, THERMOSTAT CONNECTOR

17663-42E00-000 1766342E00000

$53,97

Unit Price

BOLT

01550-0616A-000 015500616A000

$4,97

Unit Price

HOSE, WATER BYPASS

17856-16G10-000 1785616G10000

$20,97

Unit Price

CLIP

09401-12409-000

09401-12414-000

$6,97

Unit Price

SENSOR, TEMP
SENSOR, WATER TEMP

13650-49X00-000 1365049X00000

$84,97

Unit Price

WASHER
GASKET (12X17X1)

09168-12017-000 0916812017000

$3,97

Unit Price

BRACKET, RSVR TANK
BRACKET, RESERVOIR TANK

17920-31J00-000 1792031J00000

$14,97

Unit Price

BOLT

01550-0610A-000

01550-0610B-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

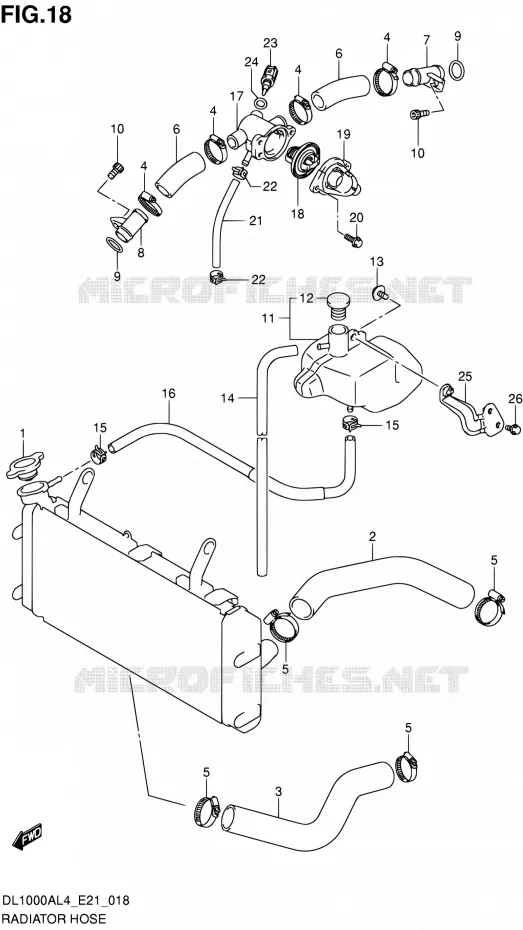

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE of your Suzuki of V-STROM. Let us know if you have any questions.
