HANDGRIPS - LEVERS

SWINGARM FOR SUZUKI V-STROM 1000 2014

FRONT FORK

Item numbers

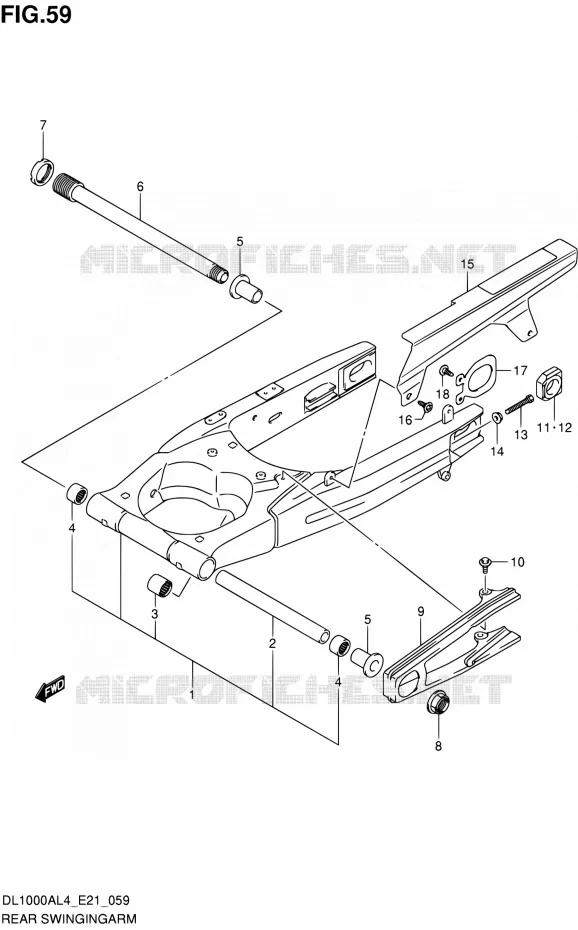

SWINGARM Suzuki MOTO 1000 V-STROM 2014 DL1000A L4 (E21)
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
SWINGINGARM ASSY, REAR
SWINGING ARM ASSY, REAR (BLACK)

61000-31J00-YAP   6100031J00YAP

6100031J00YAP

Unit Price

2
SPACER, RR SWGARM PIVOT CTR
.SPACER (20.8X27.2X196.7)

61281-31J00-000   6128131J00000

6128131J00000

Unit Price

3
BEARING<br />.BEARING (20X27X30)
BEARING
.BEARING (20X27X30)

09263-20070-000   0926320070000

0926320070000

Unit Price

4
BEARING, RR SWGARM PI

09263-27013-000  

09263-27015-000
 0926327013000

Unit Price

5
SPACER, RR SWGARM PIVOT BEARING
SPACER, SWINGING ARM

61251-41G00-000   6125141G00000

6125141G00000

Unit Price

6
SHAFT, RR SWGARM PIVOT
SHAFT, RR SWINGING ARM PIVOT

61211-31J00-000   6121131J00000

6121131J00000

Unit Price

7
NUT, RR SWGARM PIVOT BOLT
NUT, PIVOT SHAFT

61214-42E10-000   6121442E10000

6121442E10000

Unit Price

8
NUT
NUT

09159-20006-000   0915920006000

0915920006000

Unit Price

9
BUFFER, CHAIN TOUCH DEFENSE

61273-31J00-000  

61273-31J01-000
 6127331J00000

Unit Price

10
BOLT
BOLT (6X17.8)

09111-06072-000   0911106072000

0911106072000

Unit Price

11
ADJUSTER, CHAIN RH

61446-40F10-000  

61446-40F00-000
 6144640F10000

Unit Price

12
ADJUSTER, CHAIN LH

61445-40F20-000  

61445-40F00-000
 6144540F20000

Unit Price

13
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

14
NUT

08316-1008A-000   083161008A000

083161008A000

Unit Price

15
CASE, CHAIN

61310-16G00-000   6131016G00000

6131016G00000

Unit Price

16
BOLT (6X12)
BOLT (6X12)

09111-06107-000   0911106107000

0911106107000

Unit Price

17
PLATE, RR SWINGARM BRKT
PLATE, RR SWINGARM BRKT

61124-33E00-000   6112433E00000

6112433E00000

Unit Price

18
SCREW 6X12

09125-06060-000  

02142-06127-000
 0912506060000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki V-STROM 1000 ABS of V-STROM. Let us know if you have any questions.
