Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT ASSY (WITH REFLECTOR)

TAIL LIGHT ASSY (WITHOUT REFLECTOR) FOR SUZUKI V-STROM 1000 2014

WIRING HARNESS

Item numbers

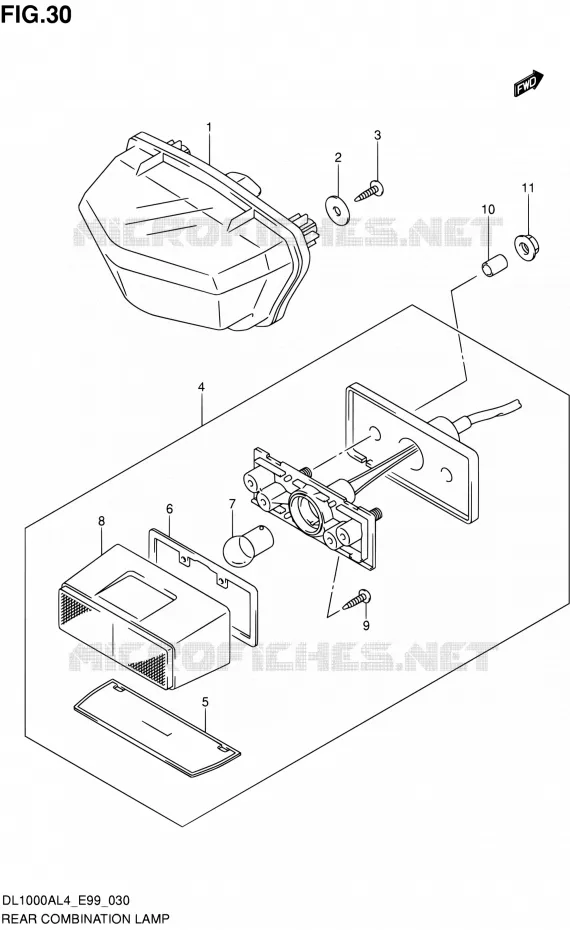

TAIL LIGHT ASSY (WITHOUT REFLECTOR) Suzuki MOTO 1000 V-STROM 2014 DL1000A L4 (E99)
1
2
3
4
5
6
7
8
9
10
11
1
LAMP ASSY, RR COMB

35710-31J00-000  

35710-31J01-000
 3571031J00000

Unit Price

2
WASHER<br />WASHER (5.5X20X1.2)
WASHER
WASHER (5.5X20X1.2)

09160-05501-000   0916005501000

0916005501000

Unit Price

3
SCREW
SCREW

03541-0516A-000   035410516A000

035410516A000

Unit Price

4
LAMP ASSY, LICENSE

35910-41GB0-000   3591041GB0000

3591041GB0000
Not available
5
LENS, LICENSE LAMP
.LENS

35912-41G01-000   3591241G01000

3591241G01000

Unit Price

6
.GASKET

35913-41G00-000   3591341G00000

3591341G00000

Unit Price

7
BULB(12V10W)
.BULB (12V, 5W)

09471-12140-000  

0947112140000
Not available
8
.COVER, LICENSE LAMP

35917-41G00-000   3591741G00000

3591741G00000

Unit Price

9
.SCREW
.SCREW

03211-0416A-000   032110416A000

032110416A000

Unit Price

10
SPACER,6.5X10X7
SPACER, 6.5X10X7

09180-06263-000  

09180-06283-000
 0918006263000

Unit Price

11
NUT

09159-06096-000   0915906096000

0915906096000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT ASSY (WITHOUT REFLECTOR) of your Suzuki of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2014

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 V-STROM 2014

Select your Suzuki 2014 model

1000 V-STROM 2014 DL1000A L4 (E99)
1000 V-STROM 2014 DL1000A L4 (E99)
1000 V-STROM 2014 DL1000A L4 (E99)

Suzuki V-STROM

Displacement: 1000 cc
Year: 2014
Model code DL1000A L4 (E99)
