TAIL LIGHT

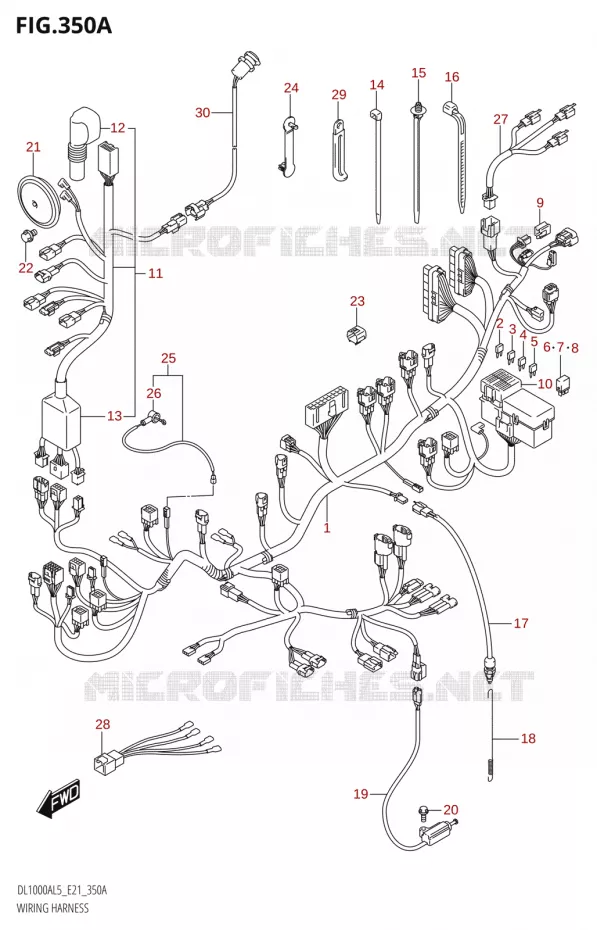

WIRING HARNESS FOR SUZUKI V-STROM 1000 2015

LOCK SET FOR PANNIR CASE

Item numbers

HARNESS, WIRING NO.1

36610-31J60-000 3661031J60000

Not available

.FUSE(3A)

09481-03501-000 0948103501000

$3,97

Unit Price

FUSE, LOW PROFILE
.FUSE(10A)

09481-10504-000 0948110504000

$2,97

Unit Price

FUSE, LOW
.FUSE(15A)

09481-15504-000 0948115504000

$2,97

Unit Price

.FUSE(25A)

09481-25504-000

Not available

.RELAY ASSY

38860-76F01-000 3886076F01000

$40,97

Unit Price

.RELAY ASSY

38860-76F01-000 3886076F01000

$40,97

Unit Price

.RELAY ASSY

38860-76F01-000 3886076F01000

$40,97

Unit Price

.CONNECTOR, SHORT

36852-31J00-000 3685231J00000

Not available

.CAP ASSY, FUSE BOX

36717-31J00-000 3671731J00000

Not available

HARNESS, WIRING NO.2

36620-31J00-000

36620-31J01-000

$294,97

Unit Price

.COVER, CONNECTOR

36618-41G00-000 3661841G00000

$9,97

Unit Price

.COVER, CONNECTOR

36618-18G10-000

Not available

CLAMP
CLAMP(L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

CLAMP
CLAMP(L:154)

09407-17403-000 0940717403000

$8,97

Unit Price

BAND, WIRING HARNESS
CLAMP(L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-31D00-000 3774031D00000

$32,97

Unit Price

SPRING, STOP LAMP SWITCH

43259-31J00-000 4325931J00000

$8,97

Unit Price

SWITCH ASSY, SIDE STAND

37840-24F00-000

37840-24F02-000

$100,97

Unit Price

BOLT(8X35)

09103-08357-000 0910308357000

$5,97

Unit Price

HORN ASSY

38500-41F50-000 3850041F50000

$81,97

Unit Price

BOLT

01550-0612B-000 015500612B000

$3,97

Unit Price

CAP, TS

36654-06J20-000

36654-06J21-000

$18,97

Unit Price

CLAMP(L:63)

36651-48E00-000 3665148E00000

$4,97

Unit Price

DISCONTINUE
WIRE, OIL PRESSURE SWITCH LEAD

36851-31J02-000

Not available

.CAP, OIL PRESSURE SWITCH

36618-31J00-000 3661831J00000

$4,97

Unit Price

WIRE, REAR TURNSIGNAL LEAD

36856-31J00-000

Not available

WIRE, REAR COMB LEAD

36854-31J00-000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

TERMINAL, POWER SOURCE

38850-31J00-000 3885031J00000

$77,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki V-STROM 1000 ABS of V-STROM. Let us know if you have any questions.
