CYLINDER

CASING FOR SUZUKI V-STROM 1000 2015

CASING

Item numbers

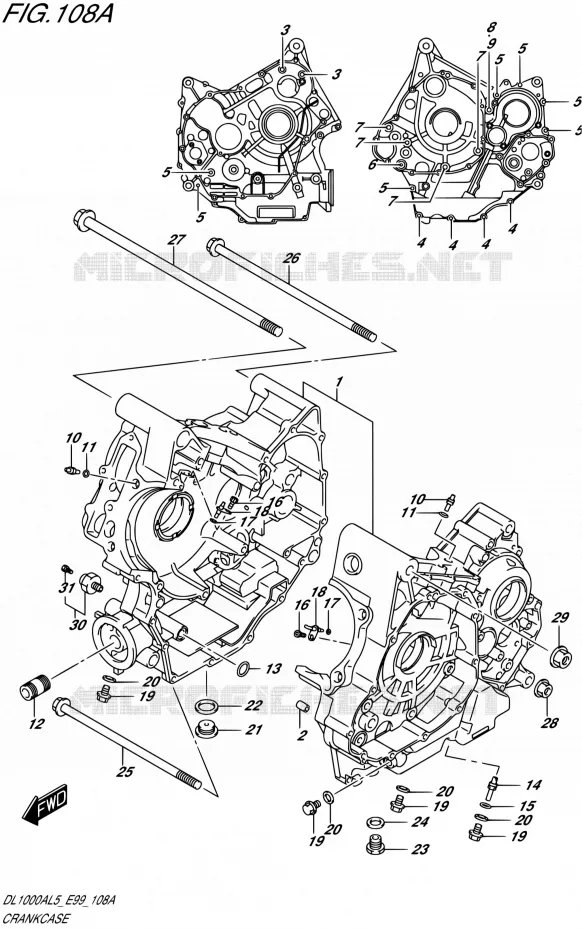

CASING Suzuki MOTO 1000 V-STROM 2015 DL1000A L5 (E99)
1
2
3
3
4
4
4
4
5
5
5
5
5
5
5
6
7
7
7
7
8
9
10
10
11
11
12
13
14
15
16
16
17
17
18
18
19
19
19
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
1
CRANKCASE SET

11306-06830-000  

11306-06831-000
 1130606830000

Unit Price

2
PIN,CRANKCASE<br />.PIN
PIN, CRANKCASE
.PIN

11319-33E00-000   1131933E00000

1131933E00000

Unit Price

3
.BOLT (8X110)
.BOLT (8X110)

09106-08142-000   0910608142000

0910608142000

Unit Price

4
.BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

5
.BOLT

01547-0670A-000   015470670A000

015470670A000

Unit Price

6
.BOLT

01547-0685A-000   015470685A000

015470685A000

Unit Price

7
.BOLT

07120-0890A-000   071200890A000

071200890A000

Unit Price

8
.BOLT (8X125)

09106-08136-000   0910608136000

0910608136000

Unit Price

9
.WASHER
.WASHER

08322-0108A-000  

083220108A000
Not available
10
JET,OIL<br />.JET AIR(14)
JET, OIL
.JET AIR(14)

09493-28010-000   0949328010000

0949328010000

Unit Price

11
O RING<br />.O RING (D:1.2,ID:4)
O RING
.O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

12
UNION,OIL STAND<br />.UNION, OIL FILTER STAND
UNION, OIL STAND
.UNION, OIL FILTER STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

13
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

14
JET, OIL GALLERY
JET, OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

15
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

16
BOLT (6X12)
BOLT (6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

17
O RING (D:1.2,ID:4.7)
O RING (D:1.2, ID:4.7)

09280-05007-000   0928005007000

0928005007000

Unit Price

18
JET, PISTON COOLING

11390-06G10-000   1139006G10000

1139006G10000

Unit Price

19
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

20
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

21
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

22
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

23
PLUG, OIL DRAIN
PLUG (14X20)

09247-14036-000   0924714036000

0924714036000

Unit Price

24
GASKET,13.8X18.8X0.4<br />GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

25
BOLT (10X225)
BOLT (10X225)

09103-10205-000   0910310205000

0910310205000

Unit Price

26
BOLT (10X265)
BOLT (10X265)

09103-10226-000   0910310226000

0910310226000

Unit Price

27
BOLT (12X300)

09103-12016-000   0910312016000

0910312016000

Unit Price

28
NUT
NUT

08319-3110A-000   083193110A000

083193110A000

Unit Price

29
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

30
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

31
BOLT, OIL PRESSURE SWITCH
.BOLT

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki of V-STROM. Let us know if you have any questions.
