CARRIER

FOOTREST FOR SUZUKI V-STROM 1000 2016

REAR FAIRING

Item numbers

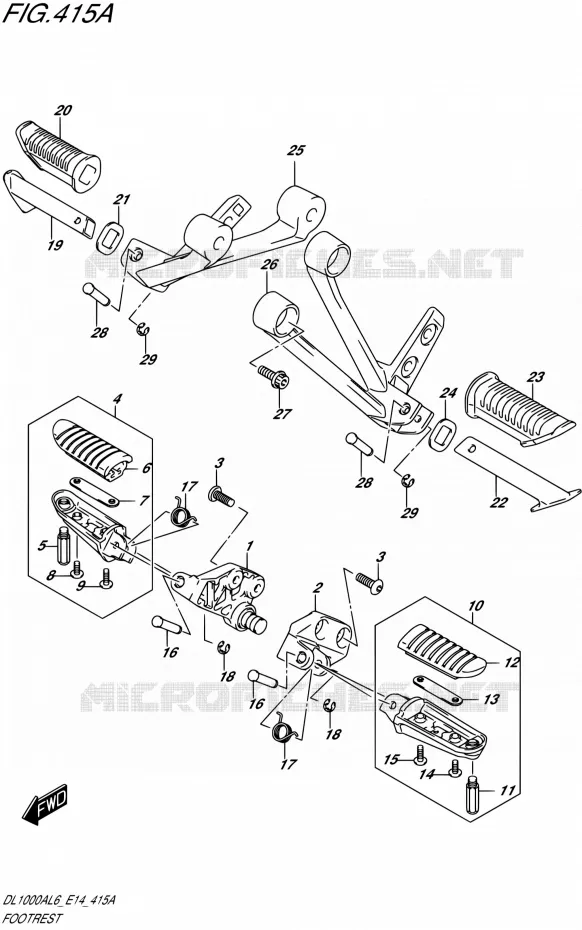

FOOTREST Suzuki MOTO 1000 V-STROM 2016 DL1000A L6 (E14)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
28
29
29
1
BRACKET, FR FOOTREST, R

43510-06G01-YAP  

43510-06G10-YAP
 4351006G01YAP

Unit Price

2
BRACKET, FR FOOTREST, L

43521-06G01-YAP  

43521-06G11-YAP
 4352106G01YAP

Unit Price

3
BOLT
BOLT (8X23)

09106-08150-000   0910608150000

0910608150000

Unit Price

4
FOOTREST ASSY, FRONT, R
FOOTREST ASSY, FRONT RH

43501-31J00-000   4350131J00000

4350131J00000

Unit Price

5
.SENSOR, FOOTREST

43576-31J00-000   4357631J00000

4357631J00000

Unit Price

6
RUBBER, FOOTREST
.RUBBER

43551-06G00-000   4355106G00000

4355106G00000

Unit Price

7
PLATE, FR FOOTREST RUBBER
.PLATE

43552-06G00-000   4355206G00000

4355206G00000

Unit Price

8
SCREW

02142-0516A-000  

02142-0516B-000
 021420516A000

Unit Price

9
.SCREW

02142-0520A-000   021420520A000

021420520A000

Unit Price

10
FOOTREST ASSY, FRONT, L
FOOTREST ASSY, FRONT LH

43502-31J00-000   4350231J00000

4350231J00000

Unit Price

11
.SENSOR, FOOTREST

43576-31J00-000   4357631J00000

4357631J00000

Unit Price

12
RUBBER, FOOTREST
.RUBBER

43551-06G00-000   4355106G00000

4355106G00000

Unit Price

13
PLATE, FR FOOTREST RUBBER
.PLATE

43552-06G00-000   4355206G00000

4355206G00000

Unit Price

14
SCREW

02142-0516A-000  

02142-0516B-000
 021420516A000

Unit Price

15
.SCREW

02142-0520A-000   021420520A000

021420520A000

Unit Price

16
PIN

09208-08019-000   0920808019000

0920808019000

Unit Price

17
SPRING
SPRING

09448-18022-000   0944818022000

0944818022000

Unit Price

18
E RING
E RING

08332-1106A-000  

08332-1106B-000
 083321106A000

Unit Price

19
BAR, PILLION FOOTREST RH

43610-34A00-000  

43610-34A60-000
 4361034A00000

Unit Price

20
RUBBER, PILLION FOOTREST

43612-33G01-000  

43612-33G30-000
 4361233G01000

Unit Price

21
WASHER
WASHER, FOOTREST RUBBER

43631-31J00-000   4363131J00000

4363131J00000

Unit Price

22
BAR, PILLION FOOTREST LH

43710-34A00-000  

43710-34A60-000
 4371034A00000

Unit Price

23
RUBBER, PILLION FOOTREST

43612-33G01-000  

43612-33G30-000
 4361233G01000

Unit Price

24
WASHER
WASHER, FOOTREST RUBBER

43631-31J00-000   4363131J00000

4363131J00000

Unit Price

25
BRACKET, PILLION FOOTREST, R
BRACKET, PILLION RH (SILVER)

43811-31J00-YD8   4381131J00YD8

4381131J00YD8

Unit Price

26
BRACKET, PILLION FOOTREST, L
BRACKET, PILLION LH (SILVER)

43821-31J00-YD8   4382131J00YD8

4382131J00YD8

Unit Price

27
BOLT, MUF SPRT
BOLT (8X30)

09106-08193-000   0910608193000

0910608193000

Unit Price

28
PIN
PIN

09208-06007-000   0920806007000

0920806007000

Unit Price

29
RING

08332-1104A-000  

08332-1104B-000
 083321104A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki V-STROM 1000 ABS of V-STROM. Let us know if you have any questions.
