Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

CASING FOR SUZUKI V-STROM 1000 2016

CRANKSHAFT

Item numbers

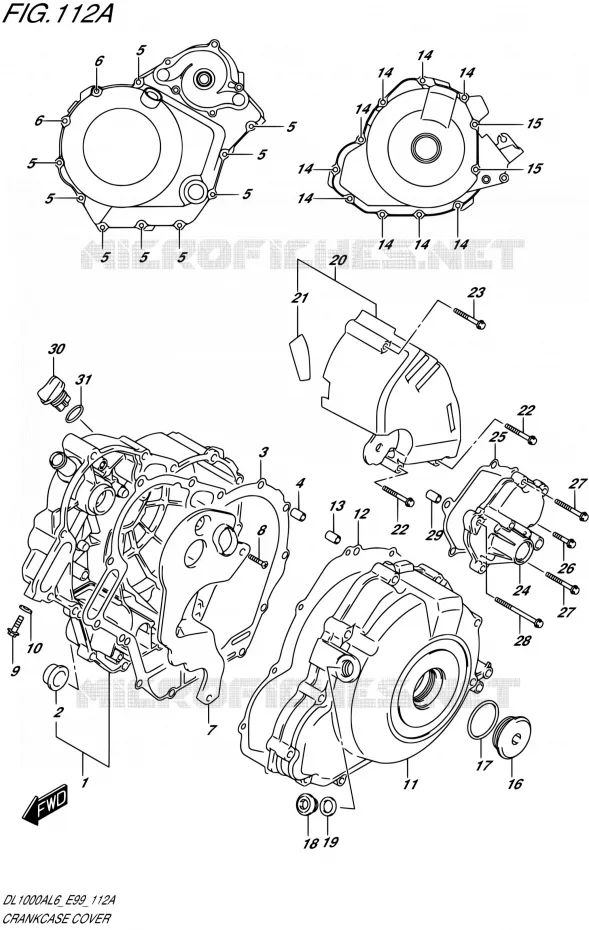

CASING Suzuki MOTO 1000 V-STROM 2016 DL1000A L6 (E99)
1
2
3
4
5
5
5
5
5
5
5
5
5
6
6
7
8
9
10
11
12
13
14
14
14
14
14
14
14
14
14
15
15
16
17
18
19
20
21
22
22
23
24
25
26
27
27
28
29
30
31
1
COVER, CLUTCH

11340-06G40-000   1134006G40000

1134006G40000

Unit Price

2
.LENS, OIL LEVEL CHECK
.LENS, OIL LEVEL CHECK

11971-33210-000   1197133210000

1197133210000

Unit Price

3
GASKET, CLUTCH COVER

11482-06G10-000   1148206G10000

1148206G10000

Unit Price

4
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

5
BOLT, CL COV/MAG COV,
BOLT (6X30)

09103-06213-000   0910306213000

0910306213000

Unit Price

6
BOLT, CLUTCH COVER(L7
BOLT (6X75)

09103-06257-000   0910306257000

0910306257000

Unit Price

7
SEPARATOR, OIL

11342-06G00-000   1134206G00000

1134206G00000

Unit Price

8
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

9
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

10
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

11
COVER, MAGNETO

11351-31J10-000  

11351-31J11-000
 1135131J10000

Unit Price

12
GASKET, MAGNETO COVER
GASKET, MAGNETO COVER

11483-02F10-000   1148302F10000

1148302F10000

Unit Price

13
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

14
BOLT, ST CL COV/ST ID
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price

15
BOLT (6X80)

09103-06263-000   0910306263000

0910306263000

Unit Price

16
PLUG

09259-36027-000   0925936027000

0925936027000

Unit Price

17
O-RING,CRANK SHAFT<br />O RING (D:3.1,ID:32.7)
O-RING, CRANK SHAFT
O RING (D:3.1, ID:32.7)

09280-33004-000   0928033004000

0928033004000

Unit Price

18
09248-14011
PLUG (14X12)

09248-14012-000  

0924814012000
Not available
19
GASKET,13.8X18.8X0.4<br />GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

20
COVER, ENG SPROCKET
COVER, ENGINE SPROCKET

11360-31J00-000   1136031J00000

1136031J00000

Unit Price

21
.SHEET, SPROCKET COVER

11362-31J00-000   1136231J00000

1136231J00000

Unit Price

22
BOLT, ST CL COV/ST ID
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price

23
BOLT (6X60)

09103-06261-000   0910306261000

0910306261000

Unit Price

24
COVER, GEAR SHIFT

11381-06G00-000   1138106G00000

1138106G00000

Unit Price

25
GASKET,GEAR SHIFT COVER<br />GASKET
GASKET, GEAR SHIFT COVER
GASKET

11485-02F10-000   1148502F10000

1148502F10000

Unit Price

26
BOLT (6X105)

09103-06314-000   0910306314000

0910306314000

Unit Price

27
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

28
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

29
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

30
PLUG,ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

31
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki V-STROM 1000 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2016

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 V-STROM 2016

Select your Suzuki 2016 model

1000 V-STROM 2016 DL1000A L6 (E99)
1000 V-STROM 2016 DL1000A L6 (E99)

V-STROM 1000 ABS

Suzuki V-STROM

Displacement: 1000 cc
Year: 2016
Model code DL1000A L6 (E99)
