Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

IGNITION

BATTERY FOR SUZUKI V-STROM 1000 2019

ELECTRICAL

Item numbers

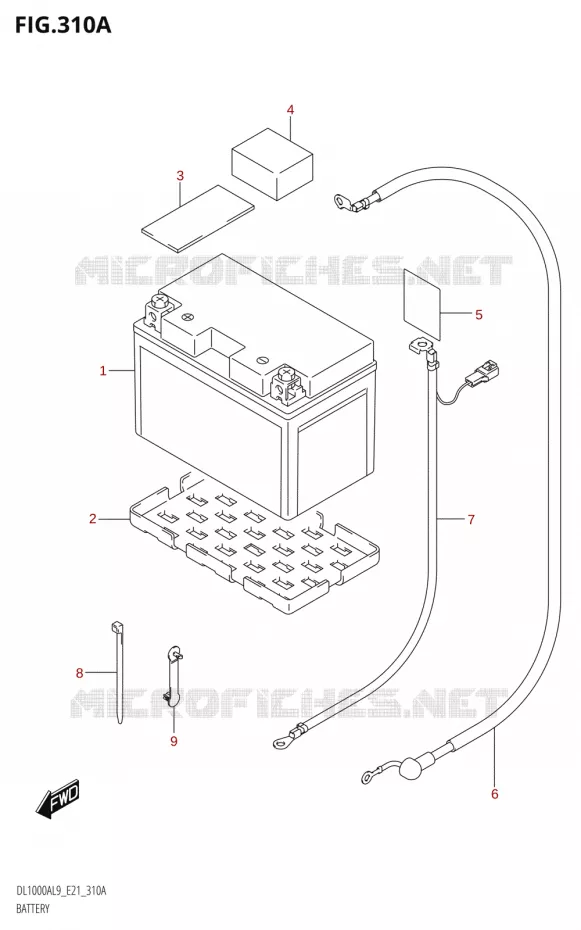

BATTERY Suzuki MOTO 1000 V-STROM 2019 DL1000XA L9 (E21)
1
2
3
4
5
6
7
8
9
1
BATTERY ASSY(FTZ14S, 12V11.2AH)
BATTERY ASSY(FTZ14S, 12V/11.2AH)

33620-31J01-000   3362031J01000

3362031J01000

Unit Price

2
PROTECTOR, BATTERY

33652-16G00-000   3365216G00000

3365216G00000

Unit Price

3
PROTECTOR
PROTECTOR(40X85X3)

33652-28C00-000   3365228C00000

3365228C00000

Unit Price

4
PROTECTOR, BATTERY

33652-31J00-000   3365231J00000

3365231J00000
Not available
5
CUSHION(50X42X2.0)

51553-15D40-000   5155315D40000

5155315D40000

Unit Price

6
WIRE, STARTER MOTOR LEAD

33810-31J10-000   3381031J10000

3381031J10000
Not available
7
WIRE, BATTERY MINUS LEAD

33860-31J10-000   3386031J10000

3386031J10000
Not available
8
CLAMP<br />CLAMP(L:145)
CLAMP
CLAMP(L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

9
CLAMP(L:63)
CLAMP(L:63)

36651-48E00-000   3665148E00000

3665148E00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the BATTERY of your Suzuki V-STROM 1000XT of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 V-STROM 2019

Select your Suzuki 2019 model

Color : Champion Yellow No. 2 (YU1)
1000 V-STROM 2019 DL1000XA L9 (E21)
Color : Champion Yellow No. 2 (YU1)
1000 V-STROM 2019 DL1000XA L9 (E21)
Color : Pearl Vigor Blue - Pearl Glacier White (AJP)
1000 V-STROM 2019 DL1000XA L9 (E21)
Color : Glass Sparkle Black (YVB)

V-STROM 1000XT

Suzuki V-STROM

Displacement: 1000 cc
Year: 2019
Model code DL1000XA L9 (E21)
Color: Champion Yellow No. 2 (YU1) / Pearl Vigor Blue - Pearl Glacier White (AJP) / Glass Sparkle Black (YVB)
