HANDLEBAR1050RC)

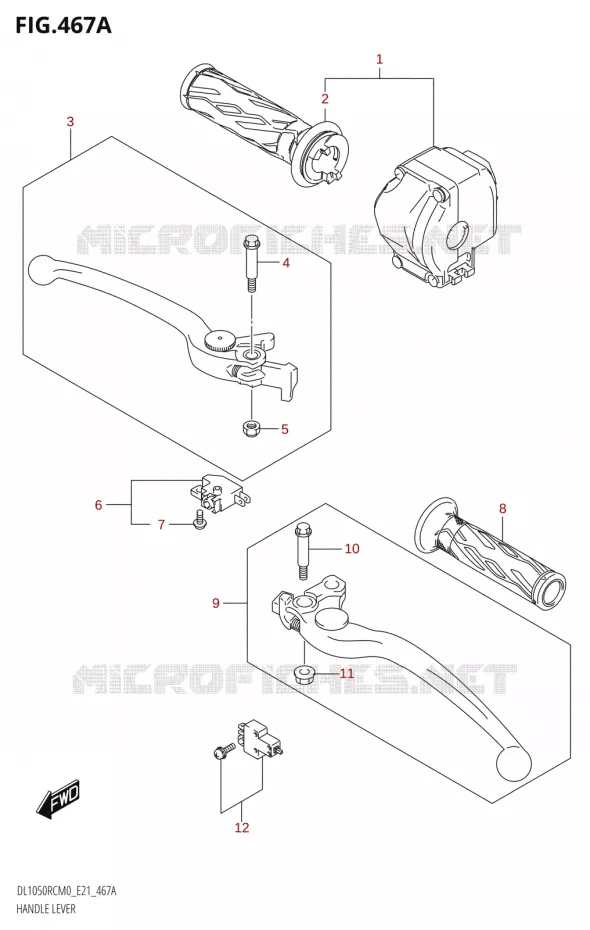

HANDGRIPS - LEVERS L1050RC) FOR SUZUKI V-STROM 1050 2020

HANDGRIPS - LEVERS L1050RQ)

Item numbers

57100-06L01
GRIP ASSY, THROTTLE

57100-06L00-000 5710006L00000

Not available

57110-06L10
.GRIP, THROTTLE

57110-06L00-000 5711006L00000

Not available

LEVER ASSY, FRONT BRAKE

57300-10G40-000 5730010G40000

$91,97

Unit Price

.BOLT, LEVER PIVOT

57431-17H02-000 5743117H02000

$11,97

Unit Price

.NUT

08319-2106A-000 083192106A000

$3,97

Unit Price

SWITCH ASSY, STOP

57460-14J01-000

57460-14J02-000

$36,97

Unit Price

SCREW, WITH WASHER(4X12)
.SCREW

57465-17C00-000 5746517C00000

$3,97

Unit Price

GRIP, L
GRIP LH

57211-21H01-000 5721121H01000

$16,97

Unit Price

LEVER ASSY, CLUTCH

57500-24F40-000 5750024F40000

$89,97

Unit Price

.BOLT, LEVER PIVOT

57431-17H02-000 5743117H02000

$11,97

Unit Price

.NUT

08316-1606B-000 083161606B000

$4,97

Unit Price

SWITCH ASSY, CLUTCH

57560-02FA0-000 5756002FA0000

$22,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDGRIPS - LEVERS L1050RC) of your Suzuki V-STROM 1050 of V-STROM. Let us know if you have any questions.
