LEVERS - HANDGRIPS (DL1050RC)

LEVERS - HANDGRIPS (DL1050RQ) FOR SUZUKI V-STROM 1050 2022

FRONT FORK

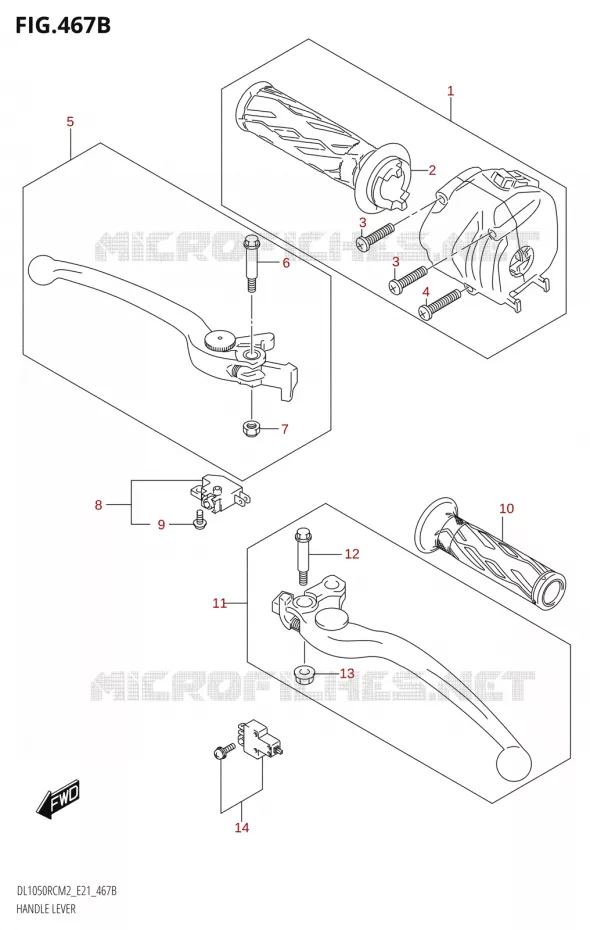

LEVERS - HANDGRIPS (DL1050RQ) Suzuki MOTO 1050 V-STROM 2022 DL1050RC M2 (E21)
1
57100-06L11
GRIP ASSY, THROTTLE

57100-06L10-000   5710006L10000

5710006L10000
Not available
2
57110-06L10
.GRIP, THROTTLE

57110-06L00-000   5711006L00000

5711006L00000
Not available
3
.SCREW
.SCREW

02112-0530B-000   021120530B000

021120530B000

Unit Price

4
.SCREW
.SCREW

02112-0540B-000   021120540B000

021120540B000

Unit Price

5
LEVER ASSY, BRAKE
LEVER ASSY, FR BRAKE

57300-10G32-000   5730010G32000

5730010G32000

Unit Price

6
.BOLT, LEVER PIVOT

57431-17H02-000   5743117H02000

5743117H02000

Unit Price

7
.NUT
.NUT

08319-2106A-000   083192106A000

083192106A000

Unit Price

8
SWITCH ASSY, STOP
SWITCH ASSY, FR BRAKE

57460-14J02-000   5746014J02000

5746014J02000

Unit Price

9
.SCREW,WITH WASHER(4X12)
.SCREW, WITH WASHER(4X12)

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

10
GRIP, L

57211-21H01-000   5721121H01000

5721121H01000

Unit Price

11
LEVER ASSY, CLUTCH

57500-24F22-000   5750024F22000

5750024F22000

Unit Price

12
.BOLT, LEVER PIVOT

57431-17H02-000   5743117H02000

5743117H02000

Unit Price

13
.NUT

08316-1606B-000   083161606B000

083161606B000

Unit Price

14
SWITCH ASSY,CLUTCH
SWITCH ASSY, CLUTCH

57560-02FA0-000   5756002FA0000

5756002FA0000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEVERS - HANDGRIPS (DL1050RQ) of your Suzuki V-STROM 1050XT (RC Jantes rayons ) of V-STROM. Let us know if you have any questions.
