HEADLIGHT

INDICATORS FOR SUZUKI GS 110 2015

TAIL LIGHT ASSY

Item numbers

LAMP ASSY, FRONT TURNSIGNAL RH

35601-26H20-000 3560126H20000

Not available

.LENS, RH

35612-26H00-000 3561226H00000

Not available

.GASKET

35622-26H00-000 3562226H00000

Not available

.BULB (12V10W)

09471-12062-000 0947112062000

Not available

.SCREW

03211-0325B-000 032110325B000

Not available

LAMP ASSY, FRONT TURNSIGNAL LH

35602-26H20-000 3560226H20000

Not available

.LENS, LH

35632-26H00-000 3563226H00000

Not available

.GASKET

35622-26H00-000 3562226H00000

Not available

.BULB (12V10W)

09471-12062-000 0947112062000

Not available

.SCREW

03211-0325B-000 032110325B000

Not available

WASHER
WASHER (10.5X30X2.3)

09160-10501-000 0916010501000

$3,97

Unit Price

NUT

08316-1010A-000 083161010A000

$3,97

Unit Price

LAMP ASSY, REAR TURNSIGNAL RH

35603-26H40-000 3560326H40000

Not available

.LENS, RH

35652-26H00-000 3565226H00000

Not available

.GASKET

35669-26H00-000 3566926H00000

Not available

.BULB (12V10W)

09471-12062-000 0947112062000

Not available

.SCREW

03211-0325B-000 032110325B000

Not available

LAMP ASSY, REAR TURNSIGNAL LH

35604-26H40-000 3560426H40000

Not available

.LENS, LH

35672-26H00-000 3567226H00000

Not available

.GASKET

35669-26H00-000 3566926H00000

Not available

.BULB (12V10W)

09471-12062-000 0947112062000

Not available

.SCREW

03211-0325B-000 032110325B000

Not available

SPACER, RR TURNSIGNAL
SPACER, REAR TURNSIGNAL

35695-17C00-000 3569517C00000

$6,97

Unit Price

WASHER
WASHER (10.5X30X2.3)

09160-10501-000 0916010501000

$3,97

Unit Price

NUT

08310-0010B-000 083100010B000

$3,97

Unit Price

RELAY ASSY, TURNSIGNAL

38610-04H01-000 3861004H01000

Not available

DISCONTINUE
RELAY ASSY, TURNSIGNAL

38610-26H02-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

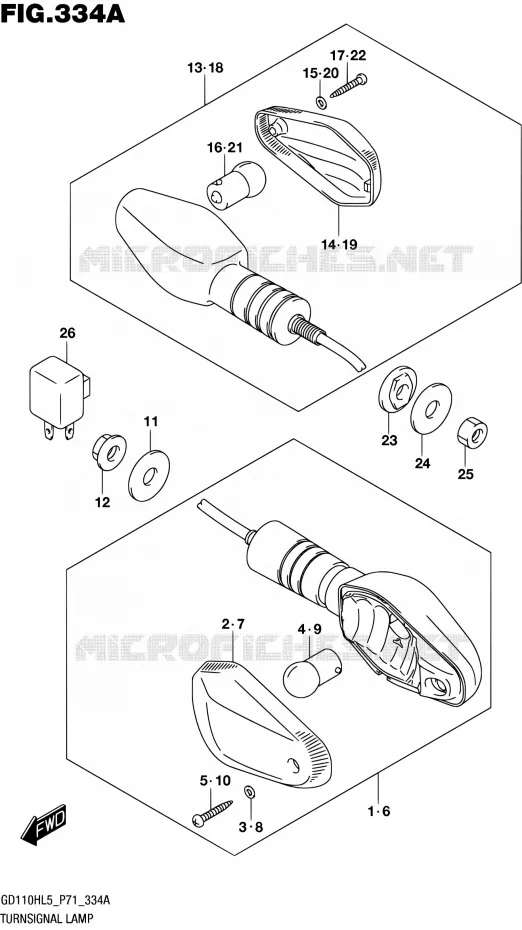

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS of your Suzuki of GS. Let us know if you have any questions.
