CRANKSHAFT

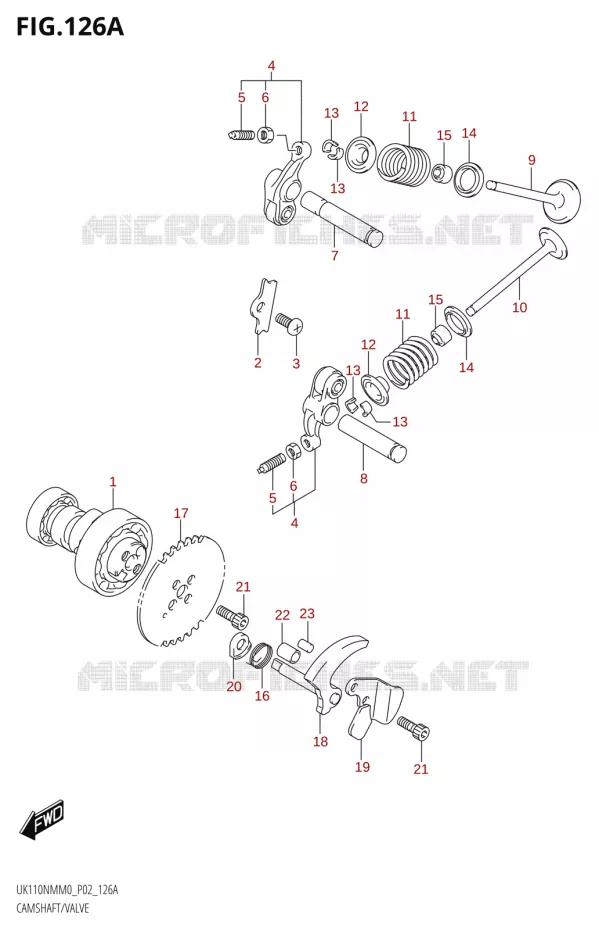

CAMSHAFT - VALVES FOR SUZUKI ADDRESS 110 2020

TIMING

Item numbers

CAMSHAFT

12710-40J00-000 1271040J00000

Not available

RETAINER, CAMSHAFT

12862-09J00-000 1286209J00000

Not available

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

ARM ASSY, VALVE ROCKER

12840-09J00-000 1284009J00000

Not available

ARM ASSY, VALVE ROCKER

12840-09J20-000 1284009J20000

Not available

ARM ASSY, VALVE ROCKER

12840-09J30-000 1284009J30000

Not available

.SCREW, TAPPET ADJUSTING

12842-09J00-000 1284209J00000

Not available

.SCREW, TAPPET ADJUSTING

12842-09J20-000 1284209J20000

Not available

.NUT, TAPPET ADJUSTING

12843-27A00-000 1284327A00000

$4,97

Unit Price

.NUT, TAPPET ADJUSTING

12843-27A80-000 1284327A80000

Not available

SHAFT, VALVE ROCKER ARM INTAKE

12861-40J00-000 1286140J00000

Not available

SHAFT, VALVE ROCKER ARM EXHAUST

12871-40J00-000 1287140J00000

Not available

VALVE, INTAKE

12911-22J00-000 1291122J00000

Not available

VALVE, EXHAUST

12912-22J00-000 1291222J00000

Not available

SPRING, VALVE

12921-09J00-000 1292109J00000

Not available

RETAINER, VALVE SPRING

12931-09G00-000 1293109G00000

Not available

RETAINER, VALVE SPRING

12931-09G20-000 1293109G20000

Not available

COTTER, VALVE

12932-09G00-000 1293209G00000

Not available

SEAT, VALVE SPRING

12933-09G00-000 1293309G00000

Not available

SEAL (4.4X10.5X8.4)

09289-05L01-000 0928905L01000

Not available

SPRING, DECOMP CAM

12725-20G00-000 1272520G00000

Not available

SPROCKET, CAMSHAFT (NT:34)

12741-09J00-000 1274109J00000

Not available

CAM, DECOMPRESSION

12950-09J10-000 1295009J10000

Not available

STOPPER, DECOMP CAM

12954-39J00-000 1295439J00000

Not available

WASHER, DECOMP SHAFT

12955-33G00-000 1295533G00000

Not available

BOLT (5X15)

09106-05028-000 0910605028000

$1,97

Unit Price

PIN (6.3X8X12)

09206-08008-000 0920608008000

$1,97

Unit Price

KNOCK PIN, SPROCKET
PIN (5X8)

09261-05005-000 0926105005000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki ADDRESS 110 of ADDRESS. Let us know if you have any questions.
